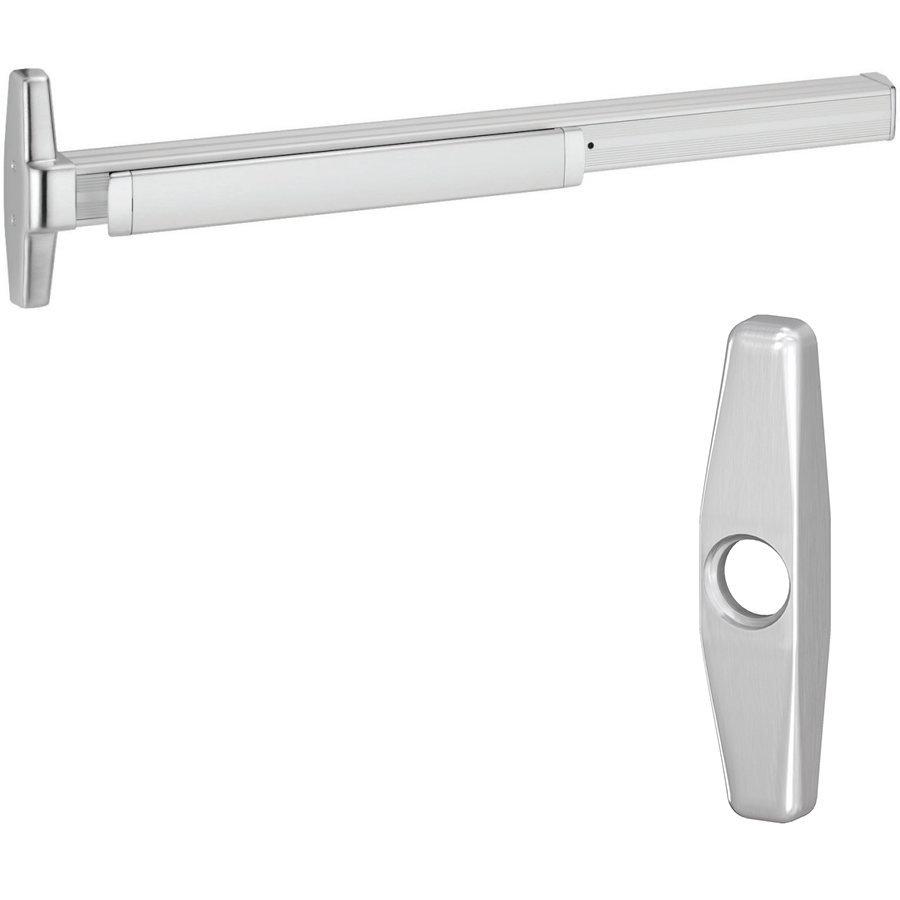

Von Duprin 3549A-NL-OP-626-36X96 Narrow Stile CVC Concealed Vertical Exit Device with Nightlatch Trim, Satin Chrome

Von Duprin 3549A-NL-OP-626-36X96 KIT is a high-performance concealed vertical cable exit device designed to meet the demands of both commercial and security applications. This Grade 1 product features a durable satin chrome finish (626/US26D) that not only enhances aesthetic appeal but also provides long-lasting protection against wear and tear. The device is suitable for doors with widths of 36 inches and adjustable heights up to 96 inches, ensuring versatility across a range of installations. Equipped with hex key dogging for easy operation, the 3549A model includes a NL-OP Nightlatch trim with an optional pull, allowing for key retraction of the latchbolt. Its smooth mechanism case ensures reliable performance, while the stainless steel vertical cables provide added durability and security. The device also features a deadlocking anti-friction latch bolt with a ½ inch throw, enhancing safety during emergency exit situations. Certifications include ANSI A156.3 and UL listings for panic exit hardware, ensuring compliance with safety standards. The non-handed design allows for flexible installation on hollow metal single and double doors with stiles as narrow as 2 1/8 inches. Invest in the Von Duprin 3549A-NL-OP-626-36X96 KIT for a reliable and secure exit solution that combines functionality with modern design.

KIT - Narrow Stile CVC Concealed Vertical Cable Exit Device, 388 NL-OP Nightlatch Trim Optional Pull, 36in x Adjustable up to 96in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

3349A and 3549A for hollow metal single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 (LBL option 2014) grade 1. The 3549A has a smooth mechanism case and the 3349A has grooved case. The concealed vertical cable device is non-handed except when the SS (signal switch) option is used. 3349A/3549A fits door stiles as narrow as 2 1/8" (44 mm). Newly designed device has a one piece center case cover.

Specifications:

• Device Lengths:
• 2' - 2' (610 mm) door size
• 3' - 2'4' to 3' (660mm to 914mm) door size
• 4' - 2'8" to 4' (813mm to 1219mm) door size
• Device Centerline From Finished Floor: 39 13/16" (1006mm)
• Center Case: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
• Mechanism Case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3 13⁄16" (97mm)
• Push bar depressed – 3 1⁄16" (78mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt 1/2" (13mm) throw
• Door Undercut: 3/4" (19mm) maximum
• Top and Bottom Latch Case: 5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
• Vertical Cables: 7/32" (6mm) diameter stainless steel cables
• Fasteners and Sex Bolts (SNB):
• Includes 1 3/4" (44mm) – 2 1/4" (57mm) metal doors
• #425 SNB furnished standard for end case
• #325 SNB furnished standard for EO (exit only device)
• Electrified Options:
• ALK: Alarm exit kit
• CX: Chexit delayed exit
• EL: Electric latch retraction
• ESL: Emergency Secure Lockdown
• HD-EL: Electric latch retraction with hex dogging
• LX: Latch bolt monitor switch. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• LX-RX: Request to exit / latch bolt monitoring. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• QEL: Quiet electric latch retraction
• RX: Request to exit
• WP-RX: Request to exit, waterproof option
• RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• SS: Signal switch
• CON: Allegion Connect
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• HH: Hurricane
• INS-2/INS-4: Insulclad kits 1/2" / 1/4" panels
• LBL: Less bottom latch
• PL: Pullman latch
• PN: Pneumatic
• SEC: Security screws
• SG: Safety glow
• SNB: Sex bolts
• WH: Weep holes
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• LD: Less dogging
• Strikes:
• 249: Top
• 349: Bottom

Trim:

• EO: No Outside Trim, Exit Only
• DT: Dummy Trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim cylinder
• NL-OP: Night Latch, Operational Pull
• Key retracts latchbolt, pull required
• K/L: Lever/Knob
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• L-BE/K-BE: Lever/Knob, Blank Escutcheon
• Always operable (no cylinder)
• TP: Thumbpiece
• Key locks and unlocks
• 1-1/4" mortise cylinder
• TL-BE: - Turn Lever, Blank Escutcheon
• Blank escutcheon always operable (no cylinder)
• TL: Turn Lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TP-BE: Thumbpiece, Blank Escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)
• TL-OP: Turn Lever, Optional Pull

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 622/711 - Matte black/matte black, anodized
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome, antimicrobial
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 630AM - Satin stainless, antimicrobial
• 643e - Aged bronze
• 693 - Black, painted (not flat powder)
• 710 - Dark brown, anodized
