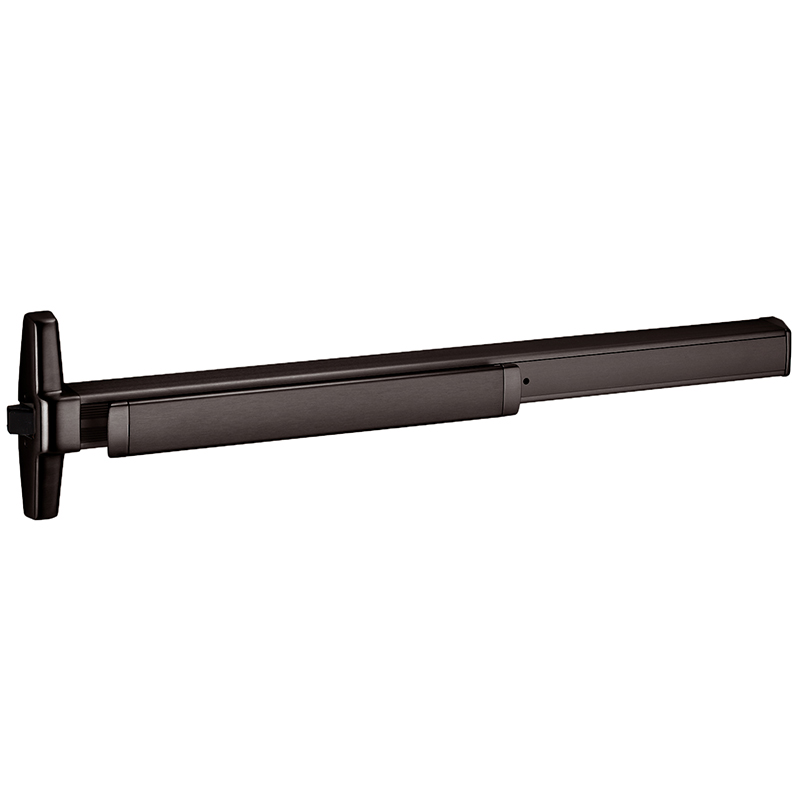

Von Duprin 35AEO 3 313 Grade 1 Narrow Rim Exit Device 710

Von Duprin 35AEO 3 313 Grade 1 Narrow Rim Exit Device offers a reliable solution for emergency exits with its sleek design and sturdy construction. Designed specifically for narrow style applications, this rim exit device is crafted from dark bronze anodized aluminum, providing both durability and aesthetic appeal. It is UL listed for panic exit hardware and complies with ANSI A156.3 - 2001 Grade 1 standards, ensuring top-tier security for all types of single and double doors, including those with mullions. Featuring a non-handed design, the 35A is versatile and easy to install, fitting door stiles as narrow as 1 3/4". The device is available in lengths suitable for door sizes ranging from 2'4" to 4', accommodating various commercial settings. With hex key dogging as standard, it allows for straightforward operation and maintenance. The latch bolt boasts a 3/4" deadlocking throw, providing enhanced security. Center case dimensions of 8 3/16" x 1 9/16" x 2 13/32" ensure a compact fit, while maintaining robust functionality. Ideal for metal or wood doors, the Von Duprin 35AEO 3 is a dependable choice for professionals seeking quality and performance in exit devices.

Grade 1 Narrow Rim Exit 710

Narrow Style, Rim Exit Device, Dark Bronze Anodized Aluminum

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 - 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. The rim device is non-handed except when the SS (Signal Switch) option is used. 33A/35A fits door stiles as narrow as 1 3/4". Hex key dogging standard. Device Lengths: 3' 2'4" to 3', 4' 2'10" to 4'.

Devices are ANSI A156.3 – 2001 Grade 1.

The 35A has a smooth mechanism case and  rim device is non-handed except when the SS (signal switch) option is used.

• Device lengths: 3' 2' 4" to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm)
• Door size: Device centerline from finished floor 39 13/16" (1011 mm) 39 11/16" (1008 mm) with Mullion
• Center case dimensions: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar Neutral – 3 13/16" (97 mm) Pushbar Depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking, 3 /4" (19mm) throw
• Fasteners & sex bolts (SNB): Includes 13 /4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
