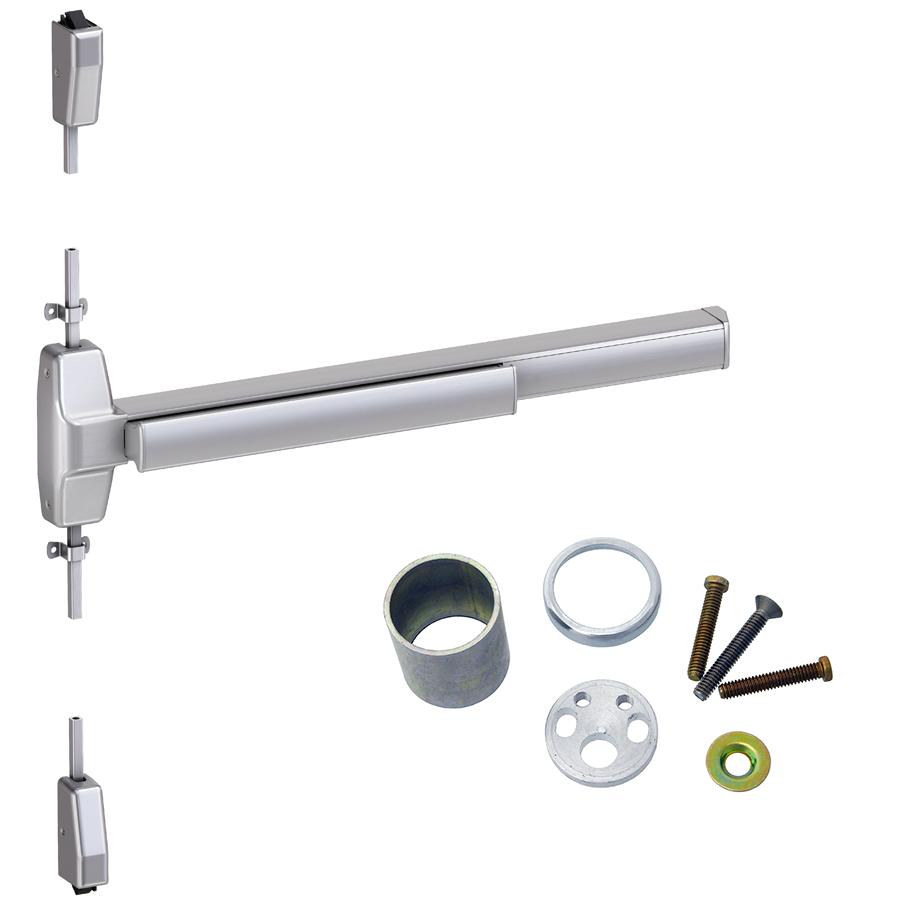

Von Duprin 7827NL-OP-F-626-48 KIT - 78 Series Fire-Rated Exit Device, SVR, 110MD-NL Night Latch, Satin Chrome

Von Duprin 7827NL-OP-F-626-48 KIT is a robust solution designed for maximum security in commercial settings. This 78 Series Wide Stile Fire-Rated Exit Device features surface vertical rods (SVR) and is certified to ANSI/BHMA A156.3 Grade 1 standards, ensuring top-notch performance and reliability. With a fire rating of 180 minutes, it is UL listed for fire exit hardware, making it an ideal choice for emergency egress. The device measures 48 inches in width and accommodates doors with a thickness of 1-3/4 inches. Its deadlocking latch bolt offers a secure 5/8 inch throw, while the centerline from the finished floor is set at 39-13/16 inches, optimized for accessibility. This model includes a 110MD-NL Night Latch Cylinder Assembly, requiring a rim cylinder for operation. Designed with adaptability in mind, the 7827NL-OP allows for field-selectable functions and is available in multiple finishes, including Satin Chrome. Vertical rod and latch guards can be added to protect against impacts from carts or gurneys, enhancing durability. This exit device combines functionality and style, providing a reliable exit solution for both single and double door applications. With the backing of Allegion services and support, the Von Duprin 7827NL-OP-F-626-48 KIT is a trusted choice for building professionals and discerning homeowners alike.

KIT - 78 Series Wide Stile Fire-Rated, SVR (Surface Vertical Rods) Exit Device, 110MD-NL Night Latch Cylinder Assembly (Requires Rim Cylinder), 48in x 84in, No Dogging, Grade 1, 626/US26D Satin Chrome

The 7827-F fire exit surface mounted vertical rod device are certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for fire exit hardware. Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors. Rod and latch guards can be used on hollow metal or tin clad composite fire doors.

Features:

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs, and finishes
• Available in 3' and 4' lengths that are field sizeable for single and double door applications

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Center Case: 7-7/8" x 2-3/4" x 2-3/8" (200mm x 70mm x 60mm)
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Latch bolt: Deadlocking, 5/8" (15.875mm) throw
• Pushbar length:
• 3': 18" (457mm)
• 4': 24" (610mm)
• Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Alarm exit kit
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• Dogging Options: No mechanical dogging
• Strikes:
• 299F/499F LBR: Top—Dull black
• 304L: Bottom, Dull black, Unfinished

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, dummy trim
• Pull when dogged (not recommended for fire device)
• LNL: Lever, night latch
• Key retracts latch bolt
• 1-1/4" mortise cylinder
• Handed, reversible lever
• LBE: Lever, blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Anodized aluminum
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Duranodic dark bronze
