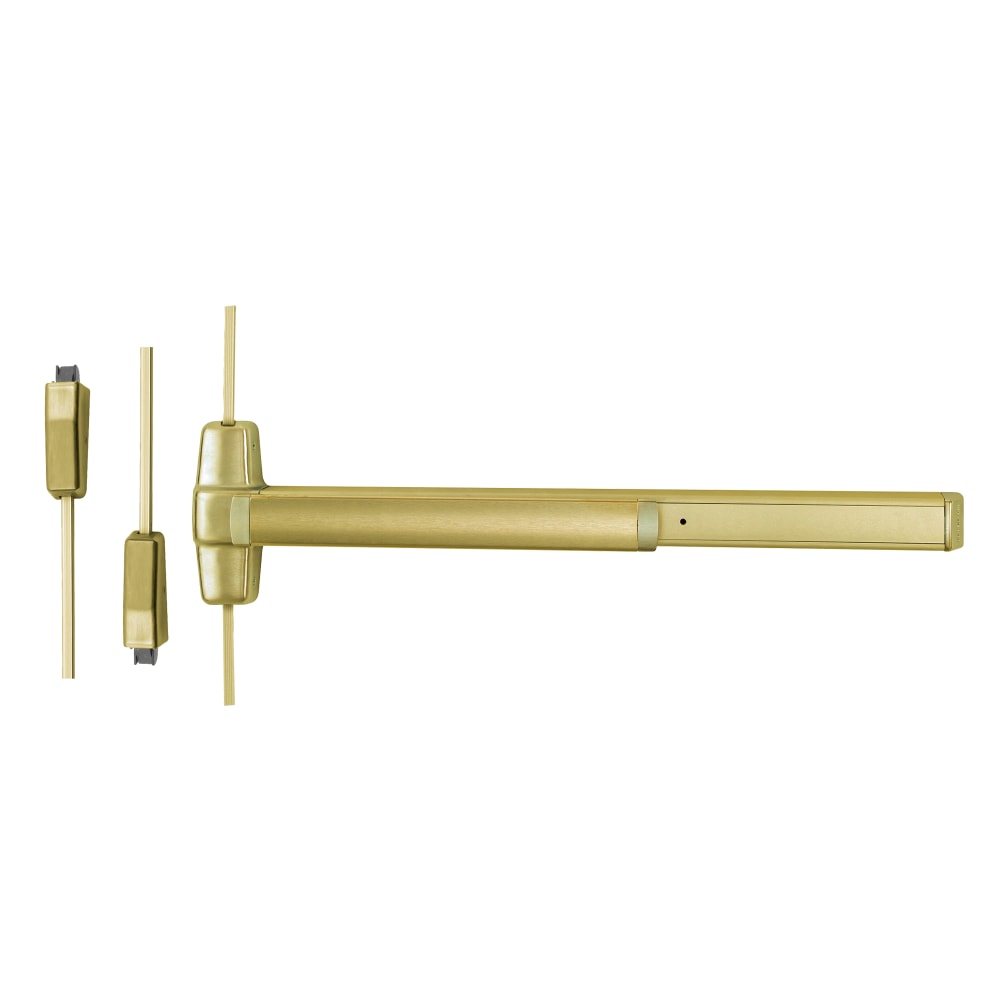

Von Duprin 9827EO 4 US4 Grade 1 SVR Exit Device 606 is a robust solution for ensuring safe and effective egress in commercial spaces. This Grade 1 surface vertical rod exit device features a wide stile pushpad and spans 48 inches, making it suitable for 84-inch doors. Designed for exit-only functionality, it is UL listed for panic exit hardware, providing peace of mind in emergency situations. The 9827 model accommodates both single and double doors, with compatibility for stock hollow metal doors featuring 86 or 161 cutouts. Its durable construction is certified to ANSI/BHMA A156.3 2014, Grade 1 standards, ensuring reliable performance. The device is equipped with hex key dogging for easy operation and is field reversible, allowing for flexible installation. With a deadlocking anti-friction latch bolt and a throw of 5/8 inch, this exit device enhances security. The vertical rods are made from 1/2 inch square tubing and can accommodate doors up to 7 feet tall, with optional extension rods available for taller applications. The satin brass finish (606) adds a touch of elegance while maintaining durability. Choose the Von Duprin 9827EO for a reliable, efficient, and aesthetically pleasing exit solution for your building.
Grade 1 SVR Exit Device 606
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 48" Panic Device, 84" Door Height, Exit Only, Less trim, Hex Key Dogging, Satin Brass Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Covers stock hollow metal doors with 86 or 161 cutouts.
9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 48"
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 34" - 48"
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 49"
Pack Length 2: 50"
Pack Qty: 1
Pack Volume: 2572.5 in³
Pack Volume 2: 9400 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9827 Series Surface Vertical Rod Exit Device
Ship Weight: 20 lbs.
Strike Bottom: 248L4 / 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
