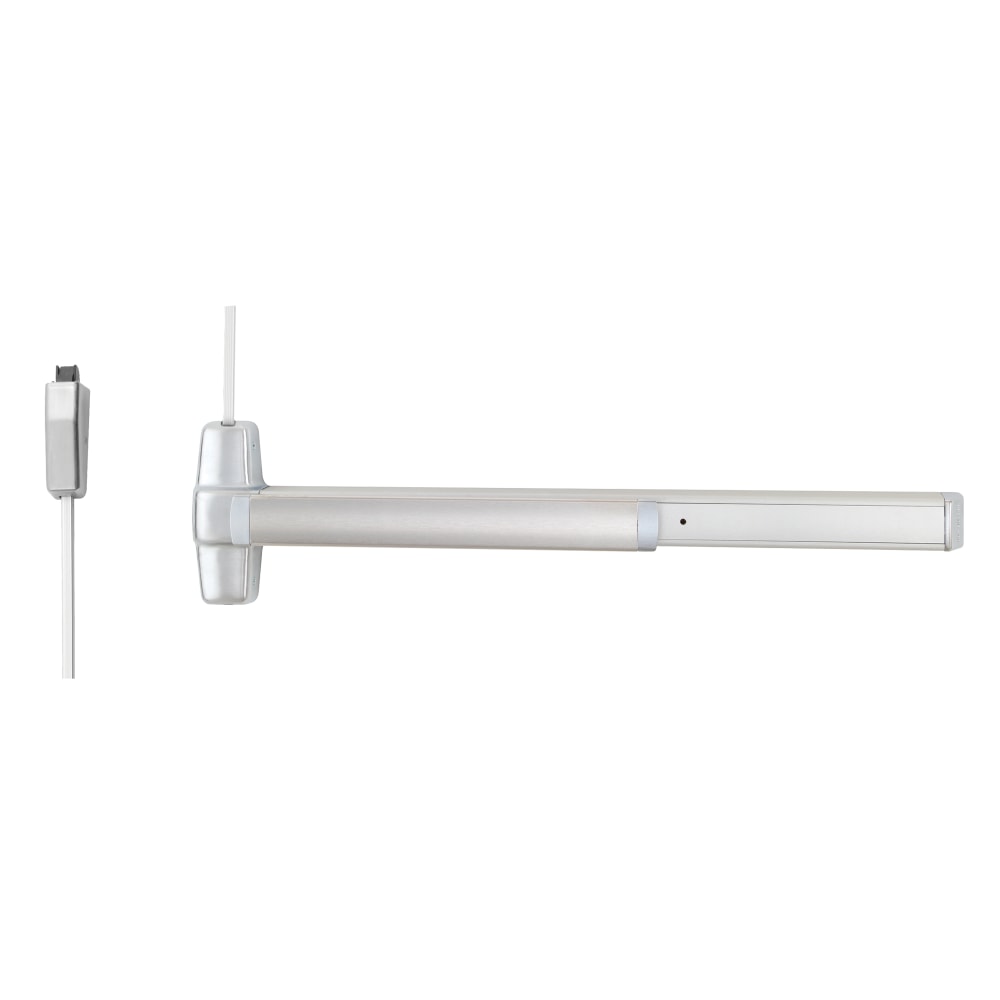

Von Duprin 9827L-06 3 26D LHR LBR Grade 1 SVR Exit Device 626 offers exceptional security and convenience for commercial spaces. This Grade 1 surface vertical rod exit device features a wide stile pushpad, providing easy egress on doors up to 84 inches high. Designed for classroom function, it includes a sleek 06 lever with escutcheon and hex key dogging, ensuring reliable operation while maintaining a polished appearance in satin chrome finish. This UL-listed panic exit hardware is certified to ANSI/BHMA A156.3 2014, Grade 1 standards, making it suitable for all types of single or double doors. The device is field reversible, accommodating various door handing configurations. It is engineered to fit standard hollow metal doors with 86 or 161 cutouts, with a recommended door thickness of 1-3/4 inches. The deadlocking anti-friction top and bottom bolts provide enhanced security, while the 36-inch device length is compatible with standard door widths ranging from 28 to 36 inches. Installation is straightforward, and the device comes with all necessary fasteners for metal or wood doors. Upgrade your exit hardware with the Von Duprin 9827L-06 for a reliable, high-quality solution that meets your building's safety requirements.
Grade 1 SVR Exit Device 626
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Panic Device, 84" Door Height, Classroom Function, 06 Lever with Escutcheon, Less Bottom Rod, Hex Key Dogging, Satin Chrome Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Covers stock hollow metal doors with 86 or 161 cutouts.
9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Classroom
Mechanical Options: Less Bottom Rod
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9827 Series Surface Vertical Rod Exit Device
Ship Weight: 22 lbs.
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Design: Lever with Escutcheon
Trim Part No: 996L-06-R/V 26D
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
