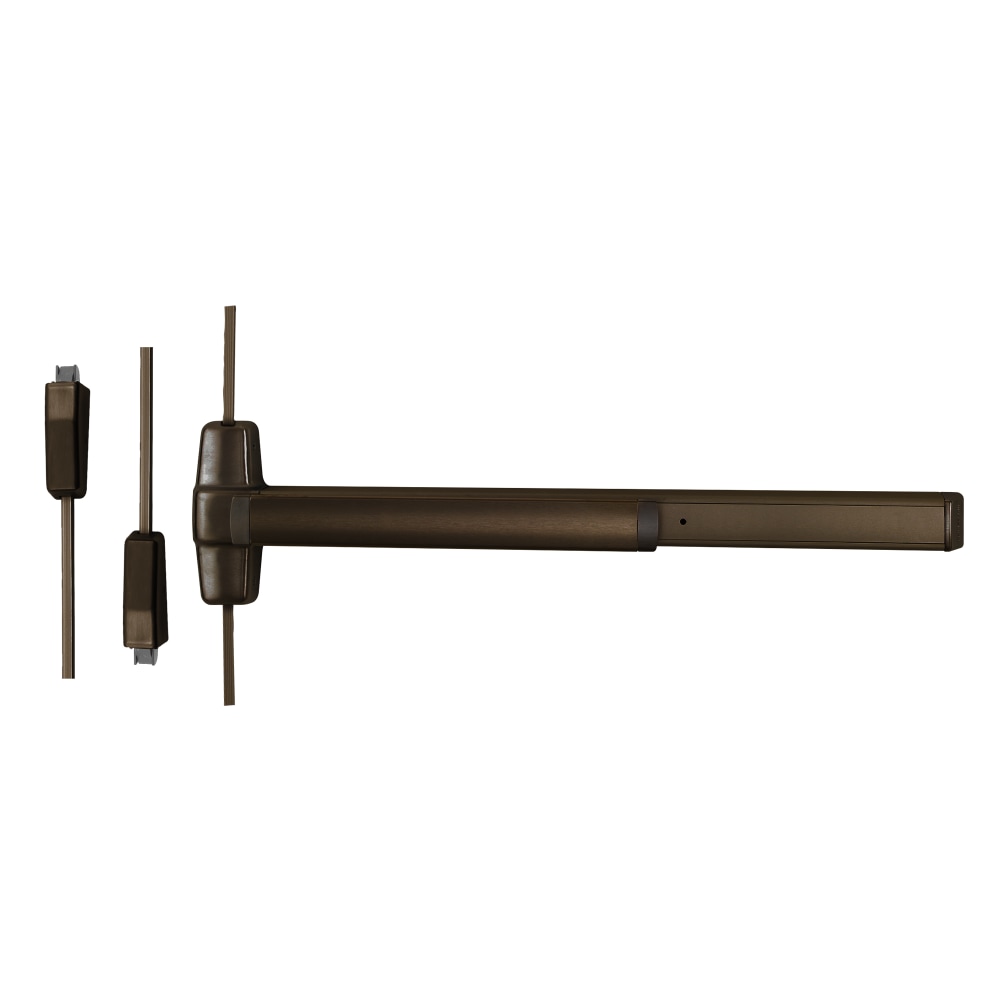

Von Duprin 9827NL-OP 3 313 Grade 1 SVR Exit Device 710 is a robust surface vertical rod exit bar designed for commercial applications, ensuring safety and ease of use. With a wide stile pushpad and a length of 36 inches, this exit device meets the demands of high-traffic areas. It features a night latch function and hex key dogging, making it a versatile choice for both single and double doors. Constructed from dark bronze anodized aluminum, the 9827NL-OP is not only durable but also visually appealing, fitting seamlessly into modern architectural designs. It is UL listed for panic exit hardware and certified to ANSI/BHMA A156.3 2014, Grade 1, guaranteeing superior performance and reliability. The device accommodates door heights up to 84 inches and is field reversible, making adjustments straightforward during installation. Designed to cover stock hollow metal doors with 86 or 161 cutouts, this exit device includes a smooth mechanism case and is suitable for doors with a thickness of 1-3/4 inches. The deadlocking anti-friction latch bolt ensures enhanced security, providing peace of mind in commercial settings. With a limited three-year warranty, the Von Duprin 9827NL-OP exit device is a trusted solution for safety and accessibility.
Grade 1 SVR Exit Device 710
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Panic Device, 84" Door Height, Night Latch Function, Cylinder Only, Hex Key Dogging, Dark Bronze Anodized Aluminum Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Covers stock hollow metal doors with 86 or 161 cutouts.
9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Finish: 313
Finish Family: Dark Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Night Latch
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9827 Series Surface Vertical Rod Exit Device
Ship Weight: 19 lbs.
Strike Bottom: 248L4 / 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Part No: 110MD-NL US10B
Trim Type: Cylinder Only
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
