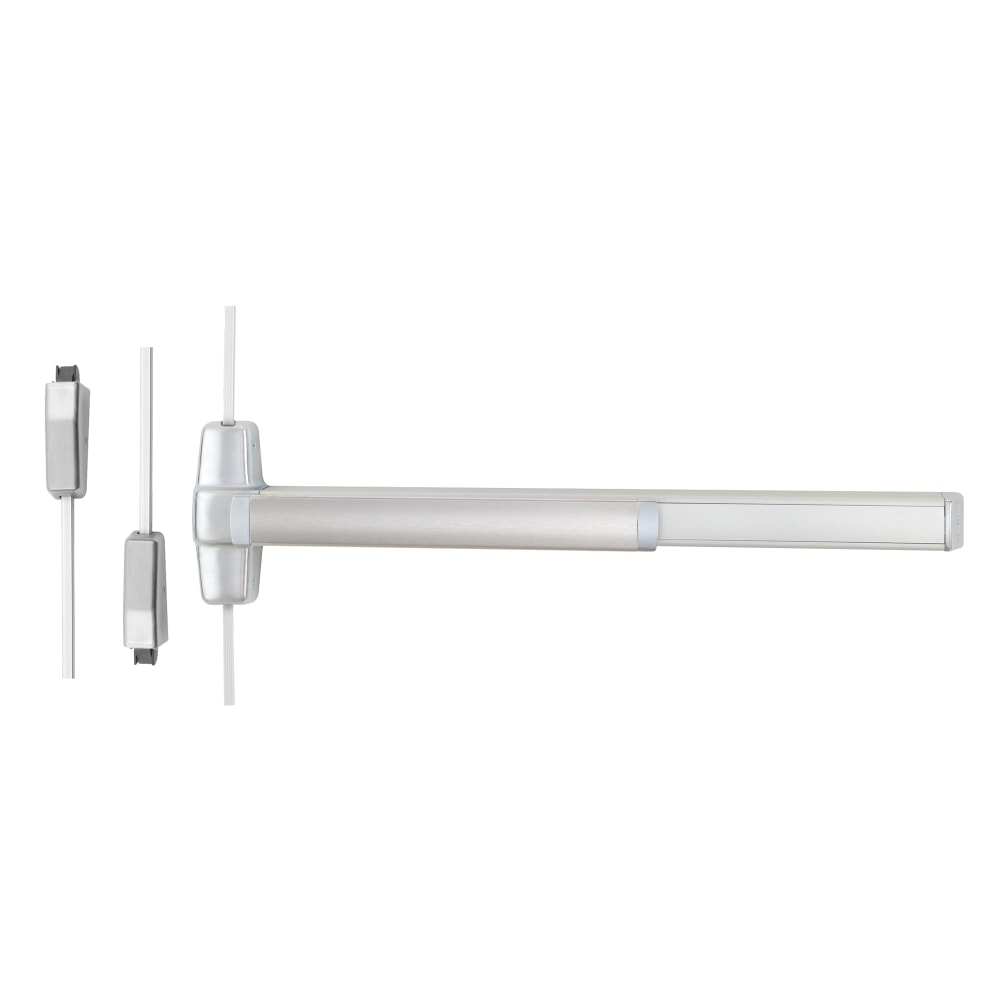

Von Duprin 9827NL-OP-F 3 26D Grade 1 SVR Exit Device 626 is a robust solution tailored for high-traffic commercial environments. This Grade 1 surface vertical rod exit bar features a wide stile pushpad and is designed for 36-inch fire-rated applications, making it ideal for both single and double doors up to 84 inches in height. Engineered for durability, the 9827NL-OP-F is UL listed for panic exit hardware and adheres to ANSI/BHMA A156.3 2014, Grade 1 standards. The device operates with a night latch function and is available in a sleek satin chrome finish (626) that complements various architectural styles. Its field-reversible design allows for flexibility during installation. The exit device accommodates stock hollow metal doors with 86 or 161 cutouts and includes a smooth mechanism case for reliable performance. With a deadlocking anti-friction latch bolt that offers a 5/8-inch throw, security is enhanced without sacrificing ease of use. The device also features vertical rods crafted from 1/2-inch square tubing, suitable for doors over 7 feet with extension rods available as needed. Designed with practical installation in mind, the Von Duprin 9827NL-OP-F is a dependable choice for ensuring safe and efficient egress in commercial spaces.
Grade 1 SVR Exit Device 626
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Fire-rated Device, 84" Door Height, Night Latch Function, Cylinder Only, Less Dogging, Satin Chrome Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Covers stock hollow metal doors with 86 or 161 cutouts.
9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Night Latch
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9827 Series Surface Vertical Rod Exit Device
Ship Weight: 20 lbs.
Strike Bottom: 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Part No: 110MD-NL 26D
Trim Type: Cylinder Only
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
