Von Duprin 9847EO 4 32D LBR Grade 1 CVR Exit Device 630

Von Duprin 9847EO 4 32D LBR Grade 1 CVR Exit Device 630 offers a robust solution for secure and efficient exit access in commercial environments. This Grade 1 concealed vertical rod exit device features a wide stile pushpad and is designed for door heights ranging from 80" to 100". Measuring 48" in length, it is ideal for single or double metal doors and is UL listed for panic exit hardware, ensuring compliance with safety standards. The device is equipped with hex key dogging for added convenience and is field reversible, allowing for flexible installation to suit various door configurations. With a deadlocking top and bottom bolt featuring a 5/8" throw, security is prioritized without compromising ease of use. The adjustable vertical rods accommodate door sizes from 34" to 48", making it versatile enough for various applications. Crafted with a satin stainless steel finish, the Von Duprin 9847EO not only enhances the aesthetics of your entryways but also ensures durability. The mechanism case dimensions are compact, making it easy to integrate into existing structures. This exit device is a reliable choice for professionals seeking quality and functionality in commercial hardware. With a three-year limited warranty, you can trust the longevity and performance of this exit device.

Grade 1 CVR Exit Device 630

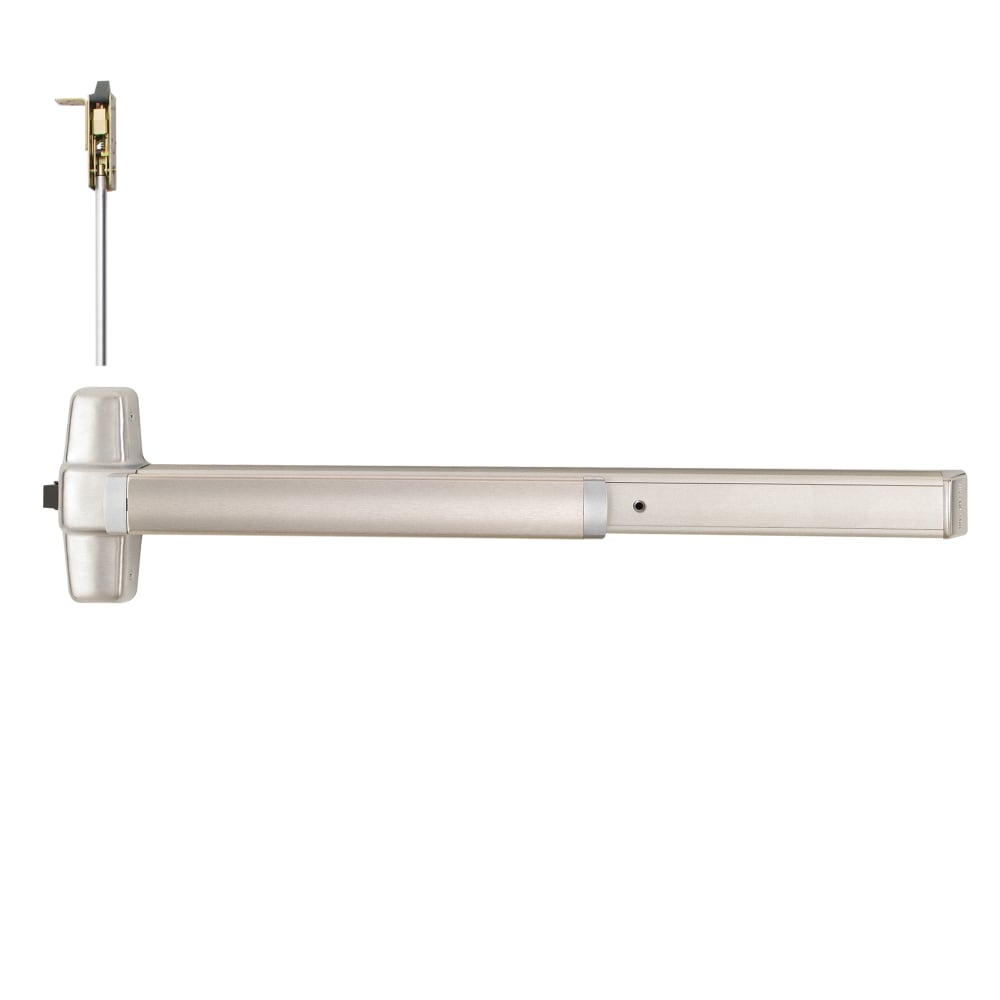

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48" Device, 80" to 100" Door Height, Exit Only, Less Bottom Rod, Hex Key Dogging, Satin Stainless Steel Finish, Field Reversible

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

The 9847 device has a smooth mechanism case.

The 9847 Series is for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 2' 2' (610 mm) Door size 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5 /8" (16mm) throw
• Door undercut: 1 /4" (7mm) recommended
• Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
• Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
