Von Duprin 9849EO-626-36 CVC Concealed Vertical Cable Exit Device, Exit Only, 36in-96in, Satin Chrome

Von Duprin 9849EO-626-36 CVC Concealed Vertical Cable Exit Device offers a robust solution for panic exit scenarios while maintaining aesthetic appeal. Designed for use on single or metal doors, this exit device is UL listed and adheres to ANSI A156.3 – 2001 Grade 1 standards, ensuring reliability and security. With a device length of 36 inches and adjustable compatibility for doors ranging from 82 to 96 inches in height, the 9849EO easily adapts to various applications. Its hex dogging feature allows for secure, easy operation, while the deadlocking top and bottom bolts provide enhanced safety with a 1/2-inch throw. The installation is hassle-free, including a screw pack suitable for 1-3/4 inch and 2-1/4 inch thick metal doors. The sleek satin chrome finish (626/US26D) not only adds a modern touch but also ensures durability in high-traffic environments. This device is non-handed for flexible installation, and it includes options for electrical features like request-to-exit and electric latch retraction, catering to diverse security needs. Choose the Von Duprin 9849EO-626-36 for a reliable, stylish exit solution that combines functionality with advanced safety features, making it ideal for commercial settings.

CVC Concealed Vertical Cable Exit Device, Exit Only No Trim, 36in x Adjustable up to 96in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

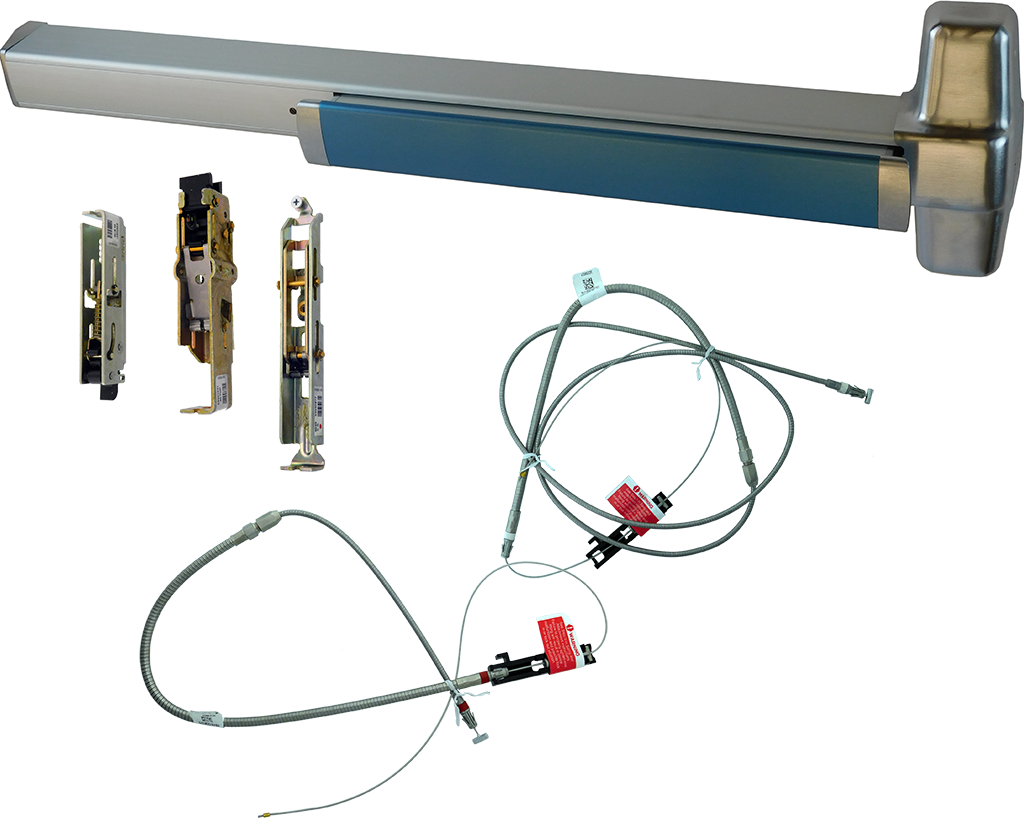

9849/9949 Concealed vertical cable device for use on single or metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2001 grade 1. The 9849 device has a smooth mechanism case and the 9949 device has a grooved case. The concealed vertical cable device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
• Device Lengths:
• 2' 2' (610mm) Door size
• 3' 2'4' to 3' (711mm to 914 mm) Door size
• 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor: 39 5/8" (1006 mm) standard
• Center Case: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
• Mechanism Case: 2-1⁄4" x 2-1⁄4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16" (97 mm)
• Push bar depressed – 3-1/16" (78 mm)
• Latch Bolt: Deadlocking top & bottom bolt, 1/2" (13mm) throw
• Door Undercut: 3/4" (19mm) maximum. (24231516 spacer block kit needed for 3⁄4" undercut)
• Top & Bottom Latch Case: 5-13/16" x 1-1/4" x 1-7/16" (147mm x 32mm x 37mm)
• Vertical Cable: 7/32" (6mm) Diameter stainless steel cables
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors. Optional 425 SNB available
• Electrical Options:
• LX: Latch bolt monitor switch. For 98/9949 devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• LBL: Less bottom latch
• PN: Pneumatic latch retraction
• SG: Safety glow
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging Features: No mechanical dogging; QEL options available
• Dogging Options:
• CD: Cylinder dogging
• CD-CX: Chexit cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• LD: Less dogging
• DI: Dogging indicator
• CI: Cylinder dogging indicator
• Strikes:
• Top – 249 – Unfinished
• Bottom – 349 – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 625 - Bright chrome
• 626/626AM - Satin chrome
• 628 - Aluminum, anodized
• 710 - Duranodic dark bronze
• 711 - Matte black/anodized
• 643e - Aged bronze

Features

• Mechanism Case: 2-1⁄4" x 2-1⁄4" (57mm x 57mm)
• GBK: Glass bead kit
• -2SI: Double cylinder with security indicator
• DI: Dogging indicator
• -2: Double cylinder
• PN: Pneumatic latch retraction
• 3' 2'4' to 3' (711mm to 914 mm) Door size
• CD-CX: Chexit cylinder dogging
• WP-RX: Waterproof request to exit
• SG: Safety glow
• E: Electric locking and unlocking trim
• SS: Signal switch
• CI: Cylinder dogging indicator
• ESL: Emergency secure lockdown
• Push bar depressed – 3-1/16" (78 mm)
• Electrical Options:
• Strikes:
• 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• LBL: Less bottom latch
• Center Case: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors. Optional 425 SNB available
• SEC: Security screws
• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
• Projection:
• RX: Request to exit
• LD: Less dogging
• ALK: Alarm exit kit
• AX: Accessible device
• Push bar neutral – 3-13/16" (97 mm)
• 2' 2' (610mm) Door size
• EL: Electric latch retraction
• Door Undercut: 3/4" (19mm) maximum. (24231516 spacer block kit needed for 3⁄4" undercut)
• SNB: Sex bolts
• CON: Allegion Connect
• LX: Latch bolt monitor switch. For 98/9949 devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• QEL: Quiet electric latch retraction
• Dogging Features: No mechanical dogging; QEL options available
• Mechanical Options:
• Top – 249 – Unfinished
• Device Lengths:
• CDSI: Cylinder dogging with security indicator
• Device Centerline from Finished Floor: 39 5/8" (1006 mm) standard
• CX: Chexit delayed exit
• Bottom – 349 – Unfinished
• Vertical Cable: 7/32" (6mm) Diameter stainless steel cables
• Dogging Options:
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• Latch Bolt: Deadlocking top & bottom bolt, 1/2" (13mm) throw
• CD: Cylinder dogging
• RX2: Double request to exit
• Top & Bottom Latch Case: 5-13/16" x 1-1/4" x 1-7/16" (147mm x 32mm x 37mm)
• WH: Weep holes
