Von Duprin 9927L-06 3 US28 LHR Grade 1 SVR Exit Device 628 offers a robust solution for high-traffic environments, ensuring safety and accessibility without compromising on style. This Grade 1 surface vertical rod exit device features a wide stile pushpad design, making it easy to operate in emergency situations. Designed for doors up to 84 inches in height, the 36-inch panic device is UL listed for panic exit hardware, ensuring compliance with safety standards. The classroom function, combined with hex key dogging, allows for versatile operation, making it ideal for commercial use. With its satin aluminum clear anodized finish, this exit device not only provides durability but also enhances the aesthetic of any building. The device accommodates a range of door widths from 28 to 36 inches and is field reversible for easy installation on both left- and right-hand doors. Constructed to ANSI/BHMA A156.3 2014, Grade 1 standards, the 9927L series is built to withstand the rigors of daily use. The deadlocking anti-friction top and bottom bolts ensure security and reliability. With a limited three-year warranty, the Von Duprin 9927L-06 is a trusted choice for professionals seeking quality exit devices.

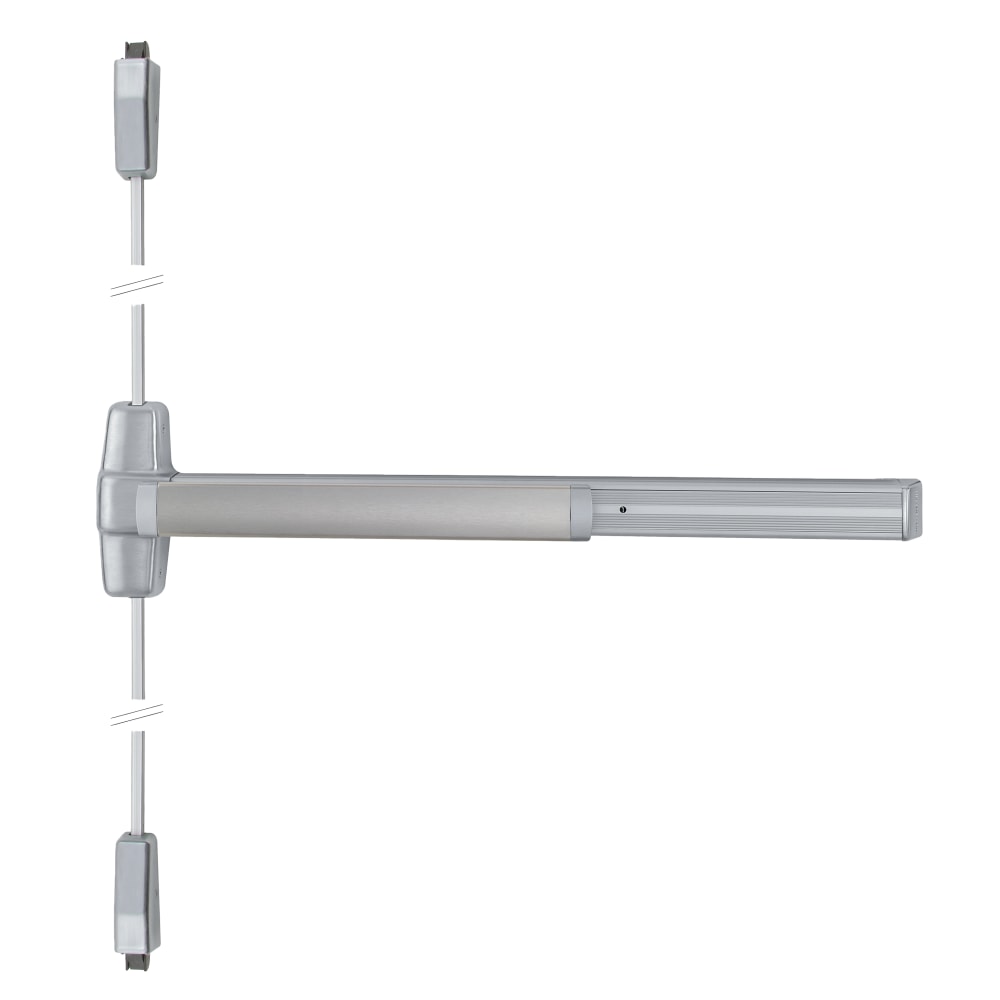

Grade 1 SVR Exit Device 628
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Panic Device, 84" Door Height, Classroom Function, 06 Lever with Escutcheon, Hex Key Dogging, Satin Aluminum Clear Anodized Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
Manufacturer surcharge: $ 0.0
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Finish: 628/US28
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Classroom
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Ship Weight: 22 lbs.
Strike Bottom: 248L4 / 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Design: Lever with Escutcheon
Trim Part No: 996L-06-R/V 26D
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
