Von Duprin 9927NL-OP-F 3 US10 Grade 1 SVR Exit Device 612 offers a robust solution for high-traffic environments requiring reliable emergency exit functionality. This Grade 1 surface vertical rod exit device features a wide stile pushpad and is designed for 36" fire-rated doors up to 84" in height, ensuring compliance with stringent safety standards. Constructed for durability, the 9927 series is UL listed for panic exit hardware and certified to ANSI/BHMA A156.3 2014, Grade 1. It accommodates various door types, including single and double doors, with cutouts for stock hollow metal doors. The device includes a night latch function for added security and is field reversible for flexible installation. With an anti-friction deadlocking latch bolt that boasts a 5/8" throw, this exit device guarantees secure closure and ease of operation. The projected pushbar reaches 3 13/16" when neutral and 3 1/16" when depressed, providing smooth functionality. Additionally, the satin bronze clear coated finish offers an aesthetically pleasing appearance while protecting against wear. Included are fasteners suitable for metal and wood doors, ensuring a secure fit for doors ranging from 28" to 36" wide. Experience peace of mind with the Von Duprin 9927NL-OP-F, where safety meets efficiency.

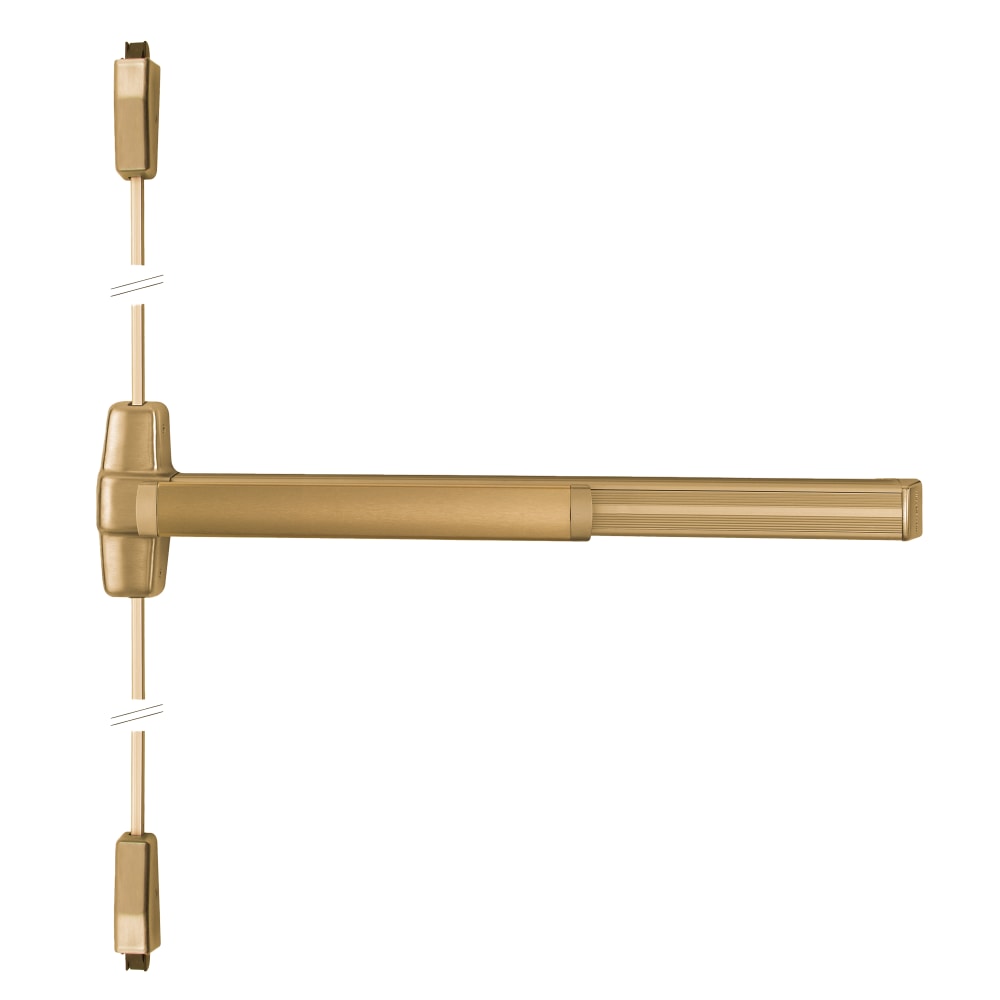

Grade 1 SVR Exit Device 612
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Fire-rated Device, 84" Door Height, Night Latch Function, Cylinder Only, Less Dogging, Satin Bronze Clear Coated Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Surface mounted vertical rod device.
9927 series surface vertical rod exits are made for high traffic environments.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Night Latch
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9927 Series Surface Vertical Rod Exit Device
Ship Weight: 20 lbs.
Strike Bottom: 304L
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Part No: 110MD-NL US10
Trim Type: Cylinder Only
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
