Von Duprin 9947EO 4 26D LBR Grade 1 CVR Exit Device - 626 Model

Von Duprin 9947EO 4 26D LBR Grade 1 CVR Exit Device 626 is a top-tier concealed vertical rod exit bar designed for both single and double metal doors. This Grade 1 device features a wide stile pushpad and is compatible with door heights ranging from 80" to 100". With a length of 48", it provides reliable exit functionality, ensuring safe egress in commercial settings. The exit device is UL listed for panic exit hardware, meeting ANSI A156.3 - 2008 Grade 1 standards. It includes hex key dogging and is field reversible, allowing for flexible installation on various door styles. The 9947 series is specifically engineered with a grooved case, enhancing durability and performance. Installation is straightforward, with a standard centerline height of 39-5/8" adjustable from 35-5/8" to 49-5/8". The round two-piece adjustable vertical rods accommodate door sizes up to 8'4" and feature a deadlocking latch bolt with a secure 5/8" throw. The satin chrome finish adds a modern touch while ensuring long-lasting beauty. With a robust design and user-friendly features, the Von Duprin 9947EO exit device is an excellent choice for commercial applications, ensuring safety without compromising style.

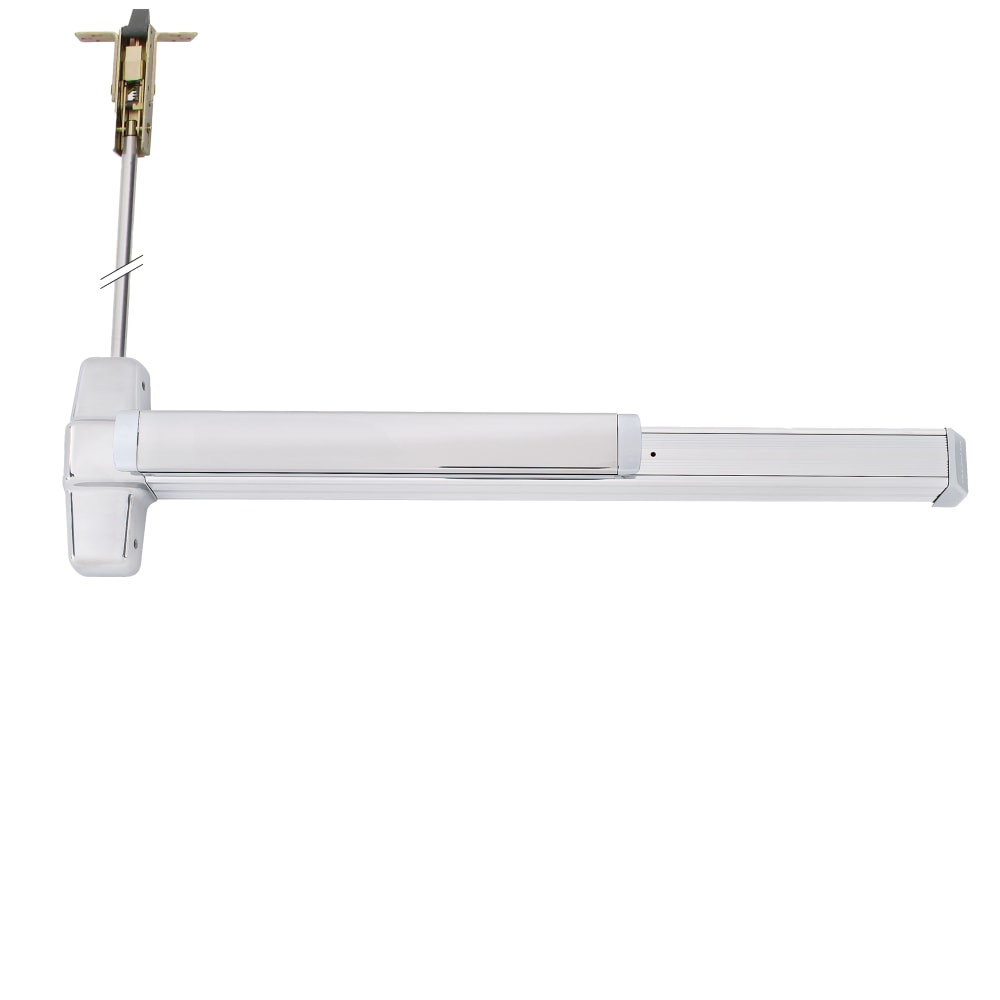

Grade 1 CVR Exit Device 626

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48" Device, 80" to 100" Door Height, Exit Only, Less Bottom Rod, Hex Key Dogging, Satin Chrome Finish, Field Reversible

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

Grade 1 exit devices available in an array of finishes.

The 9947 Series by Von Duprin is UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1 with a grooved case.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths:
  • 2' — 2' (610 mm) Door size
  • 3' — 2' 4' to 3' (711 mm to 914 mm) door size
  • 4' — 2' 10" to 4' (864 mm to 1219 mm) door size
• Device centerline from finished floor:
  • 39-5/8" (1006 mm) Standard
  • Adjustable from 35-5/8" (905 mm) to 49-5/8" (1260 mm)
• Center case dimensions: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm)
• Mechanism case dimensions: 2-1/4" x 2-1/4" (57 mm x 57 mm)
• Projection:
  • Pushbar neutral — 3-13/16" (97 mm)
  • Pushbar depressed — 3-1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8" (16 mm) throw
• Door undercut: 1/4" (7 mm) recommended
• Top & bottom Latch case: 4-1/2" x 2-1/8" x 1-1/2" (114 mm x 54 mm x 38 mm)
• Vertical rods:
  • Round 2-piece adjustable rods
  • Top rod adjustable from 6' 8" (2027 mm) to 8'4" (2533 mm).
  • Bottom rod adjustable 35-5/8" (905 mm) to 49-5/8" (1260 mm).
  • Extension rod kits available for doors over 8' 4" (2533 mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4" (44 mm) to 2-1/4" (57 mm) thick metal doors. Optional 425 SNB available.
