Von Duprin 9947L-711-36-RHR 06 KIT - CVR is a concealed vertical rod exit device designed for single or double metal doors. This UL-listed panic exit hardware meets ANSI A156.3 – 2008 Grade 1 standards, ensuring top-tier durability and reliability in high-traffic environments. The device features a grooved mechanism case and is designed for right-handed reverse installation, making it versatile for various applications. Measuring 36 inches with adjustability for door heights up to 120 inches, this exit device is perfect for both standard and oversized doors. The deadlocking latch bolts with a 5/8-inch throw provide enhanced security, while the hex key dogging feature offers convenient operation. The device is compatible with various electrical options, such as request to exit and electric latch retraction, allowing for customization to meet specific security needs. Installation is straightforward, as it includes a comprehensive screw pack for metal doors ranging from 1 3/4 inches to 2 1/4 inches thick. The 9947L is finished in a sleek black (US19), making it an attractive addition to any commercial space. With its robust features and flexible design, the Von Duprin 9947L-711-36-RHR 06 KIT - CVR is an excellent choice for ensuring safe and efficient exits in commercial settings.

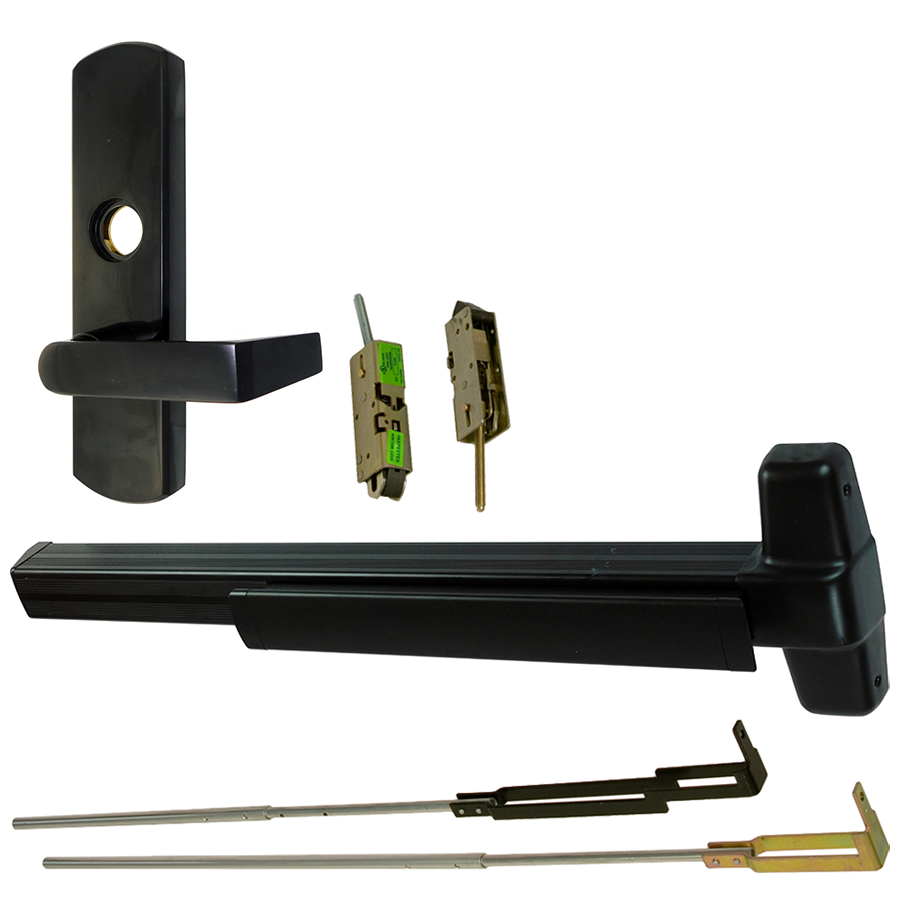

KIT - CVR (Concealed Vertical Rod) Grooved Exit Device, 996L-06 Lever Trim (Requires Rim Cylinder), RHR Right Hand Reverse/Reversible Handing (Snap Ring Tool Needed), 36in x Adjustable (Heights Up to 120in), Grade 1, 711/US19 Black

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case. The concealed vertical rod device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).

Specifications:

• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2" - 2" (610 mm) Door size (shipped less UL label)
• 3" - 2"4" to 3" (711mm to 914 mm) Door size
• 4" - 2"10" to 4" (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor: 39 5/8" (1006 mm) Standard adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
• Center Case: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
• Mechanism Case: 2-1/4" x 2-1/4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16" (97 mm)
• Push bar depressed – 3-1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8" (16mm) throw
• Door undercut: 1/4" (7mm) recommended
• Top and Bottom Latch Case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic latch retraction
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging feature: Hex key dogging standard
• Dogging options:
• CD: Cylinder dogging
• CD-CX: Chexit cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• LD: Less dogging
• DI: Dogging indicator
• CI: Cylinder dogging indicator
• Strikes:
• Top – 338 – Unfinished
• Bottom – 385A – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright Brass
• 606 - Satin Brass
• 612 - Satin Bronze
• 613 - Satin Bronze-Oil Rubbed
• 625 - Bright Chrome
• 626 - Satin Chrome
• 626-AM - Satin chrome, Antimicrobial coating
• 643e - Aged Bronze
• 693 - Painted Black
• 721 - Bright Brass
• 728 - Satin Brass
