Von Duprin 9947TP-F-626-36 ALK Alarmed Fire-Rated CVR Grooved Exit Device with 990TP Trim, 36in Adjustable

Von Duprin 9947TP-F-626-36 ALK KIT is a state-of-the-art alarmed exit device designed to enhance security and safety in high-traffic areas. With a fire-rated construction and certification to ANSI/BHMA A156.3 2014, Grade 1, this device ensures compliance with stringent safety standards while providing reliable performance. The concealed vertical rod design eliminates visible hardware, offering a clean aesthetic suitable for various architectural styles. This unit features a thumbpiece trim and requires a 1-1/4 inch mortise cylinder, making it user-friendly and easy to operate. The device dimensions accommodate doors from 36 inches up to adjustable heights of 120 inches, ensuring versatile installation options. It includes deadlocking bolts with a 5/8 inch throw, providing robust security. The Von Duprin 9947TP also incorporates advanced electrical options, including an alarm exit kit, making it an ideal choice for facilities needing controlled access and monitoring. The satin chrome finish not only adds a contemporary touch but also enhances durability against wear. Designed for easy installation on metal doors, this exit device is perfect for environments that demand safety without sacrificing aesthetics. Choose the Von Duprin 9947TP-F-626-36 ALK KIT for a reliable, stylish, and secure exit solution.

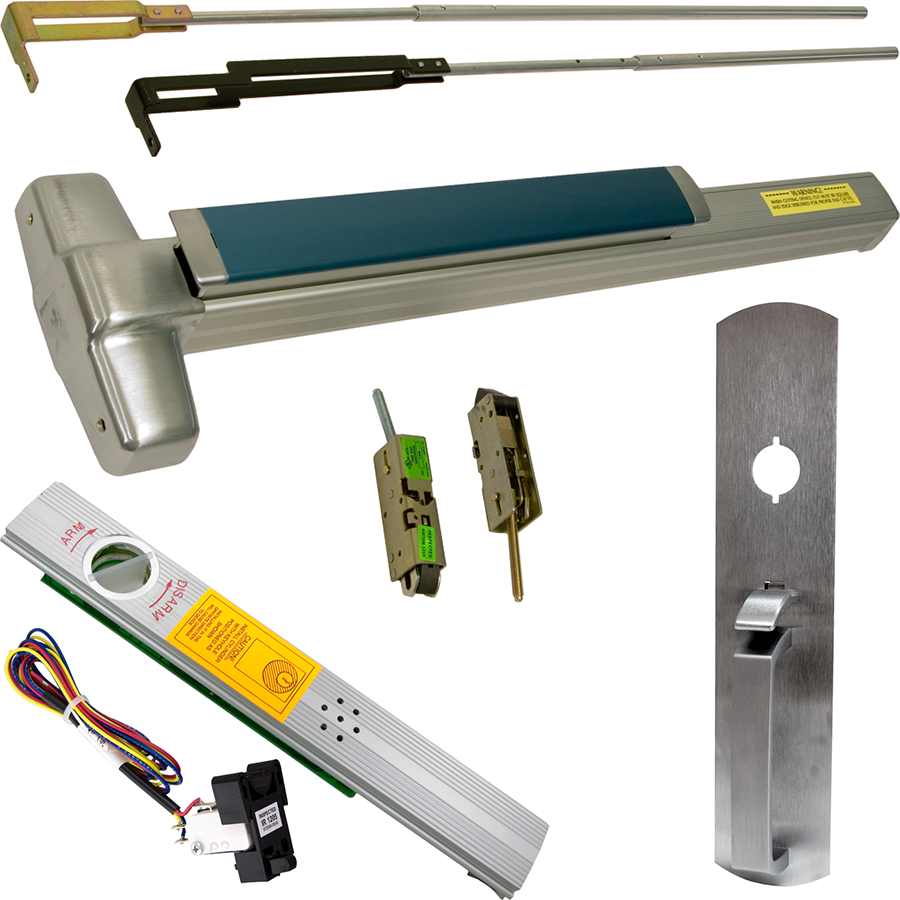

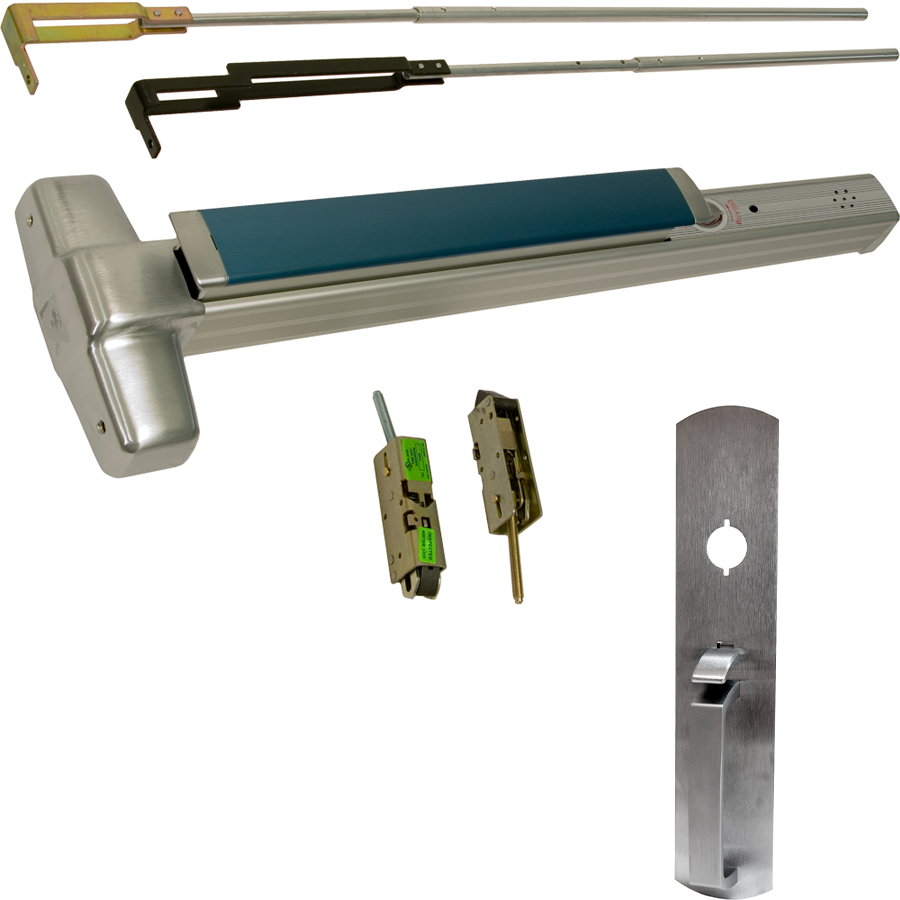

KIT - Alarmed (Requires 1-1/4in Mortise Cylinder), Fire-Rated (No Dogging), CVR (Concealed Vertical Rod) Grooved Exit Device, 990TP Thumb Piece Trim (Requires Rim Cylinder), 36in x Adjustable (Heights Up to 120in), Grade 1, 626/US26D Satin Chrome

9847-F/9947-F Fire exit concealed vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 9847-F device has a smooth mechanism case and the 9947-F device has a grooved case. The concealed vertical rod device is non-handed except when the following device option is used: SS (signal switch) devices.

Specifications:

• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2" - 2" (610 mm) Door size (shipped less UL label)
• 3" - 2"4" to 3" (711mm to 914 mm) Door size
• 4" - 2"10" to 4" (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor: 39 5/8" (1006 mm) Standard adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
• Center Case: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
• Mechanism Case: 2-1/4" x 2-1/4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16" (97 mm)
• Push bar depressed – 3-1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8" (16mm) throw
• Door undercut: 1/4" (7mm) recommended
• Top and Bottom Latch Case: 3-3⁄4" x 1-1⁄2" x 1" (95mm x 38mm x 25mm)
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic latch retraction
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging options: No mechanical dogging; QEL options available
• Strikes:
• Top – 338 – Unfinished
• Bottom – 385A – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Satin bronze-oil rubbed
• 625 - Bright chrome
• 626 - Satin chrome
• 626-AM - Satin chrome, antimicrobial coating
• 643e - Aged bronze
• 693 - Painted black
• 721 - Bright brass
• 728 - Satin brass

Features

• Projection:
• Top and Bottom Latch Case: 3-3⁄4" x 1-1⁄2" x 1" (95mm x 38mm x 25mm)
• Top – 338 – Unfinished
• RX: Request to exit
• GBK: Glass bead kit
• 4" - 2"10" to 4" (864 mm to 1219 mm) Door size
• ALK: Alarm exit kit
• -2SI: Double cylinder with security indicator
• Push bar neutral – 3-13/16" (97 mm)
• EL: Electric latch retraction
• SNB: Sex bolts
• CON: Allegion Connect
• -2: Double cylinder
• PN: Pneumatic latch retraction
• QEL: Quiet electric latch retraction
• Latch bolt: Deadlocking top & bottom bolt, 5/8" (16mm) throw
• Mechanical Options:
• Mechanism Case: 2-1/4" x 2-1/4" (57mm x 57mm)
• Center Case: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
• WP-RX: Waterproof request to exit
• PL: Pullman latch
• Device Lengths:
• E: Electric locking and unlocking trim
• SS: Signal switch
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
• ESL: Emergency secure lockdown
• CX: Chexit delayed exit
• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Dogging options: No mechanical dogging; QEL options available
• Push bar depressed – 3-1/16" (78 mm)
• LX: Latch bolt monitor switch
• 2" - 2" (610 mm) Door size (shipped less UL label)
• Device Centerline from Finished Floor: 39 5/8" (1006 mm) Standard adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
• Electrical Options:
• Strikes:
• Bottom – 385A – Unfinished
• SEC: Security screws
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• 3" - 2"4" to 3" (711mm to 914 mm) Door size
• LBR: Less bottom rod
• Door undercut: 1/4" (7mm) recommended
• RX2: Double request to exit
• WH: Weep holes
