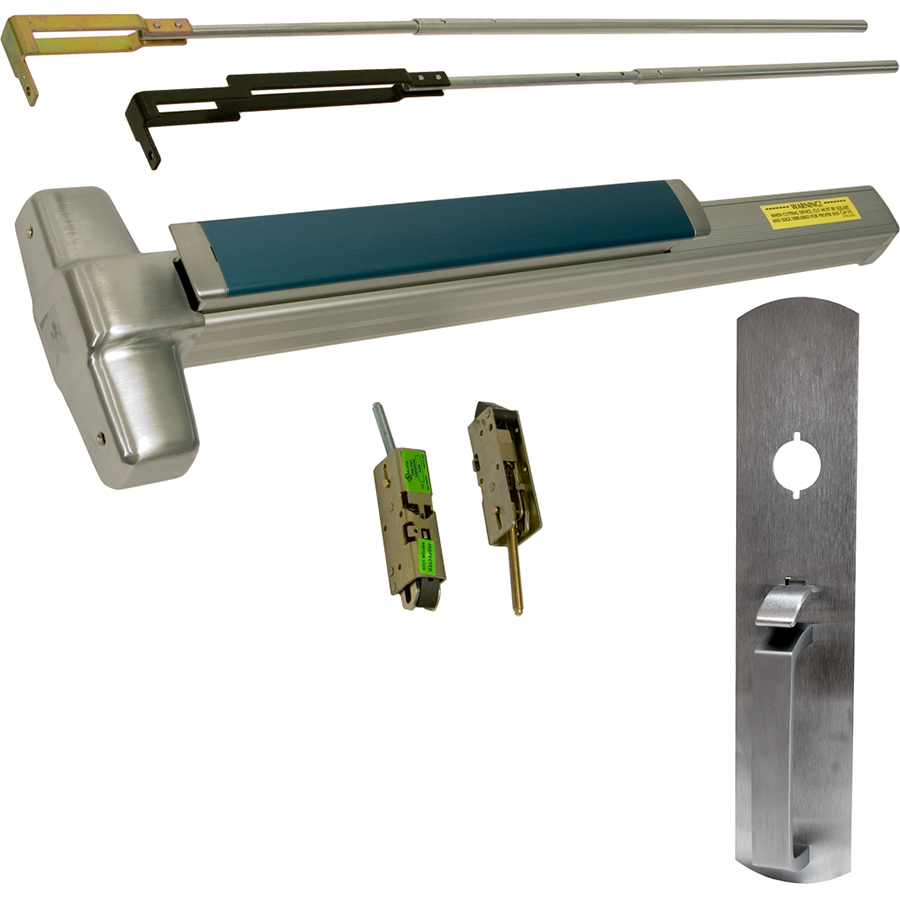

Von Duprin 9947TP-F-626-36 Fire-Rated CVR Grooved Exit Device with 990TP Trim, 36in Adjustable, Grade 1

Von Duprin 9947TP-F-626-36 KIT is a sophisticated fire-rated exit device designed for high-security environments. This concealed vertical rod (CVR) model features a grooved case and a thumbpiece trim that requires a rim cylinder for operation. With a width of 36 inches and adjustable heights up to 120 inches, it seamlessly accommodates various door sizes, making it an excellent choice for commercial applications. Certified to ANSI/BHMA A156.3 2014, grade 1, and UL listed for fire exit hardware, the 9947TP is built to withstand rigorous use while ensuring safety in emergencies. The deadlocking latch bolts provide robust security with a 5/8-inch throw, and the device is designed for non-handed installation, simplifying setup and maintenance. Additional features include adjustable vertical rods that can extend from 6'8" to 8'4" for the top rod and from 35 5/8" to 49 5/8" for the bottom rod. This device also offers various electrical and mechanical options to enhance functionality, including request-to-exit features and electric locking capabilities. Finished in a sleek satin chrome, the Von Duprin 9947TP-F-626-36 KIT is the ideal solution for ensuring safety and reliability in emergency exits.

KIT - Fire-Rated (No Dogging), CVR (Concealed Vertical Rod) Grooved Exit Device, 990TP Thumb Piece Trim (Requires Rim Cylinder), 36in x Adjustable (Heights Up to 120in), Grade 1, 626/US26D Satin Chrome

9847-F/9947-F Fire exit concealed vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 9847-F device has a smooth mechanism case and the 9947-F device has a grooved case. The concealed vertical rod device is non-handed except when the following device option is used: SS (signal switch) devices.

Specifications:

• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2" - 2" (610 mm) Door size (shipped less UL label)
• 3" - 2"4" to 3" (711mm to 914 mm) Door size
• 4" - 2"10" to 4" (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor: 39 5/8" (1006 mm) Standard adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
• Center Case: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
• Mechanism Case: 2-1/4" x 2-1/4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16" (97 mm)
• Push bar depressed – 3-1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8" (16mm) throw
• Door undercut: 1/4" (7mm) recommended
• Top and Bottom Latch Case: 3-3⁄4" x 1-1⁄2" x 1" (95mm x 38mm x 25mm)
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic latch retraction
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging options: No mechanical dogging; QEL options available
• Strikes:
• Top – 338 – Unfinished
• Bottom – 385A – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Satin bronze-oil rubbed
• 625 - Bright chrome
• 626 - Satin chrome
• 626-AM - Satin chrome, antimicrobial coating
• 643e - Aged bronze
• 693 - Painted black
• 721 - Bright brass
• 728 - Satin brass
