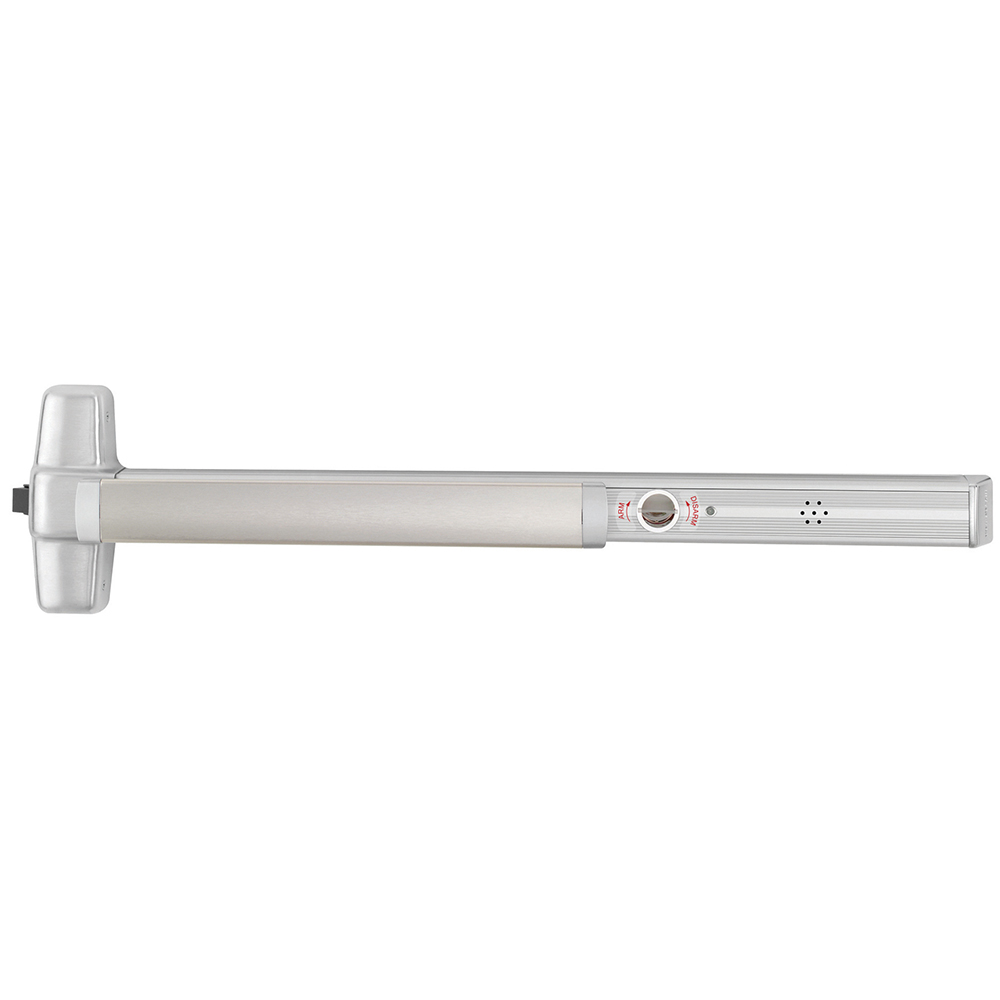

Von Duprin 99EO 3 26D RHR ALK RSS Grade 1 Rim Exit Device 626 offers a robust solution for emergency exits in commercial settings. This Grade 1 rim exit device features a wide stile pushpad, measuring 36 inches, designed for easy access in high-traffic areas. With its battery-powered alarm kit and request-to-exit switch, this device ensures safety and security while signaling an emergency exit. Constructed for durability, the 99EO is UL listed for panic exit hardware and complies with ANSI A156.3 - 2008 standards. Its heavy-duty design accommodates both single and double doors, including those with a mullion. The device's deadlocking latch bolt provides a reliable 3/4-inch throw, enhancing security. Installation is straightforward with included fasteners suitable for 1-3/4 inch to 2-1/4 inch thick metal or wood doors. This exit device, finished in satin chrome, is non-handed, with right-hand reverse handing for flexible installation options. Ideal for various commercial applications, the Von Duprin 99EO 3 26D is designed to meet the rigorous demands of safety while providing peace of mind through its alarm functionality. With a limited warranty of one year, this exit device combines functionality and reliability in one essential component for your building's safety plan.
Grade 1 Rim Exit Device 626
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36" Device, Exit Only, Less Trim, Alarm Kit Battery Powered, Request to Exit Switch, Less Dogging, "Emergency Exit Only, Push to Open & Sound Alarm" Touchbar, Satin Chrome Finish, Right Hand Reverse
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36"
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4" - 2-1/4"
Door Width: 28" - 36"
Electric Options: Battery Powered Alarm Kit
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Right Hand Reverse
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 3-5/8"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Product Height: 8"
Product Length: 33"
Product Width: 3.75"
Restrictions: None
Reversible: No
Series: 99 Series Rim Exit Device
Ship Weight: 14 lbs.
Strike Standard: 299
Subtype: Rim Exit Devices
Switch Type: Request to Exit
Touch Bar Options: "Emergency Exit Only, Push to Open & Sound Alarm"
Trim Design: Less Trim
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
