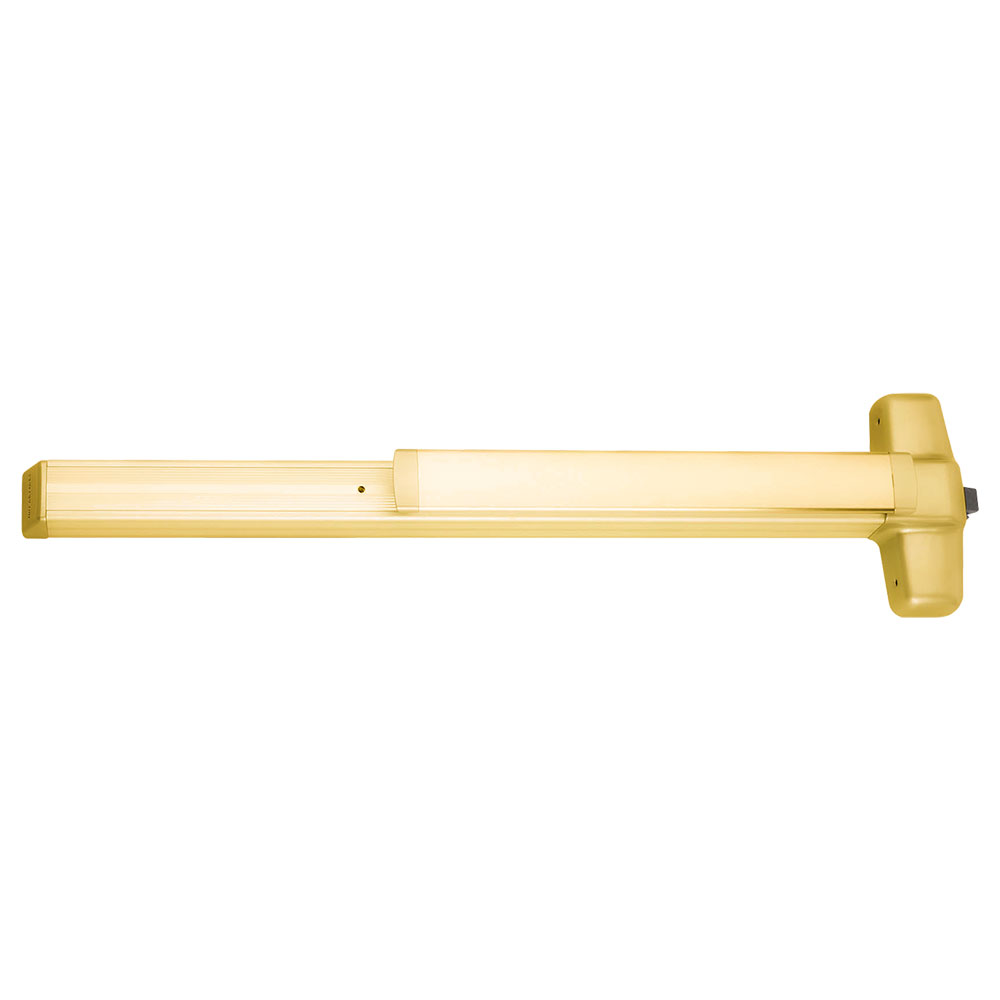

Von Duprin 99EO 4 US3 Grade 1 Rim Exit Device 605 offers a robust solution for safe and efficient egress in commercial settings. This Grade 1 rim exit bar is designed for use on both single and double doors and is UL listed for panic exit hardware, ensuring compliance with safety standards. The device features a wide stile pushpad and measures 48 inches in length, making it ideal for various door sizes from 34 to 48 inches wide. Constructed with heavy-duty materials, the 99EO boasts a non-handed design, allowing for easy installation regardless of door handing. The hex key dogging feature adds convenience for maintenance, while the deadlocking latch bolt provides reliable security with a 3/4-inch throw. Its polished brass finish not only enhances the aesthetic appeal but also ensures durability. This exit device is suitable for commercial applications and is compatible with metal or wood doors, accommodating thicknesses from 1-3/4 inches to 2-1/4 inches. The device also includes a comprehensive screw pack for installation, ensuring you have everything needed for a seamless setup. With a limited 3-year warranty, the Von Duprin 99EO is a trusted choice for enhancing safety and accessibility in any building.
Grade 1 Rim Exit Device 605
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 48" Device, Exit Only, Less Trim, Hex Key Dogging, Bright Brass Finish, Non-handed
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
Manufacturer surcharge: $ 0.0
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 48"
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4" - 2-1/4"
Door Width: 34" - 48"
Finish: 605/US3
Finish Family: Polished Brass
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-handed
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 3-5/8"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 49"
Pack Length 2: 50"
Pack Qty: 1
Pack Volume: 2572.5 in³
Pack Volume 2: 9400 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Product Height: 8"
Product Length: 45"
Product Width: 3.75"
Restrictions: None
Reversible: No
Series: 99 Series Rim Exit Device
Ship Weight: 17 lbs.
Strike Standard: 299
Subtype: Rim Exit Devices
Trim Design: Less Trim
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
