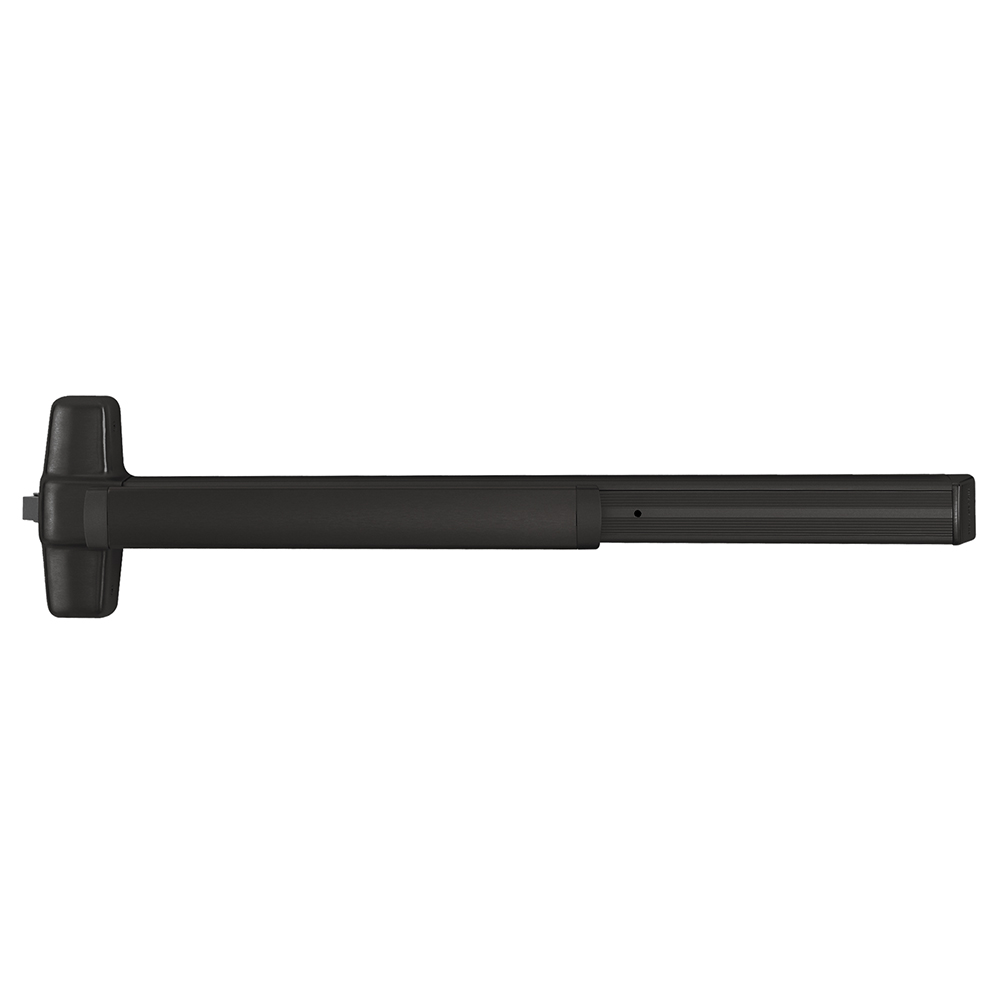

Von Duprin 99L-NL-07 4 315 LHR Grade 1 Rim Exit Device 711 offers robust and reliable exit solutions for both single and double doors. This Grade 1 rim exit device features a wide stile pushpad and is designed for durability with a heavy-duty construction that ensures long-lasting performance. With a length of 48 inches, it is equipped with a night latch function and a 07 lever with escutcheon, enhancing both security and accessibility. The device is UL listed for panic exit hardware and meets ANSI A156.3 - 2008 Grade 1 standards, making it compliant with various safety regulations. Its hex key dogging mechanism allows for easy operation and maintenance, while the field-reversible design ensures versatility in installation. The unit accommodates door sizes ranging from 34 to 48 inches in width and is compatible with doors between 1-3/4 and 2-1/4 inches thick, suitable for both metal and wood applications. Finished in a sleek black anodized aluminum, this exit device not only enhances the aesthetic of your doors but also provides reliable functionality. With a deadlocking latch bolt that features a 3/4-inch throw, the Von Duprin 99L-NL-07 ensures secure exit pathways in commercial settings.
Grade 1 Rim Exit Device 711
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 48" Device, Night Latch Function, 07 Lever with Escutcheon, Hex Key Dogging, Black Anodized Aluminum Finish, Field Reversible
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 48"
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4" - 2-1/4"
Door Width: 34" - 48"
Finish: 315/335
Finish Family: Black
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Night Latch
Minimum Stile Size: 4-1/2"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 49"
Pack Length 2: 50"
Pack Qty: 1
Pack Volume: 2572.5 in³
Pack Volume 2: 9400 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Product Height: 8"
Product Length: 45"
Product Width: 3.75"
Restrictions: None
Reversible: Yes
Series: 99 Series Rim Exit Device
Ship Weight: 21 lbs.
Strike Standard: 299
Subtype: Rim Exit Devices
Trim Design: Lever with Escutcheon
Trim Part No: 996L-NL-07-R/V US19 LHR
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
