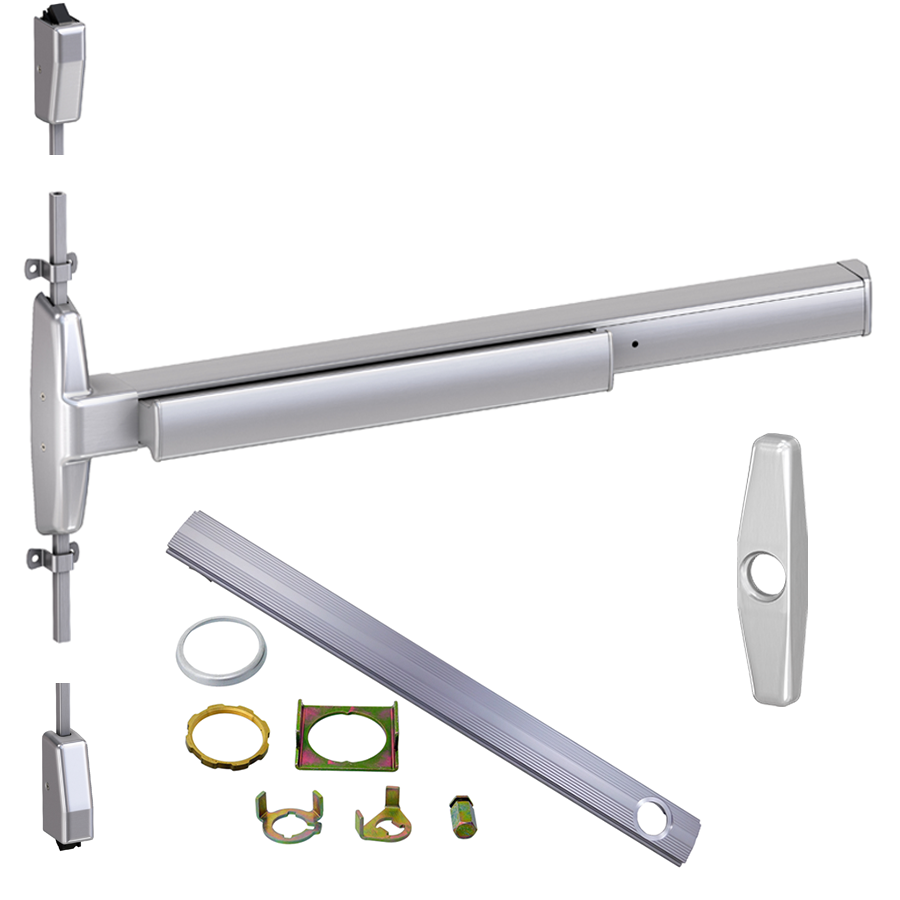

Von Duprin CD-7527NL-OP-626-36 75 Series Narrow Stile SVR Exit Device, Cylinder Dogging, Satin Chrome

Von Duprin CD-7527NL-OP-626-36 KIT is a robust 75 Series Narrow Stile Surface Vertical Rod (SVR) exit device designed for both single and double doors. This high-performance exit device is UL listed for panic exit hardware, ensuring compliance with safety standards while offering superior security. Certified to ANSI/BHMA A156.3 2014, grade 1, it features a deadlocking latch bolt with a 5/8" throw, providing reliable locking capabilities. The CD-7527NL-OP-626-36 KIT includes cylinder dogging functionality, requiring a 1-1/4" mortise cylinder and a 388 night latch cylinder assembly for added versatility. Designed for doors ranging from 2' 6" to 4' in width, this device is suitable for a variety of applications. It boasts a sleek satin chrome finish (626/US26D), making it both aesthetically pleasing and durable. Field-selectable device functions (EO/DT/NL) allow customization based on your needs, while optional electrified features enhance security and convenience. The device's design incorporates vertical rod and latch guards to protect against impacts, ensuring longevity in high-traffic areas. With an easy installation process and included screw pack for various door thicknesses, the Von Duprin CD-7527NL-OP-626-36 KIT is the ideal solution for effective and stylish exit security.

KIT - 75 Series Narrow Stile SVR (Surface Vertical Rod) Exit Device, CD (Cylinder Dogging, Requires 1-1/4in Mortise Cylinder), 388 Night Latch Cylinder Assembly, (Requires Rim Cylinder), 36in x 84in, Grade 1, 626/US26D Satin Chrome

The 7527 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Center Case: 9" x 1-5/8" x 2-3/8" (229mm x 41mm x 60mm)
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Latch Bolt: Deadlocking, 5/8" (15.875mm) throw
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Pushbar Length: 3' 18" (457mm), 4' 24" (610mm)
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Quiet electric latch retraction
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging Options:
• Hex key dogging standard
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes:
• 266: Top—dull black
• 248L4 & 304L: Bottom—unfinished

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, rigid - dummy trim
• Pull when dogged (not recommended for fire device)
• LBE: Lever - blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Dark brown, anodized
• 711 - Matte black
