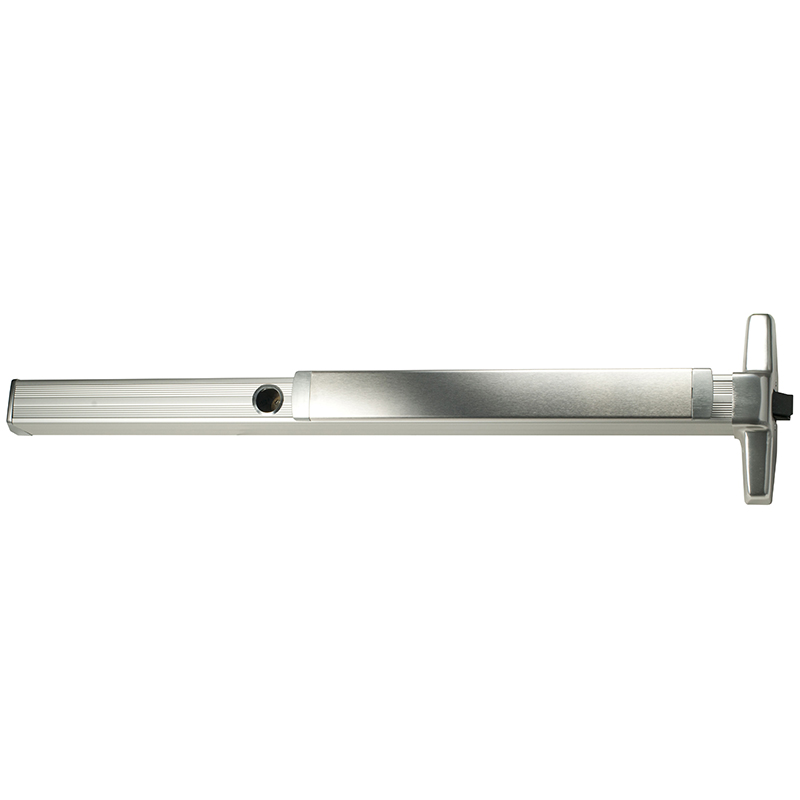

Von Duprin CD33AEO 3 26D Grade 1 Narrow Rim Exit Device - 626

Von Duprin CD33AEO 3 26D Grade 1 Narrow Rim Exit is a robust and reliable solution for commercial exit requirements. Designed for narrow stile applications, this Grade 1 Rim Exit Device seamlessly blends functionality with security. With a length of 36 inches, it features a narrow stile pushpad and is ideal for both single and double doors, including those with mullions. The device is ANSI A156.3 certified and UL listed for panic exit hardware, ensuring compliance with industry standards. The CD33AEO boasts a deadlocking latchbolt that enhances security by preventing forced latchbolt retraction. This model is non-handed, making installation a breeze, and features cylinder dogging for added convenience. The satin chrome finish not only provides a sleek appearance but also ensures durability against wear and tear. With a device centerline positioned at 39 13/16 inches from the finished floor, it is accessible while maintaining an elegant profile. The mechanism case dimensions are 8 3/16" x 2 13/32" x 1 9/16", and the device is compatible with various doors, whether metal or wood, with a thickness of 1-3/4 inches. Backed by a three-year limited warranty, the Von Duprin CD33AEO is the perfect choice for dependable exit solutions.

Grade 1 Narrow Rim Exit 626

Grade 1 Rim Exit Device, Narrow Stile Pushpad, 36", Exit Only, Less Trim, Cylinder Dogging, Satin Chrome Finish, Non-Handed

33A and 35A for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 ñ 2014 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. The rim device is non-handed except when the SS (signal switch) option is used. See opposite page for available outside trim and device functions.

The 33A Series features a grooved mechanism case and is for all types of single and double doors.

The 33A Series is UL listed for Panic Exit Device Hardware and has a deadlocking latchbolt that prevents forced latchbolt retraction providing higher security for your openings.

• Device Lengths: 3’ 2’4" to 3’ (711mm to 914 mm) door size; 4’ 2’10" to 4’ (864 mm to 1219 mm) door size
• Strikes: 1439 – Dull Black
• Dogging Feature: Hex key dogging standard
• Dogging Options: CD Cylinder Dogging; LD Less Dogging
• Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; SS Signal Switch; EL Electric Latch Retraction; ALK Alarm Exit Kit
• Miscellaneous Options: PN Pneumatic Latch Retraction; GBK Glass Bead Kit
• Fasteners & Includes Sex Bolts (SNB): 1 3/4" (44mm) – 2 1/4" (57mm) Wood & Metal Doors; #425 SNB furnished standard for end case; #325 SNB furnished standard for EO (exit only device)
• Latch Bolt: Deadlocking, 3/4" (19mm) throw
• Device Centerline from Finished Floor: 39 13/16" (1011 mm); 39 11/16" (1008 mm) with Mullion
• Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
• Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar Neutral – 3 13/16" (97 mm); Pushbar Depressed – 3 1/16" (78 mm)
