Von Duprin CD9847EO 3 US28 Grade 1 CVR Exit Device 628

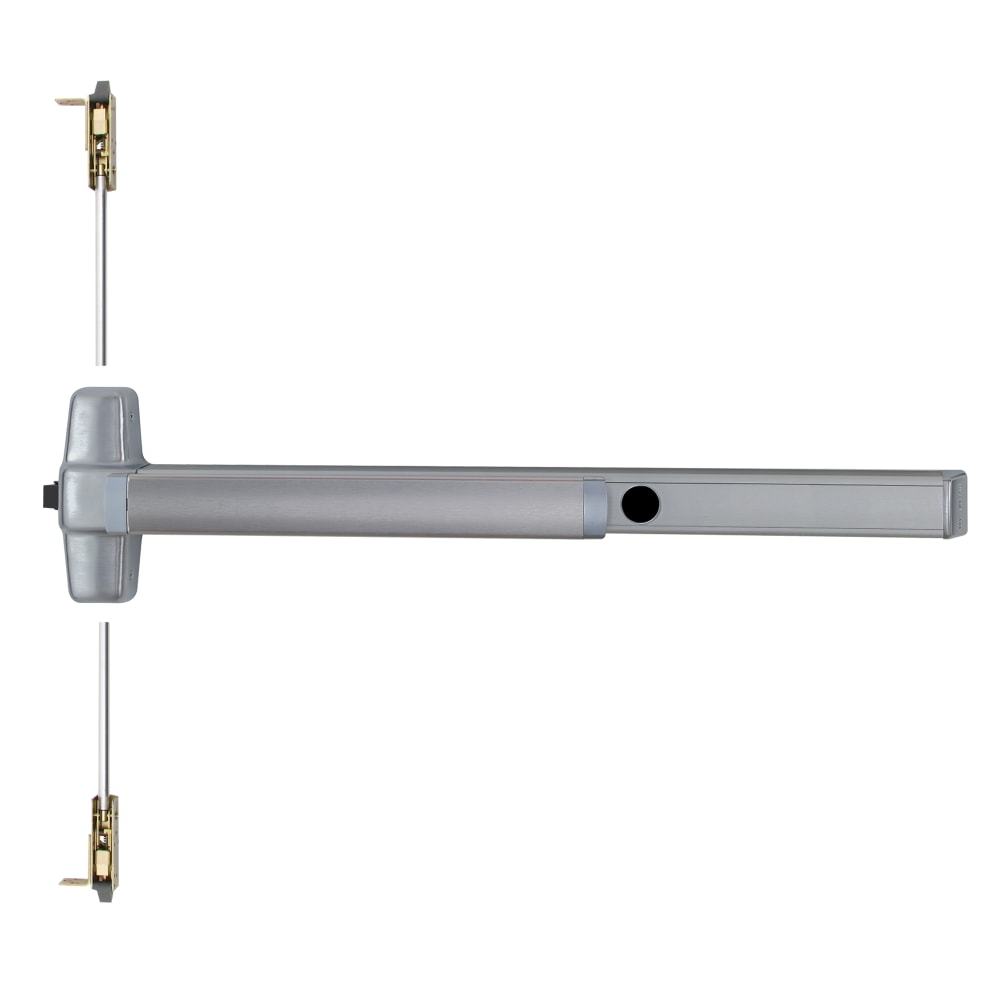

Von Duprin CD9847EO 3 US28 Grade 1 CVR Exit Device 628 is designed for robust security and reliable performance in commercial settings. This Grade 1 concealed vertical rod exit bar features a wide stile pushpad and is suitable for door heights ranging from 80" to 100". With a length of 36", this exit device is perfect for both single and double metal doors, ensuring compliance with UL standards for panic exit hardware. The CD9847EO model boasts cylinder dogging capability while being delivered without a cylinder, allowing for customizable installation. The device is field reversible, making it adaptable to various door configurations. It includes adjustable vertical rods, with the top rod adjustable from 6'8" to 8'4" and the bottom rod adjustable from 35 5/8" to 49 5/8". Constructed with a satin aluminum clear anodized finish, it not only offers durability but also an appealing aesthetic. The deadlocking latch bolt provides increased security with a 5/8" throw. This device is ANSI A156.3 – 2008 Grade 1 certified, ensuring it meets high industry standards. Ideal for environments where safety and swift egress are paramount, the Von Duprin CD9847EO exit device is a reliable choice for professionals looking to enhance their building's security.

Grade 1 CVR Exit Device 628

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Device, 80" to 100" Door Height, Exit Only, Cylinder Dogging, Less Cylinder, Satin Aluminum Clear Anodized Finish, Field Reversible

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

The 9847 device has a smooth mechanism case.

The 9847 Series is for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 2' 2' (610 mm) Door size 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5 /8" (16mm) throw
• Door undercut: 1 /4" (7mm) recommended
• Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
• Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
