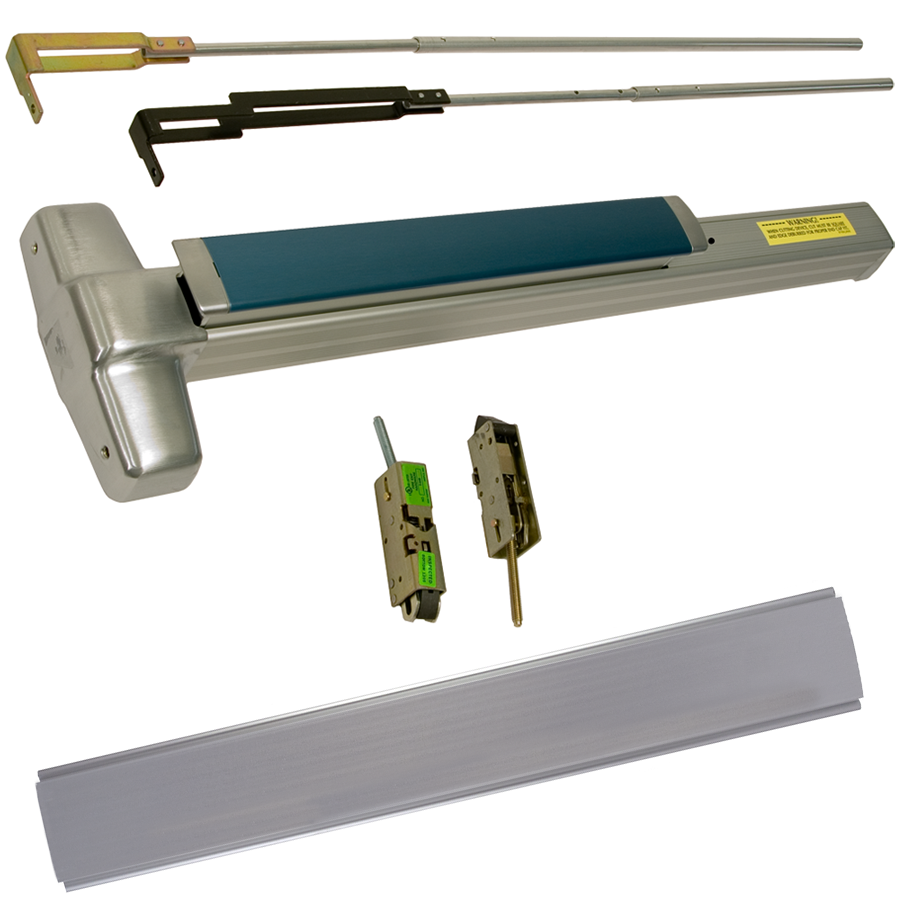

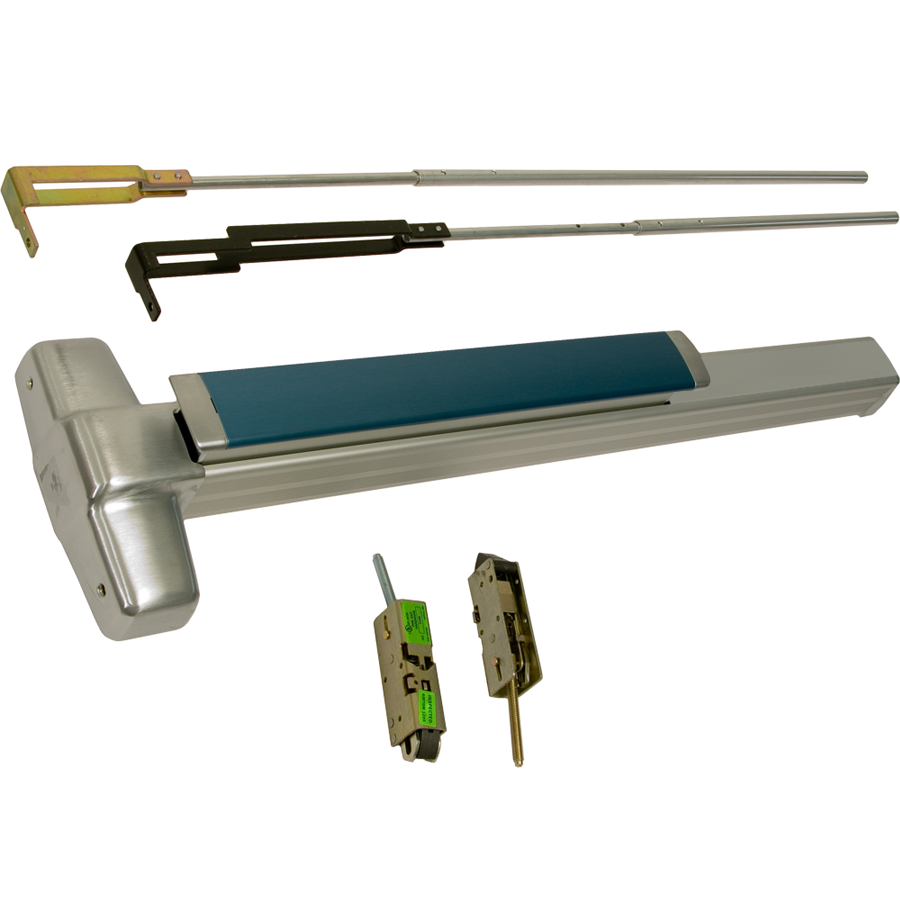

Von Duprin LD-9847EO-626-36 CVR Concealed Vertical Rod Exit Device, 36in-100in, Grade 1, Satin ChromeVon Duprin LD-9847EO-626-36 KIT is a versatile concealed vertical rod exit device designed for both single and double metal doors. This Grade 1 panic exit hardware is UL listed, ensuring it meets the highest safety standards. With a sleek satin chrome finish (626/US26D), it blends seamlessly into any commercial environment while providing reliable performance. This exit device features a less dogging mechanism, allowing for a streamlined design that is both functional and aesthetically pleasing. The device length accommodates doors ranging from 36 inches to up to 100 inches, making it adaptable for various applications. The centerline from the finished floor is adjustable, providing flexibility during installation. The LD-9847EO is equipped with deadlocking top and bottom bolts, offering a robust 5/8-inch throw for enhanced security. Enhancements such as adjustable vertical rods allow for a precise fit, and it includes a comprehensive screw pack suitable for 1 3/4-inch to 2 1/4-inch thick doors. Various electrical and mechanical options are available, including monitor switches and cylinder dogging, ensuring this device meets the specific needs of your facility. Choose the Von Duprin LD-9847EO-626-36 KIT for a reliable, safe, and stylish solution to your exit hardware requirements.
KIT - Less Dogging, CVR Concealed Vertical Rod Exit Device, Exit Only No Trim, 36in x up to 100in, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case. The concealed vertical rod device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).
Specifications:
- Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
- Device Lengths:
- 2" - 2" (610 mm) Door size (shipped less UL label)
- 3" - 2"4" to 3" (711mm to 914 mm) Door size
- 4" - 2"10" to 4" (864 mm to 1219 mm) Door size
- Device Centerline from Finished Floor: 39 5/8" (1006 mm) Standard adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
- Center Case: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
- Mechanism Case: 2-1/4" x 2-1/4" (57mm x 57mm)
- Projection:
- Push bar neutral – 3-13/16" (97 mm)
- Push bar depressed – 3-1/16" (78 mm)
- Latch bolt: Deadlocking top & bottom bolt, 5/8" (16mm) throw
- Door undercut: 1/4" (7mm) recommended
- Top and Bottom Latch Case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
- Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
- Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
- Electrical Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- RX2: Double request to exit
- E: Electric locking and unlocking trim
- EL: Electric latch retraction
- ESL: Emergency secure lockdown
- QEL: Quiet electric latch retraction
- SS: Signal switch
- CX: Chexit delayed exit
- ALK: Alarm exit kit
- WP-RX: Waterproof request to exit
- CON: Allegion Connect
- Mechanical Options:
- -2: Double cylinder
- -2SI: Double cylinder with security indicator
- GBK: Glass bead kit
- LBR: Less bottom rod
- PL: Pullman latch
- PN: Pneumatic latch retraction
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- Dogging feature: Hex key dogging standard
- Dogging options:
- CD: Cylinder dogging
- CD-CX: Chexit cylinder dogging
- CDSI: Cylinder dogging with security indicator
- HDSI: Hex dogging with security indicator
- SD: Special center case dogging
- LD: Less dogging
- DI: Dogging indicator
- CI: Cylinder dogging indicator
- Strikes:
- Top – 338 – Unfinished
- Bottom – 385A – Unfinished
Standard Trim:
- EO: No outside trim. Exit only
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim and 1-1/4" mortise cylinder
- NLOP: Night latch. Key retracts latchbolt, pull required
- TP: Thumbpiece
- Key locks and unlocks
- Rim and 1-1/4" mortise cylinder
- TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- K/L: Knob/Lever
- Key locks and unlocks
- Rim and 1-1/4" mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- KDT/LDT: Knob/lever dummy trim. Pull when dogged
- KNL/LNL: Knob/lever, night latch
- Key retracts latchbolt
- Rim and 1-1/4" mortise cylinder
- Handed, reversible lever
- KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks (use with DT trim)
- 1-1/4" mortise cylinder
- TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- TLOP: Turn lever, optional pull
- HL: Hospital latch
- Key locks and unlocks
- 1-1/4" mortise cylinder
Finishes:
- 605 - Bright Brass
- 606 - Satin Brass
- 612 - Satin Bronze
- 613 - Satin Bronze-Oil Rubbed
- 625 - Bright Chrome
- 626 - Satin Chrome
- 626-AM - Satin chrome, Antimicrobial coating
- 643e - Aged Bronze
- 693 - Painted Black
- 721 - Bright Brass
- 728 - Satin Brass
Features
- Top – 338 – Unfinished
- GBK: Glass bead kit
- -2SI: Double cylinder with security indicator
- DI: Dogging indicator
- -2: Double cylinder
- PN: Pneumatic latch retraction
- Latch bolt: Deadlocking top & bottom bolt, 5/8" (16mm) throw
- CD-CX: Chexit cylinder dogging
- Center Case: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
- WP-RX: Waterproof request to exit
- E: Electric locking and unlocking trim
- SS: Signal switch
- CI: Cylinder dogging indicator
- Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
- ESL: Emergency secure lockdown
- Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
- Push bar depressed – 3-1/16" (78 mm)
- LX: Latch bolt monitor switch
- 2" - 2" (610 mm) Door size (shipped less UL label)
- Electrical Options:
- Strikes:
- Bottom – 385A – Unfinished
- SEC: Security screws
- 3" - 2"4" to 3" (711mm to 914 mm) Door size
- Door undercut: 1/4" (7mm) recommended
- Projection:
- RX: Request to exit
- LD: Less dogging
- 4" - 2"10" to 4" (864 mm to 1219 mm) Door size
- ALK: Alarm exit kit
- Push bar neutral – 3-13/16" (97 mm)
- EL: Electric latch retraction
- SNB: Sex bolts
- CON: Allegion Connect
- QEL: Quiet electric latch retraction
- Mechanical Options:
- Mechanism Case: 2-1/4" x 2-1/4" (57mm x 57mm)
- PL: Pullman latch
- Device Lengths:
- CDSI: Cylinder dogging with security indicator
- CX: Chexit delayed exit
- Device Centerline from Finished Floor: 39 5/8" (1006 mm) Standard adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
- Top and Bottom Latch Case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
- HDSI: Hex dogging with security indicator
- SD: Special center case dogging
- Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
- Dogging feature: Hex key dogging standard
- Dogging options:
- LBR: Less bottom rod
- CD: Cylinder dogging
- RX2: Double request to exit
- WH: Weep holes
Attributes
Ship via: No UPS - Common Carrier Only
Alternate Codes: LD-9847EO-626-36, VONLD9847EO-626-36
Category: Commercial Electric Locks, CVR Panic Devices, Electric Locks, Glass Aluminum Hardware, Lock Sets, Narrow Style Electric Locks, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Standalone/Pushbutton Locks
Certifications: A156.3, ANSI, ANSI/UL 305, BHMA
Device Width: 36"
Dogging: LD - Less Dogging
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Concealed Vertical Rod Exit CVR
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Exit Only
Grade: Grade 1
Manufacturer: Von Duprin
Series: 98/99
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
