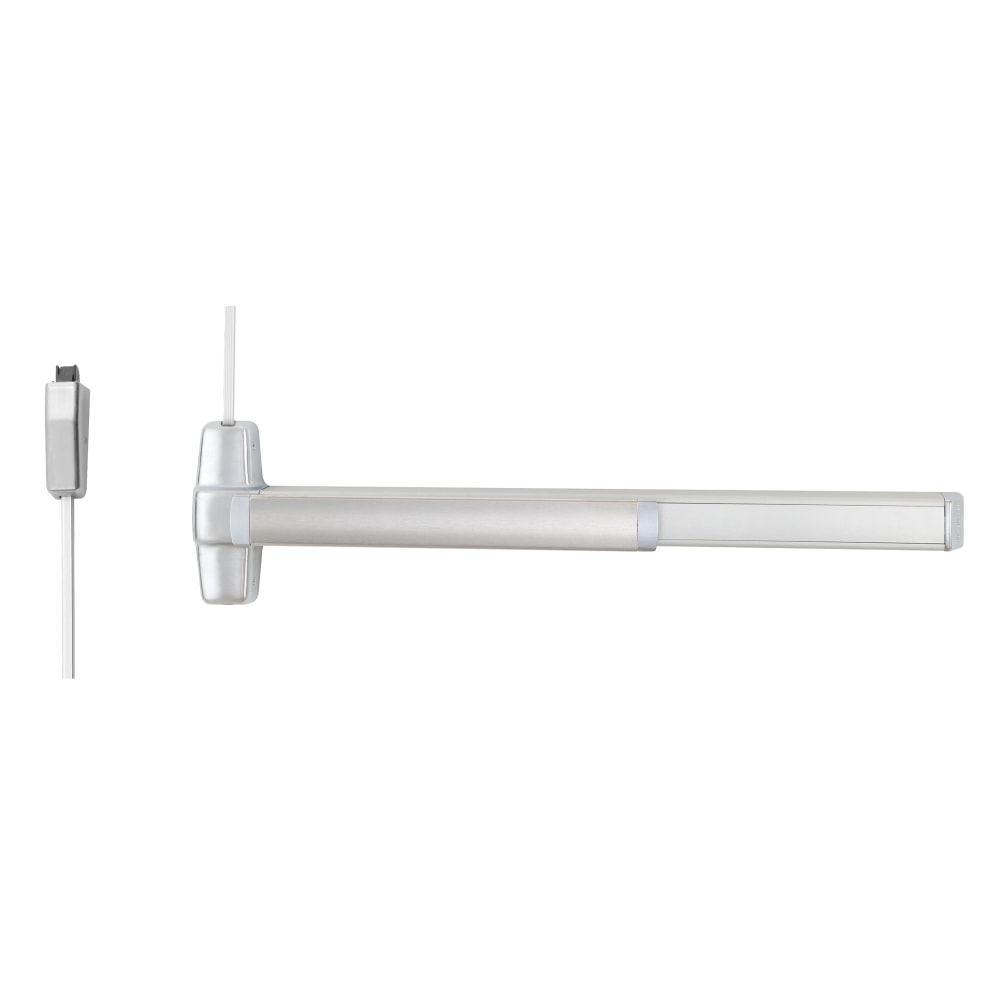

Von Duprin LD9827EO 3 26D LBR Grade 1 SVR Exit Device 626 is a premium surface vertical rod exit bar designed for reliability and ease of use in commercial settings. This Grade 1 exit device features a wide stile pushpad and is suited for doors up to 84 inches in height. With a panic device rating, it ensures safe egress during emergencies, meeting UL listing standards for panic exit hardware. This versatile unit accommodates both single and double doors, with compatibility for stock hollow metal doors featuring 86 or 161 cutouts. The LD9827EO is field reversible, allowing for flexibility in installation and operation. The robust construction includes a deadlocking anti-friction latch bolt with a 5/8-inch throw, ensuring durability and security. The device is shipped without trim and bottom rods, making it customizable according to specific needs. It has a smooth mechanism case and is ANSI/BHMA A156.3 certified. The top and bottom rods are made from 1/2-inch square tubing, suitable for standard 7-foot doors, with extension rods available for taller installations. With a sleek satin chrome finish, the Von Duprin LD9827EO combines functionality and aesthetic appeal, making it an ideal choice for modern commercial environments.
Grade 1 SVR Exit Device 626
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Panic Device, 84" Door Height, Exit Only, Less trim, Less Bottom Rod, Less Dogging, Satin Chrome Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Covers stock hollow metal doors with 86 or 161 cutouts.
9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Mechanical Options: Less Bottom Rod
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9827 Series Surface Vertical Rod Exit Device
Ship Weight: 18 lbs.
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 299
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
