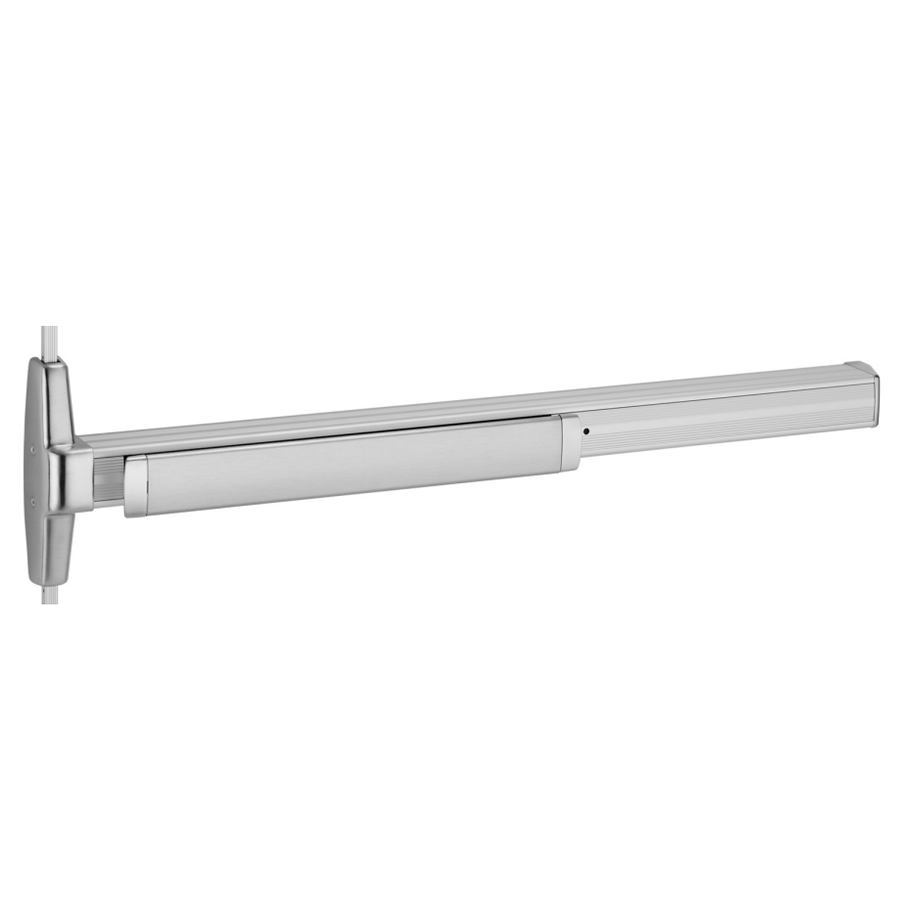

Von Duprin PA-3527A-EO-626-36 Narrow Stile SVR Surface Vertical Rod Exit Device, 36in x 84in, Satin Chrome

Von Duprin PA-3527A-EO-626-36 Narrow Stile SVR Surface Vertical Rod Exit Device offers a robust solution for high-traffic environments requiring reliable exit mechanisms. Designed specifically for institutional applications such as schools, hospitals, and government facilities, this exit device is UL listed and meets ANSI A156.3 – 2008 grade 1 standards, ensuring top-notch security and durability. With a sleek satin chrome finish, this exit-only device fits door stiles as narrow as 1 3/4" and is equipped with hex dogging for added security. The modular design allows for easy upgrades to meet evolving technology needs, making it an adaptable choice for any facility. The device features a deadlocking latch bolt with a 3/4" throw for enhanced security. Measuring 36 inches in width and compatible with door sizes from 32" to 84", the PA-3527A ensures a perfect fit for various installations. It includes a one-piece center case cover, enhancing its aesthetic appeal and structural integrity. Additionally, the device is designed to withstand high usage and abuse, making it ideal for demanding environments. For enhanced functionality, a range of electrified and mechanical options are available, allowing for tailored solutions to meet specific security requirements.

Narrow Stile SVR Surface Vertical Rod Exit Device, Exit Only No Trim, (PA - Pushpad Armor), 36in x 84in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

3327A and 3527A for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. The surface vertical rod device is non-handed except when the SS (signal switch) option is used. Fits door stiles as narrow as 1 3/4" (44mm). Newly designed device has a one piece center case cover.

Features:

• Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs
• Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
• A variety of field-configurable options and retrofit kits available

Specifications:

• Device Lengths:
• 3' 2'4' to 3' (711mm to 914mm) Door size
• 4' 2'10" to 4' (864mm to 1219mm) Door size
• Device Centerline From Finished Floor: 39 13⁄16" (1011mm), 39 11⁄16" (1008mm) with mullion
• Center Case: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
• Mechanism Case: 2-1/4" x 2-1/4" (57mm x 57mm)
• Projection:
• Push bar neutral - 3-13/16" (97 mm)
• Push bar depressed - 3-1/16" (78 mm)
• Latch bolt: Deadlocking, 3⁄4" (19mm) throw
• Fasteners and sex bolts (SNB): 1/4" (7mm)
• Includes 1-3/4" (44mm) - 2-1/4" (57mm) wood & metal doors
• #425 SNB furnished standard for end case
• #325 SNB furnished standard for EO (exit only device)
• Electrified Options:
• ALK: Alarm exit kit
• CX: Chexit delayed exit
• ESL: Emergency Secure Lockdown
• LX: Latch bolt monitor switch
• LX-RX: Request to exit / latch bolt monitoring
• QEL: Quiet electric latch retraction
• RX: Request to exit
• WP-RX: Request to exit, waterproof option
• RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX
• SS: Signal switch
• CON: Allegion Connect
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic
• QM: Quiet mechanical
• SG: Safety glow
• SEC: Security screws
• SNB: Sex bolts
• WH: Weep holes
• Dogging Feature:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• LD: Less dogging
• Strikes:
• 266: Top Dull black, ships standard
• 248L-4: bottom strike unfinished, for use with threshold
• 304L: bottom strike unfinished

Trim:

• EO: No Outside Trim, Exit Only
• DT: Dummy Trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim cylinder
• NL-OP: Night Latch, Operational Pull
• Key retracts latchbolt, pull required
• K/L: Lever/Knob
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• L-BE/K-BE: Lever/Knob, Blank Escutcheon
• Always operable (no cylinder)
• TP: Thumbpiece
• Key locks and unlocks
• 1-1/4" mortise cylinder
• TL-BE: - Turn Lever, Blank Escutcheon
• Blank escutcheon always operable (no cylinder)
• TL: Turn Lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TP-BE: Thumbpiece, Blank Escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)
• TL-OP: Turn Lever, Optional Pull

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 622/711 - Matte black/matte black, anodized
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome, antimicrobial
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 630AM - Satin stainless, antimicrobial
• 643e - Aged bronze
• 693 - Black, painted (not flat powder)
• 710 - Dark brown, anodized
