Von Duprin QEL2227EO 4 689 Grade 1 SVR Exit Bar - Model SP28

Von Duprin QEL2227EO 4 689 Grade 1 SVR Exit Bar SP28 is a robust and reliable solution for commercial exit requirements. This Grade 1 surface vertical rod exit bar is designed specifically for 84-inch doors and features a sleek aluminum painted finish that blends seamlessly into various building aesthetics. With its hex key dogging mechanism, the QEL2227EO ensures quiet electric latch retraction, enhancing convenience in high-traffic areas. This versatile device is suitable for both single and double doors, accommodating stock hollow metal doors with 86 or 161 cutouts and fitting door stiles as narrow as 3 5/8 inches. The non-handed design allows for easy installation and adaptability. Standing out in safety, this exit device is UL listed for Panic Exit Hardware, ensuring compliance with industry standards. The QEL2227EO is equipped with a deadlocking anti-friction latch bolt, providing secure egress while maintaining ease of use. Additional features include electric options for motorized latch retraction and compatibility with various trim types. With a limited one-year warranty and ANSI A156.3-2008 Grade 1 certification, this exit bar is a dependable choice for enhancing safety and efficiency in commercial spaces.

Grade 1 SVR Exit Bar SP28

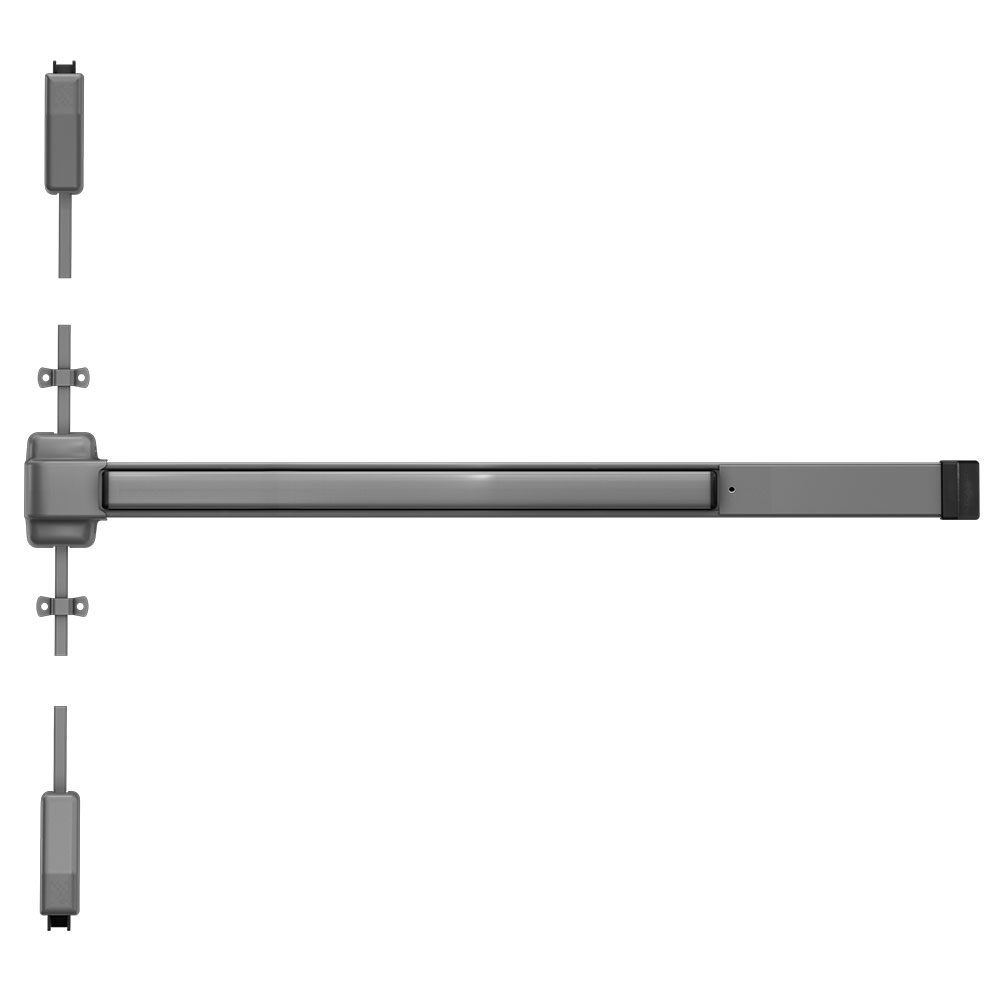

Grade 1 Surface Vertical Rod Exit Bar, 48" Device, Fits 84" Door, Exit Only, Hex Key Dogging, Quiet Electric Latch Retraction, Aluminum Painted Finish, Field Reversible

2227 Surface mounted vertical rod exit device for all types of single and double doors. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.

UL listed for Panic Exit Hardware.

 Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.

• Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device lengths: 3' (914 mm), 4' (1219 mm)
• Door height: 7' (2134 mm) standard door height extension rods available for door heights up to 10' (3048mm) 12" (205 mm), door height 36" (914 mm), door height
• Device centerline from finished floor: 39 13/16" (1011 mm)
• Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
• Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
• Projection push bar: Push bar neutral - 3 3/4" (95 mm) Push bar depressed - 3" (76 mm)
• Door undercut: 1 /4" (7 mm) from finished floor recommended , 3 /4" (19mm) maximum or 1 /8" (3mm) from threshold
• Latch bolt: Deadlocking anti-friction top and bottom bolt, 5 /8" (16 mm) throw
• Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors. Optional SNB available for device.
• Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
• Mechanical options: PL pullman latch GBK glass bead kit RG rod guards LG latch guards
• Dogging feature: Hex key dogging standard
• Dogging options: LD less dogging
• Strikes: 299 – Dull black Bottom 248L-4 and 304L – unfinished

Resources

• 2227 & 2227-F K, L, & TP Series Wood Door Template
• 2227 Series Vertical Rod Exit Device Service Manual
• 2227 Surface Vertical Rod Exit Device Service Manual
• EL for Exit Devices Data Sheet
• Von Duprin 22 ALK Alarm Kit Installation Instructions
• Von Duprin 2227 Surface Vertical Rod Device Installation Instructions
• Von Duprin Finishes Chart
