Von Duprin QEL3347AEO 3 313 Grade 1 Narrow CVR Exit 710 Door Hardware

Von Duprin QEL3347AEO 3 313 Grade 1 Narrow CVR Exit 710 offers exceptional security and convenience with its Grade 1 concealed vertical rod exit device. Designed for narrow stile applications, this pushpad exit device is perfect for both single and double doors, ensuring reliable access control in commercial settings. With an electric latch retraction feature, it eliminates the need for manual operation, enhancing both safety and ease of use. Crafted from durable dark bronze anodized aluminum, the QEL3347AEO boasts a non-handed design, making it versatile for various door configurations. The device is UL listed for panic exit hardware, meeting ANSI A156.3 – 2001 Grade 1 standards. Its adjustable vertical rods accommodate door heights from 6'8" to 8'4", with extension rod kits available for taller doors. The latch bolt features a deadlocking anti-friction design with a 5/8" throw, ensuring secure closure. Installation is straightforward, thanks to included fasteners suitable for wood and metal doors. The QEL3347AEO is the ideal choice for building professionals seeking a reliable, stylish, and efficient exit solution. With a limited warranty of three years, this exit device represents a long-term investment in safety and functionality.

Grade 1 Narrow CVR Exit 710

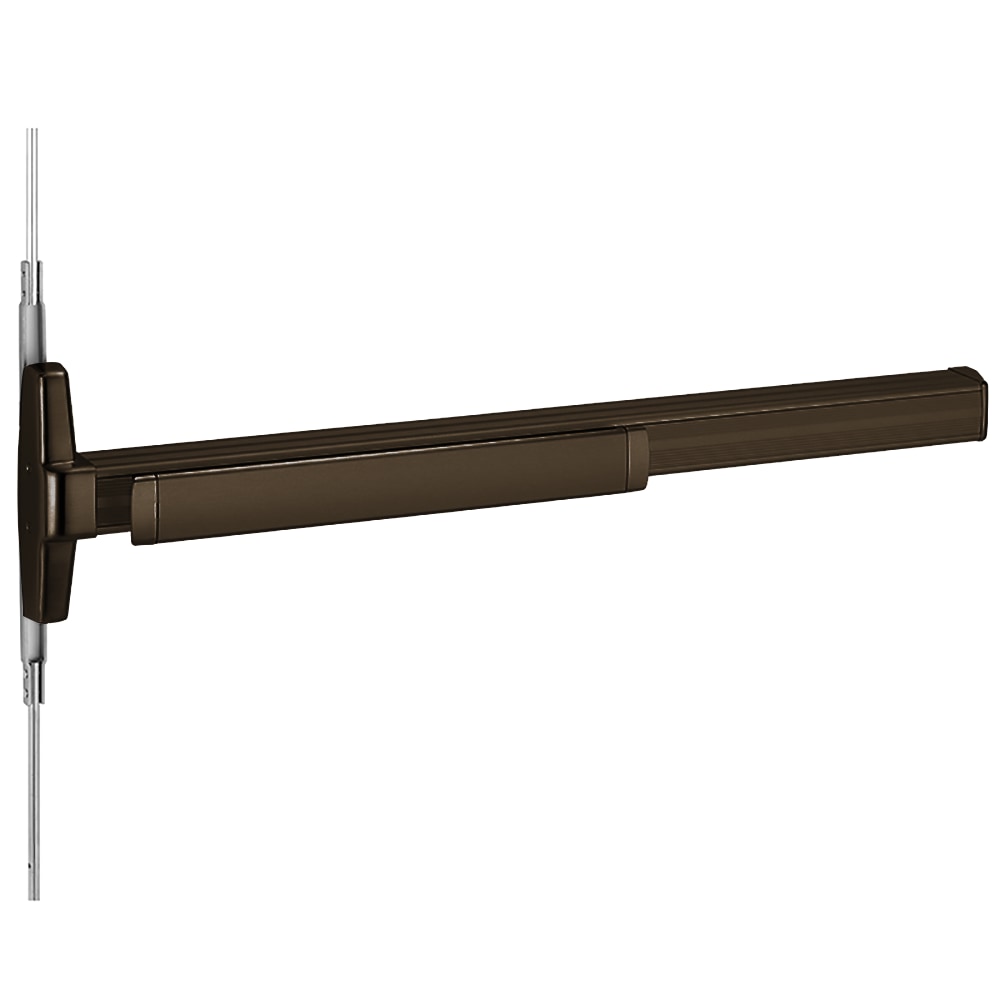

Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, Exit Only, Less Trim, 36", Less Dogging, Electric Latch Retraction, Dark Bronze Anodized Aluminum Finish, Non-Handed

3347A and 3547A for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2001 Grade 1. The 3547A has a smooth mechanism case and the 3347A has grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used. See opposite page for available outside trim and device functions.

3347A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm).

3347A is for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2001 Grade 1 and the 3347A has a grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used.

Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size

Device centerline from finished floor: 39 13/16" (1006mm)

Center case dimensions: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)

Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)

Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)

Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8" (16mm) throw

Door undercut: 1 /4" (7mm)

Top & bottom latch: 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm)

Vertical rods: Round 2 piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm) Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm) Extension rod kits available for doors over 8'4" (2533mm)

Fasteners & sex bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
