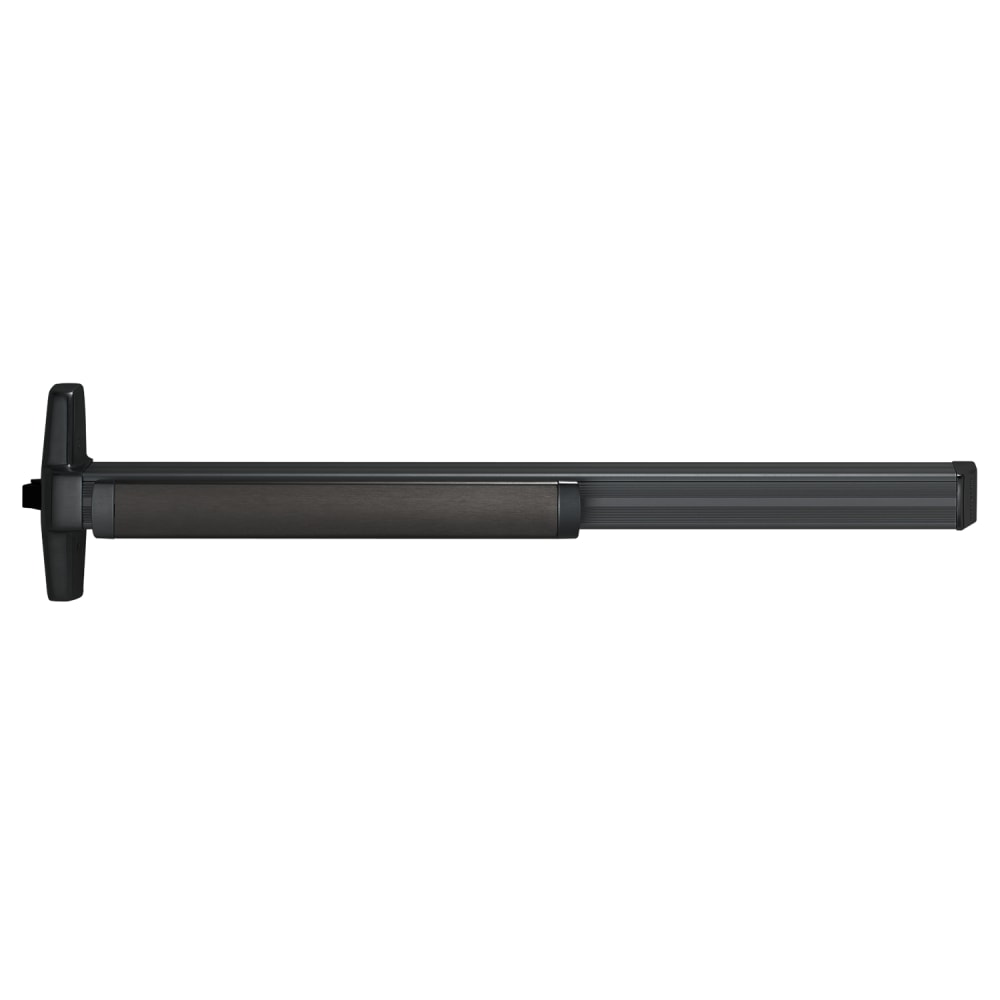

Von Duprin QEL33ANL-OP 4 315 Grade 1 Narrow Rim Exit Device 711

Von Duprin QEL33ANL-OP 4 315 Grade 1 Narrow Rim Exit 711 is a robust exit device designed for high-security applications. This Grade 1 Rim Exit Device features a narrow stile pushpad that measures 48 inches, equipped with a night latch mechanism, ensuring reliable functionality in various settings. Its black anodized aluminum finish not only enhances durability but also provides a sleek appearance. The QEL33ANL-OP is suitable for both single and double doors with a mullion and is UL listed for panic exit hardware, meeting ANSI A156.3 standards. The deadlocking latchbolt prevents forced latchbolt retraction, adding another layer of security. This non-handed device includes a hex key dogging feature and offers electric options such as quiet electric latch retraction, making it versatile for multiple environments. With a maximum door width of 48 inches and a thickness of 1-3/4 inches, this device is compatible with metal or wood doors. The center case and mechanism case dimensions ensure a perfect fit, while the device centerline stands at 39 13/16 inches from the finished floor. Ideal for commercial installations, the Von Duprin QEL33ANL-OP is backed by a three-year limited warranty, ensuring peace of mind for building professionals and homeowners alike.

Grade 1 Narrow Rim Exit 711

Grade 1 Rim Exit Device, Narrow Stile Pushpad, 48", Night Latch, No Pull, Less Dogging, Quiet Electric Latch Retraction, Black Anodized Aluminum Finish, Non-Handed

33A and 35A for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 ñ 2014 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. The rim device is non-handed except when the SS (signal switch) option is used. See opposite page for available outside trim and device functions.

The 33A Series features a grooved mechanism case and is for all types of single and double doors.

The 33A Series is UL listed for Panic Exit Device Hardware and has a deadlocking latchbolt that prevents forced latchbolt retraction providing higher security for your openings.

• Device Lengths: 3’ 2’4" to 3’ (711mm to 914 mm) door size; 4’ 2’10" to 4’ (864 mm to 1219 mm) door size
• Strikes: 1439 – Dull Black
• Dogging Feature: Hex key dogging standard
• Dogging Options: CD Cylinder Dogging; LD Less Dogging
• Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; SS Signal Switch; EL Electric Latch Retraction; ALK Alarm Exit Kit
• Miscellaneous Options: PN Pneumatic Latch Retraction; GBK Glass Bead Kit
• Fasteners & Includes Sex Bolts (SNB): 1 3/4" (44mm) – 2 1/4" (57mm) Wood & Metal Doors; #425 SNB furnished standard for end case; #325 SNB furnished standard for EO (exit only device)
• Latch Bolt: Deadlocking, 3/4" (19mm) throw
• Device Centerline from Finished Floor: 39 13/16" (1011 mm); 39 11/16" (1008 mm) with Mullion
• Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
• Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar Neutral – 3 13/16" (97 mm); Pushbar Depressed – 3 1/16" (78 mm)
