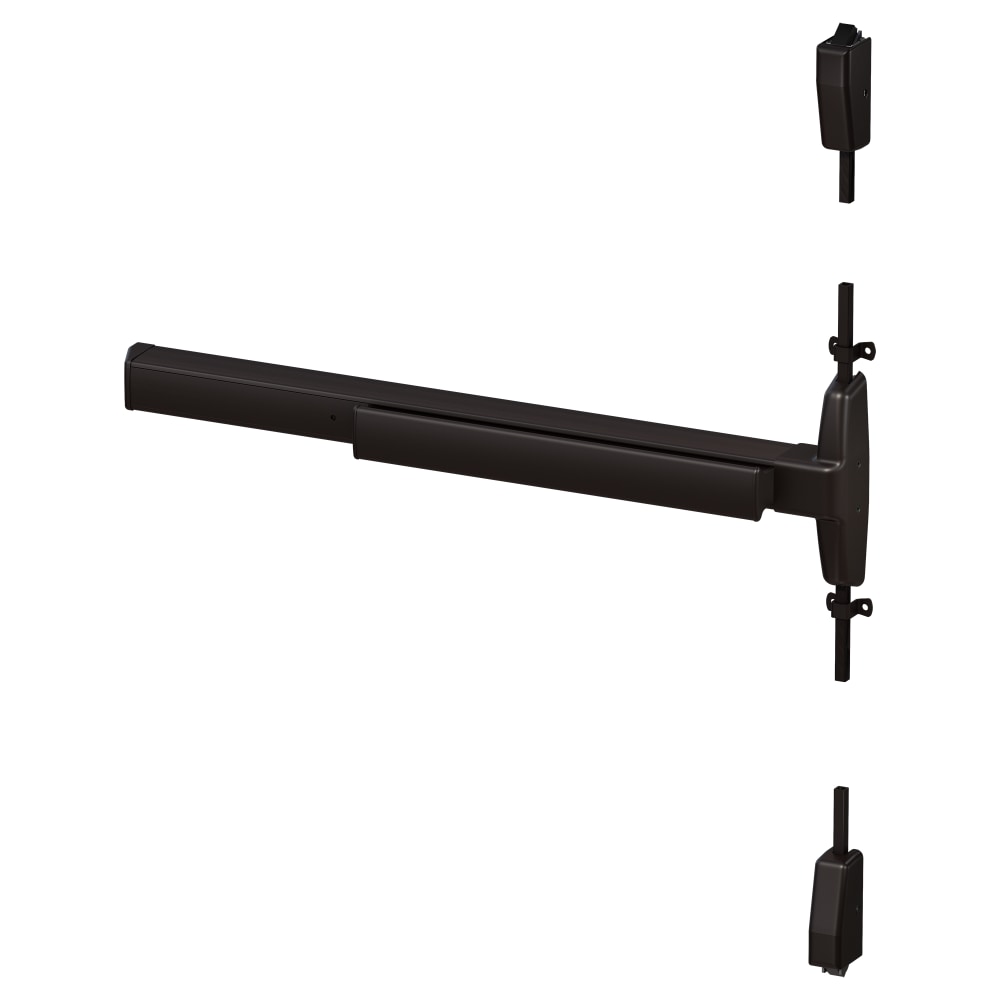

Von Duprin QEL7527NL 3 710 LHR Grade 1 Narrow SVR Exit Device

Von Duprin QEL7527NL 3 710 LHR Grade 1 Narrow SVR Exit is a top-tier surface vertical rod exit device designed for commercial applications. This Grade 1 certified unit features a narrow stile pushpad and measures 36 inches in length, making it ideal for various settings, including warehouses, offices, and retail spaces. The device incorporates a night latch and boasts Quiet Electric Latch Retraction (QEL) technology, ensuring minimal operational noise while maintaining reliable performance. Constructed from dark bronze anodized aluminum, the device is not only robust but also aesthetically pleasing. With its left-hand reverse handing, the QEL7527NL is versatile for multiple door types and thicknesses, accommodating doors up to 1-3/4 inches thick. It is available with less dogging, providing straightforward operation without compromising security. Additionally, quick shipping options cater to time-sensitive projects, while a variety of trim models and finishes allow for customization to suit specific design needs. Certified under ANSI/BHMA A156.3, 2014 Grade 1, and other relevant standards, this exit device is backed by Allegion’s reliable services and support. Whether for new installations or replacements, the Von Duprin QEL7527NL ensures safety and functionality are prioritized.

Grade 1 Narrow SVR Exit

Grade 1 Surface Vertical Rod Exit Device, Narrow Stile Pushpad, 36" Device, Less Dogging, Night Latch, Quiet Electric Latch Retraction, Dark Bronze Anodized Aluminum Finish, Left Hand Reverse

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 75 exit device is a narrow stile device that provides reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces. It's available in a wide range of device types, lever designs, options, and finishes.

Narrow stile surface vertical rod exit device at a mid-price option.

Von Duprin's 75 exit device is a narrow stile device that provides reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces. It’s available in a wide range of device types, lever designs, options, and finishes.

Von Duprin's 70 Series also can be configured with the Quiet Electric Latch Retraction (QEL) option, which provides electronic control of an exit device where limited operational noise is desired. Plus, quick shipping is an option for time-sensitive projects.

Features and Benefits

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs, and finishes
• Available in 3' and 4' lengths that are field sizeable for single and double door applications

Certifications

• ANSI/BHMA A156.3, 2014 Grade 1 certified
• ANSI/UL 10C (fire rated only)
• ANSI/UL 305
• CAN/ULC-S104 (fire rated only)
• CAN/ULC-S132

Device Types

• Rim, no suffix
• 27: surface-mounted vertical rods (SVR)
• 47: concealed vertical rods (CVR)

Exit Trim Models

• 360
• 374
• 376
• 386
• 388

Functions

• Exit Only (EO)
• Dummy trim (DT)
• Lever (L)
• Lever, blank escutcheon (LBE)
• Lever, dummy trim (LDT)
• Night latch, key retracts (NL)
• Night latch, optional pull (NLOP)
• Turn lever (TL)
• Turn lever, blank escutcheon (TLBE)

Finishes

• 605: Bright Brass
• 606: Satin Brass
• 612: Satin Bronze
• 619: Satin Nickel
• 625: Bright Chrome
• 626: Satin Chrome
• 628: Anodized Aluminum
• 630: Satin Stainless Steel
• 643e: Aged Bronze
• 710: Duranodic Dark Bronze

Resources

• Von Duprin 70 Series Catalog
• Von Duprin 75 Series Cut Sheet
• Von Duprin 75 Series Installation Instructions
