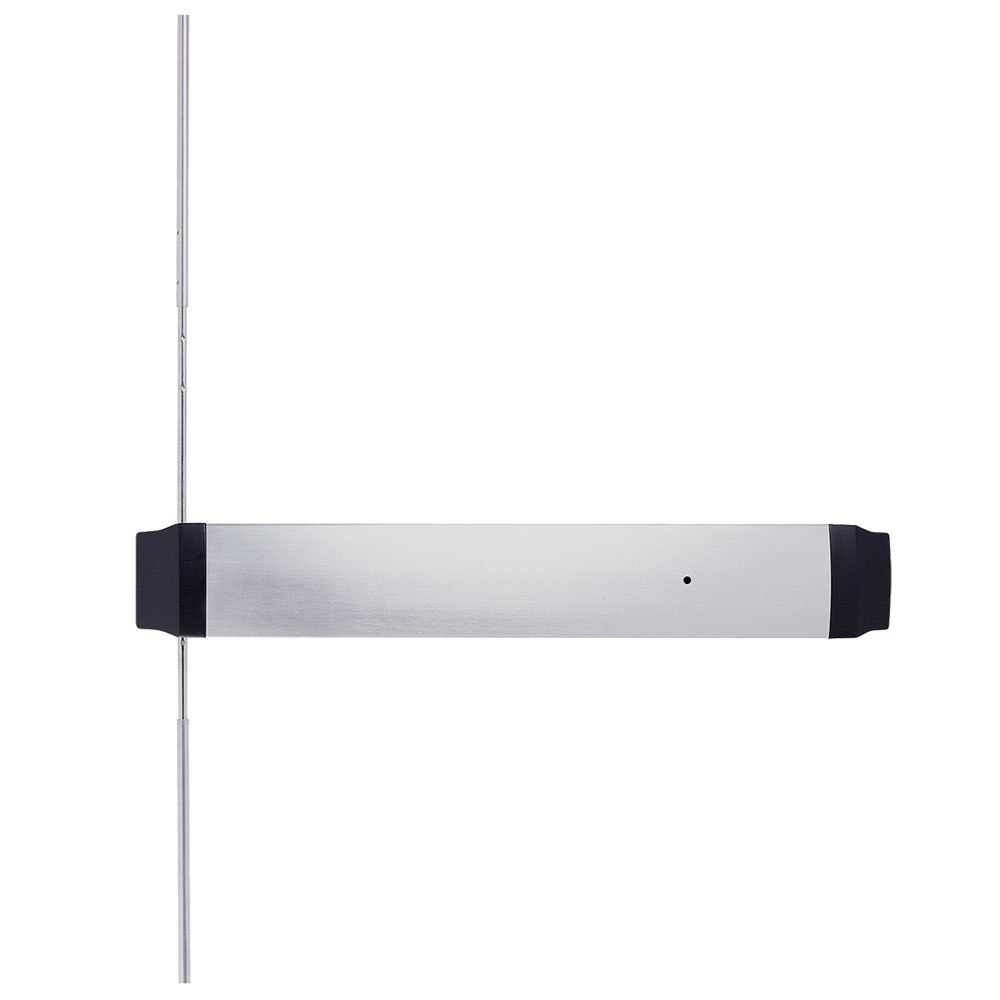

Von Duprin QEL9447EO 26D INPACT CVR Exit Device 626

Von Duprin QEL9447EO 26D INPACT CVR EXIT 626 is a cutting-edge impacted exit device designed for high-traffic environments, specifically for factory-prepped steel doors. This exit-only device eliminates the need for trim, featuring quiet electronic latch retraction that enhances accessibility while maintaining a sleek appearance in satin chrome finish. Engineered to meet stringent safety standards, the Inpact device is UL listed for panic and fire safety, ensuring reliable performance in emergency situations. With an ANSI/BHMA Grade 1 rating, it guarantees durability and security. The non-handed design facilitates easy installation, making it suitable for a variety of door configurations. The device features two-piece adjustable vertical rods, accommodating door heights from 6'8" to 8'0". Its standard 5/8" throw deadlocking latchbolt ensures secure closure, while the adjustable projection allows for a clean and efficient fit. For added convenience, the device includes fasteners for surface mounting and through bolting. With a limited 3-year warranty, the Von Duprin QEL9447EO represents a reliable choice for professionals seeking robust exit solutions. Designed for ease of use and installation, this exit device is an excellent addition to any commercial setting where safety and accessibility are paramount.

INPACT CVR EXIT 626

Inpacted Exit Device, Exit Only, No Trim, Quiet Electronic Latch retraction, Satin Chrome

94/95 Inpact concealed vertical rod device for use on factory prepped steel doors, not available for wood doors. The Inpact device is UL listed for panic and fire, ANSI/BHMA 156.3 Grade 1. The Inpact device is non-handed.

94/95 Inpact concealed vertical rod device for use on factory prepped steel doors, not available for wood doors.

The Inpact device is UL listed for panic and fire, ANSI/BHMA 156.3 Grade 1. The Inpact device is non-handed.

• Device functions Device ships EO, DT, TL, L Blank escutcheon (BE) available
• Device lengths 2'6" Up to 2'9" for 24 5/32" device 2'10" up to 4' for 30 5/32" device
• Device centerline from finished floor 39 5/8" (1006 mm)
• Projection 1 5 /8" (41 mm) neutral 1 1/4" (32 mm) depressed
• Latchbolt 5 /8" (16 mm) throw deadlocking latchbolt standard
• Door undercut 1 /4" (7 mm) maximum
• Top & bottom latch case assembly 4 1/2" X 2 1/8" x 1 1/2" (114 mm x 54 mm x 38 mm)
• Vertical rods Two-piece adjustable rods, door 6'8" (2032 mm) to 8'0" (2540 mm) can be adjusted by removing the latchside endcap
• Fasteners Included for surface mounting to recessed door prep and through bolting to trim
