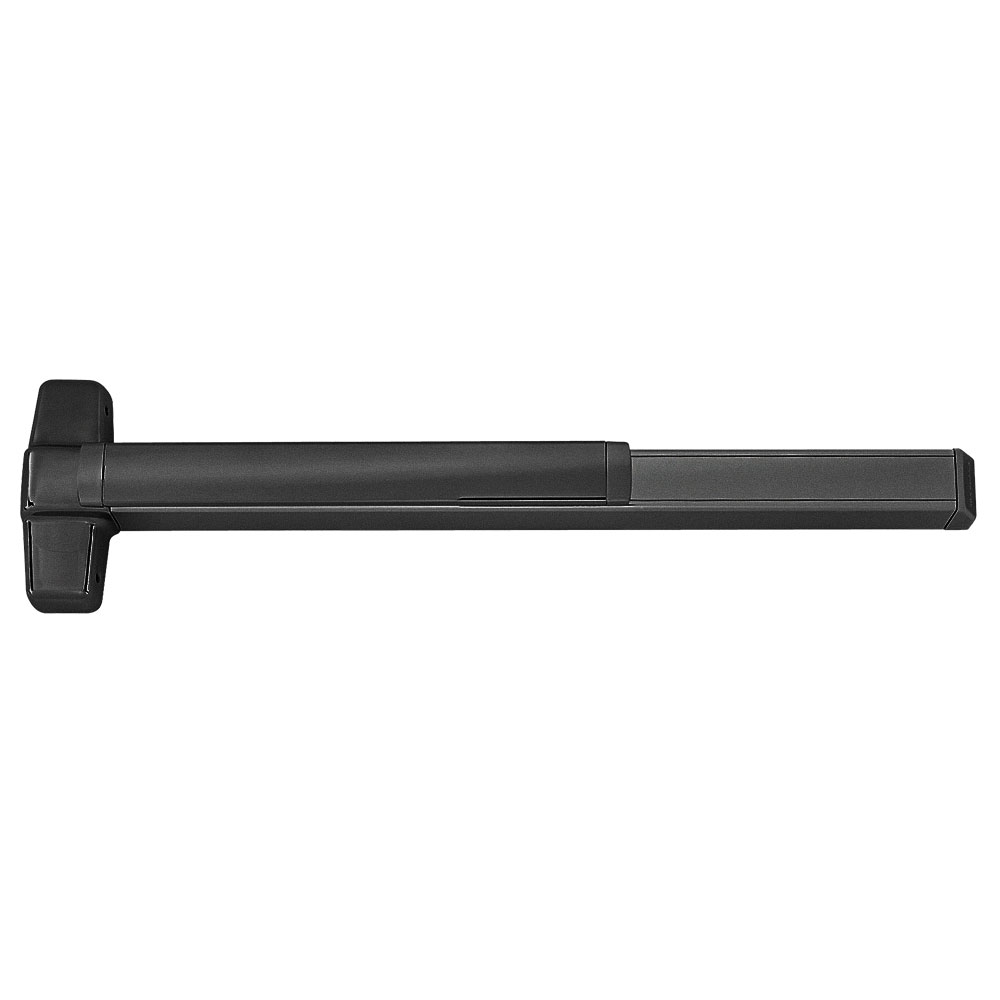

Von Duprin QEL9849EO 3 315 LBL Grade 1 CVC Exit Device 711

Von Duprin QEL9849EO 3 315 LBL Grade 1 CVC Exit Device 711 is a high-performance concealed vertical cable exit bar designed to meet the demands of commercial settings. With a length of 36 inches, this device is suitable for metal doors ranging from 82 to 96 inches in height. It features motorized latch retraction, allowing for smooth and efficient exit functionality while maintaining a sleek profile. Constructed from durable black anodized aluminum, this exit device is both aesthetically pleasing and built to withstand the rigors of everyday use. The QEL9849EO operates as an exit-only solution and is UL listed for panic exit hardware, ensuring reliability and safety for occupants in emergency situations. Its field-reversible design offers flexibility for various installation needs, while the absence of a bottom latch simplifies operation, making it ideal for high-traffic areas. This Grade 1 exit device complies with ANSI A156.3 2014 standards, guaranteeing high-quality performance. It is designed for use on single or double metal doors and supports door thicknesses between 1-3/4" and 2-1/4". Whether for a school, office, or public building, the Von Duprin QEL9849EO delivers optimal security and convenience for any commercial access control system.

Grade 1 CVC Exit Device 711

Grade 1 Concealed Vertical Cable Exit Bar, 36" Device, 82" to 96" Door Height, Exit Only, Less Bottom Latch, Motorized Latch Retraction, Less Dogging, Black Anodized Aluminum Finish, Field Reversible

9849/9949 Concealed vertical cable device for use on single or double metal doors, UL listed for panic exit hardware.

Resources

• 98/9949 Series Cable Attachment Installation Instructions
• 9849 Series Concealed Cable Exit Devices Cut Sheet
• Concealed Vertical Cable Sell Sheet
• Von Duprin Finishes Chart
