Von Duprin QELA-3347A-EO-626-36 KIT - QEL Narrow Stile CVR Concealed Vertical Rod Exit Device, 36in-100in

Von Duprin QELA-3347A-EO-626-36 KIT is a state-of-the-art Quiet Electric Latch Retraction exit device designed for narrow stile applications, providing exceptional security and convenience. With a length of 36 inches, this Grade 1 device is suitable for doors ranging from 36 inches to 100 inches in height, making it versatile enough for various institutional settings such as schools, hospitals, and government facilities. The QELA-3347A features a concealed vertical rod design that ensures a clean aesthetic while maintaining robust performance. Its modular design allows for easy upgrades, keeping pace with evolving technology and facility needs. This device is UL listed for panic exit hardware and is ANSI A156.3 – 2008 compliant, ensuring reliable functionality during emergencies. Equipped with a deadlocking anti-friction top and bottom bolt with a 5/8-inch throw, the QELA-3347A provides superior security. The adjustable vertical rods can accommodate door heights from 6'8" to 8'4", with extension kits available for taller doors. Additionally, the hex dogging feature allows for secure holding in the dogged position, enhancing usability. The sleek satin chrome finish (626/US26D) not only complements any decor but also offers durability against wear and tear. Choose Von Duprin QELA-3347A for a dependable exit solution that meets high standards of safety and aesthetics.

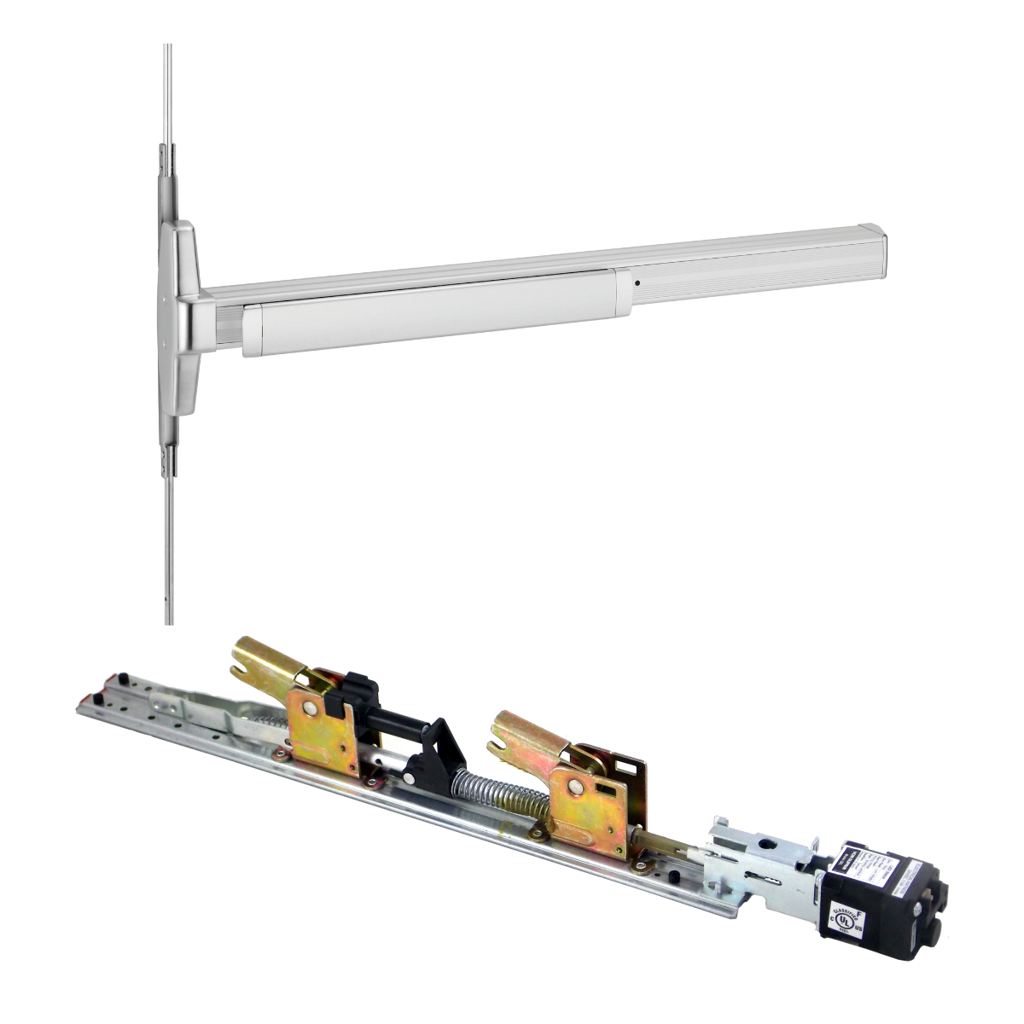

KIT - QEL (Quiet Electric Latch Retraction), Narrow Stile CVR Concealed Vertical Rod Exit Device, Exit Only No Trim, 36in x up to 100in, Grade 1, 626/US26D Satin Chrome

3347A and 3547A for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. The 3547A has a smooth mechanism case and the 3347A has grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used. 3347A/3547A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm). Newly designed device has a one piece center case cover.

Features:

• Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs
• Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
• A variety of field-configurable options and retrofit kits available

Specifications:

• Device Lengths:
• 2' 2' (610 mm) door size
• 3' 2'4' to 3' (660mm to 914mm) door size
• 4' 2'8" to 4' (813mm to 1219mm) door size
• Device Centerline From Finished Floor: 39 13/16" (1006 mm)
• Center Case: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
• Mechanism Case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3 13⁄16" (97mm)
• Push bar depressed – 3 1⁄16" (78mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16mm) throw
• Door Undercut: 1⁄4" (7mm)
• Top and Bottom Latch Case: 3-3/4" x 1-1/2" x 1" (89mm x 38mm x 25mm)
• Vertical Rods:
• Round 2 piece adjustable rods
• Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm)
• Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
• Extension rod kits available for doors over 8'4" (2533mm)
• Fasteners and Sex Bolts (SNB):
• Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood and metal doors
• #425 SNB furnished standard for end case
• #325 SNB furnished standard for EO (exit only device)
• Electrified Options:
• ALK: Alarm exit kit
• CX: Chexit delayed exit
• EL: Electric latch retraction
• ESL: Emergency Secure Lockdown
• HD-EL: Electric latch retraction with hex dogging
• LX: Latch bolt monitor switch
• LX-RX: Request to exit / latch bolt monitoring
• QEL: Quiet electric latch retraction
• RX: Request to exit
• WP-RX: Request to exit, waterproof option
• RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX
• SS: Signal switch
• CON: Allegion Connect
• Mechanical Options:
• GBK: Glass bead kit
• HH: Hurricane
• INS-2/INS-4: Insulclad kits 1/2" / 1/4" panels
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic
• SEC: Security screws
• SG: Safety glow
• SNB: Sex bolts
• WH: Weep holes
• Dogging Feature: Hex dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• LD: Less dogging
• Strikes:
• 283: top strike, For use with wood frames
• 338: Top Unfinished
• 385A: Bottom Unfinished

Trim:

• EO: No Outside Trim, Exit Only
• DT: Dummy Trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim cylinder
• NL-OP: Night Latch, Operational Pull
• Key retracts latchbolt, pull required
• K/L: Lever/Knob
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• L-BE/K-BE: Lever/Knob, Blank Escutcheon
• Always operable (no cylinder)
• TP: Thumbpiece
• Key locks and unlocks
• 1-1/4" mortise cylinder
• TL-BE: - Turn Lever, Blank Escutcheon
• Blank escutcheon always operable (no cylinder)
• TL: Turn Lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TP-BE: Thumbpiece, Blank Escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)
• TL-OP: Turn Lever, Optional Pull

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 622/711 - Matte black/matte black, anodized
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome, antimicrobial
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 630AM - Satin stainless, antimicrobial
• 643e - Aged bronze
• 693 - Black, painted (not flat powder)
• 710 - Dark brown, anodized
