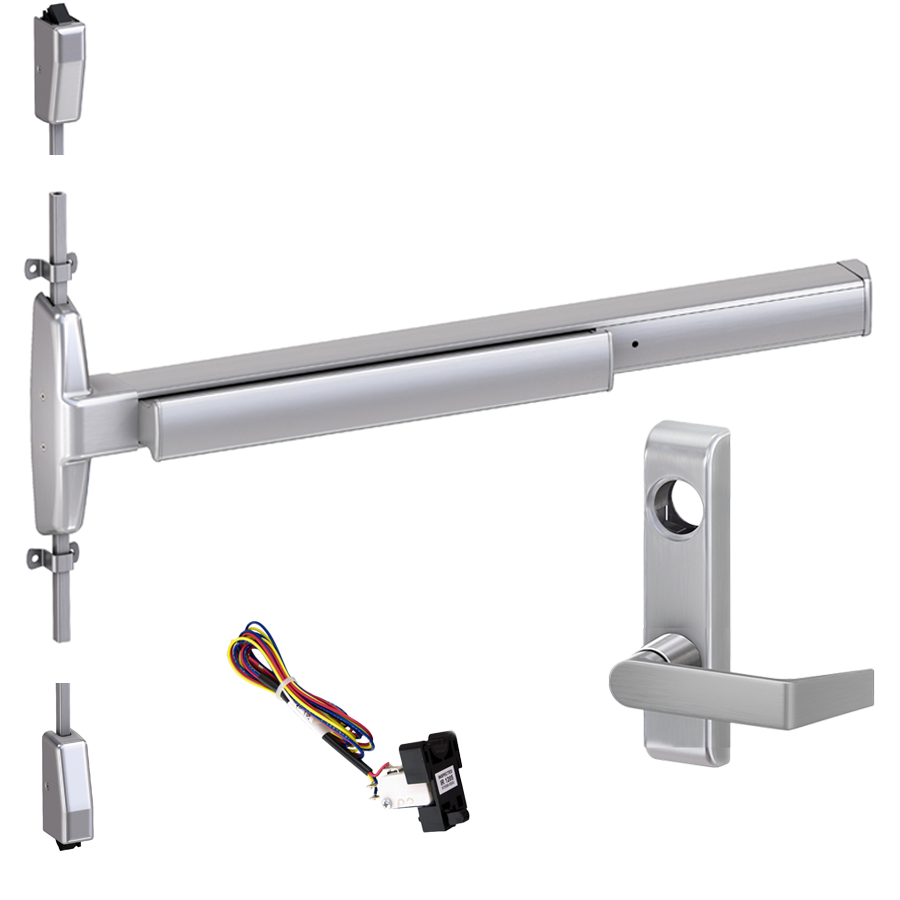

Von Duprin RX-7527L-626-48-RHR-06 KIT 75 Series Narrow Stile SVR Exit Device with RX Switch 360L-06 Trim

Von Duprin RX-7527L-626-48-RHR-06 KIT is a robust solution ideal for securing narrow stile doors with its Surface Vertical Rod (SVR) exit device design. This Grade 1 device is UL listed for panic exit hardware and certified to ANSI/BHMA A156.3 2014 standards, ensuring superior reliability and performance in emergency situations. Designed for both single and double doors, the RX-7527L features a deadlocking latch bolt with a 5/8-inch throw for enhanced security. The device offers field-selectable functions, allowing for easy customization between exit only, dummy trim, and night latch options. With a center case measuring 9" x 1-5/8" x 2-3/8", it fits seamlessly within various door styles. Installation is straightforward, as it includes a complete screw pack for 1-3/4" and 2-1/4" thick doors. The hex key dogging feature adds convenience, while the satin chrome finish (626/US26D) provides a sleek, professional look that complements any building design. The device accommodates doors sized from 2'6" to 4', making it versatile for different applications. With added features like a request to exit (RX) switch and options for electric locking, the Von Duprin RX-7527L is an excellent choice for safety and accessibility in commercial and institutional settings.

KIT - 75 Series Narrow Stile SVR (Surface Vertical Rod) Exit Device, RX (Request to Exit Switch), 360L-06 Lever Trim (Selectable Classroom or Storeroom Function) (Requires 1-1/4in Mortise Cylinder), RHR Right Hand Reverse/Reversible Handing (Snap Ring Tool Required), 48in x 84in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

The 7527 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Center Case: 9" x 1-5/8" x 2-3/8" (229mm x 41mm x 60mm)
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Latch Bolt: Deadlocking, 5/8" (15.875mm) throw
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Pushbar Length: 3' 18" (457mm), 4' 24" (610mm)
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Quiet electric latch retraction
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging Options:
• Hex key dogging standard
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes:
• 266: Top—dull black
• 248L4 & 304L: Bottom—unfinished

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, rigid - dummy trim
• Pull when dogged (not recommended for fire device)
• LBE: Lever - blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Dark brown, anodized
• 711 - Matte black
