Von Duprin RX-7547EO-626-36-ALK 75 Series Alarmed Exit Device, CVR, RX, 36in x 96in, Grade 1, Satin Chrome

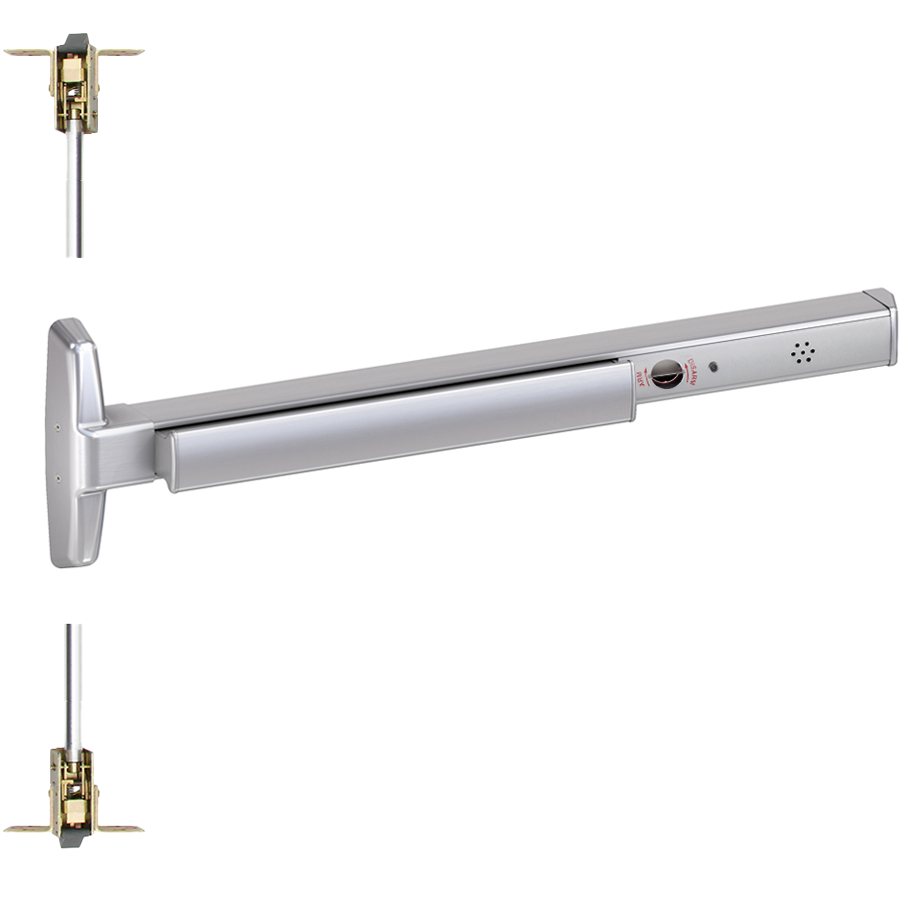

Von Duprin RX-7547EO-626-36-ALK KIT is a sophisticated, alarmed exit device designed for narrow stile doors, enhancing safety and security in commercial environments. This Grade 1 device features a concealed vertical rod (CVR) exit mechanism, making it an ideal choice for both single and double metal doors. With its sleek satin chrome finish (626/US26D), it seamlessly integrates into modern architectural styles. Engineered to comply with ANSI/BHMA A156.3 2014 standards, the RX-7547EO model ensures reliable performance in panic situations. The device functions as exit only (EO), allowing for quick egress without external trim. It accommodates door sizes ranging from 2' 6" to 4', with adjustable heights for precise installation. The mechanical components include a deadlocking latch bolt with a generous 5/8" throw for added security. Electrified options like the RX request-to-exit switch provide enhanced control, while the device's design allows for easy field selection of functions. This system is UL listed for panic exit hardware and is compatible with various door thicknesses up to 2-1/4". Whether securing a commercial facility or enhancing safety in public buildings, the Von Duprin RX-7547EO-626-36-ALK KIT delivers unmatched reliability and peace of mind.

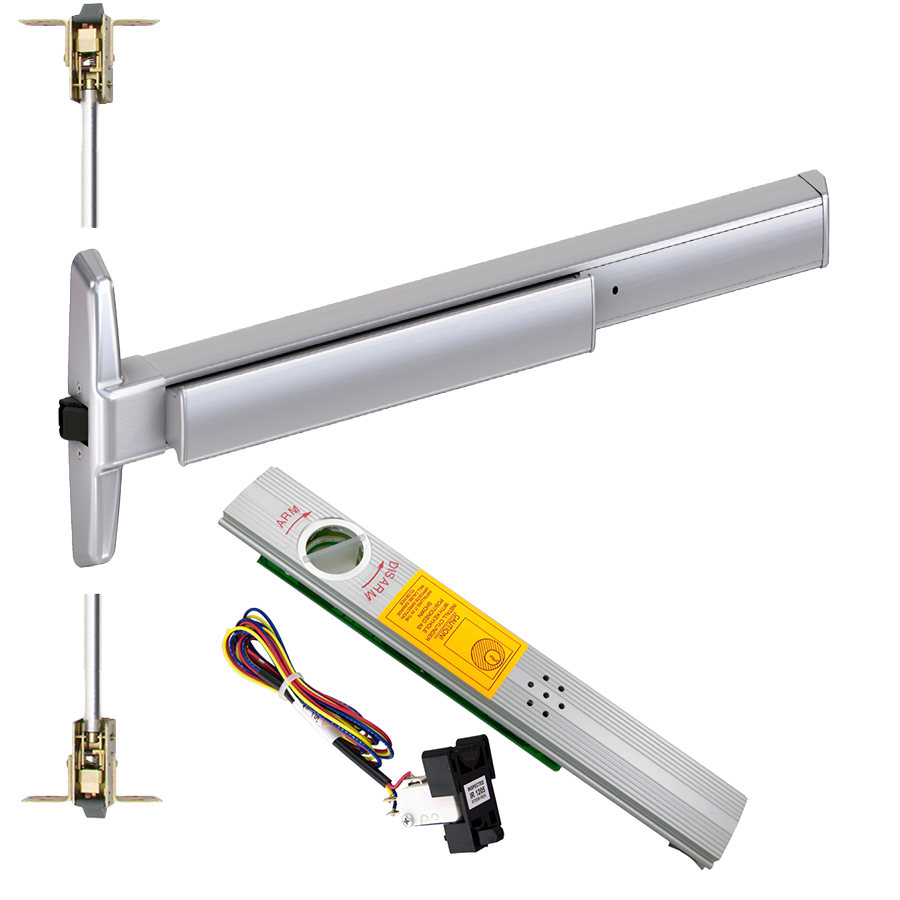

KIT - 75 Series Narrow Stile Alarmed (Requires 1-1/4in Mortise Cylinder), CVR (Concealed Vertical Rod) Exit Device, RX (Request to Exit Switch), Exit Only No Trim, 36in x Up to 96in, No Dogging, Grade 1, 626/US26D Satin Chrome

The 7547 concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. These are certified to ANSI/BHMA A156.3 2014, grade 1.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Center Case: 9" x 1-5/8" x 2-3/8" (229mm x 41mm x 60mm)
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Latch Bolt: Deadlocking, 5/8" (15.875mm) throw
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Pushbar Length: 3' 18" (457mm), 4' 24" (610mm)
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Quiet electric latch retraction
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging Options:
• Hex key dogging standard
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes:
• 388: Top—Unfinished
• 385A: Bottom—unfinished

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, rigid - dummy trim
• Pull when dogged (not recommended for fire device)
• LBE: Lever - blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Dark brown, anodized
• 711 - Matte black
