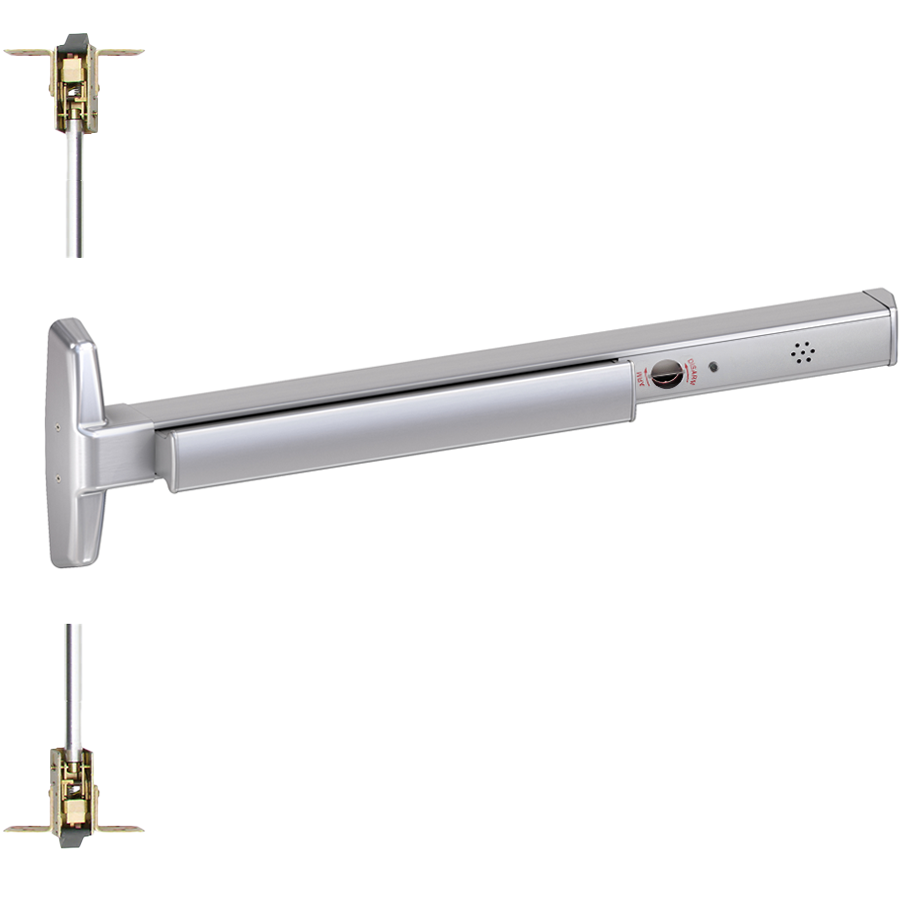

Von Duprin RX-7547EO-626-48-ALK 75 Series Narrow Stile Alarmed Exit Device, CVR, RX, Satin Chrome, Grade 1

Von Duprin RX-7547EO-626-48-ALK KIT is a reliable solution for security in commercial spaces, featuring a narrow stile alarmed exit device designed to enhance safety and accessibility. This device is UL listed for panic exit hardware and meets ANSI/BHMA A156.3 2014 grade 1 certification, ensuring durability and performance. Designed for single or double metal doors, the RX-7547EO offers a concealed vertical rod mechanism that provides a clean aesthetic while maintaining robust security. The deadlocking latch bolt has a 5/8" throw, ensuring reliable closure and security. With a device length of 48 inches, it accommodates door sizes up to 96 inches, making it versatile for various applications. Equipped with a request to exit switch (RX), this unit allows for easy egress while retaining its alarm functionality. The device’s centerline is set at 39-13/16" from the finished floor, ensuring compliance with accessibility standards. Available in a sleek satin chrome finish (626/US26D), it not only enhances security but also complements modern architectural designs. The RX-7547EO-626-48-ALK KIT includes the necessary fasteners for installation on 1-3/4" and 2-1/4" thick doors, making it a practical choice for building professionals and knowledgeable homeowners seeking reliable exit solutions.

KIT - 75 Series Narrow Stile Alarmed (Requires 1-1/4in Mortise Cylinder), CVR (Concealed Vertical Rod) Exit Device, RX (Request to Exit Switch), Exit Only No Trim, 48in x Up to 96in, No Dogging, Grade 1, 626/US26D Satin Chrome

The 7547 concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. These are certified to ANSI/BHMA A156.3 2014, grade 1.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Center Case: 9" x 1-5/8" x 2-3/8" (229mm x 41mm x 60mm)
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Latch Bolt: Deadlocking, 5/8" (15.875mm) throw
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Pushbar Length: 3' 18" (457mm), 4' 24" (610mm)
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Quiet electric latch retraction
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging Options:
• Hex key dogging standard
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes:
• 388: Top—Unfinished
• 385A: Bottom—unfinished

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, rigid - dummy trim
• Pull when dogged (not recommended for fire device)
• LBE: Lever - blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Dark brown, anodized
• 711 - Matte black

Features

• Projection:
• 39-13/16" (1011mm)
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• RX: Request to exit
• 4': 3' to 4' (914mm to 1219mm) door size
• Latch Bolt: Deadlocking, 5/8" (15.875mm) throw
• GBK: Glass bead kit
• LD: Less dogging
• Device Functions: Device ships EO/DT/NL; field selectable
• SNB: Sex bolts
• Pushbar Length: 3' 18" (457mm), 4' 24" (610mm)
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Device lengths:
• Mechanical Options:
• Pushbar neutral - 3-13/16" (97mm)
• Electrified Options:
• 388: Top—Unfinished
• LX: Latch bolt monitor switch
• Hex key dogging standard
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• E: Electric locking and unlocking trim; no cylinder override
• Strikes:
• ALK: Quiet electric latch retraction
• Pushbar depressed - 3-1/16" (78mm)
• Dogging Options:
• QEL: QEL options available
• 3': 2' 6" to 3' (762mm to 914mm) door size
• Device centerline from finished floor:
• 385A: Bottom—unfinished
• SEC: Security screws
• LBR: Less bottom rod
• CD: Cylinder dogging
• Center Case: 9" x 1-5/8" x 2-3/8" (229mm x 41mm x 60mm)
• 39-11/16" (1008mm) with mullion
• WH: Weep holes
