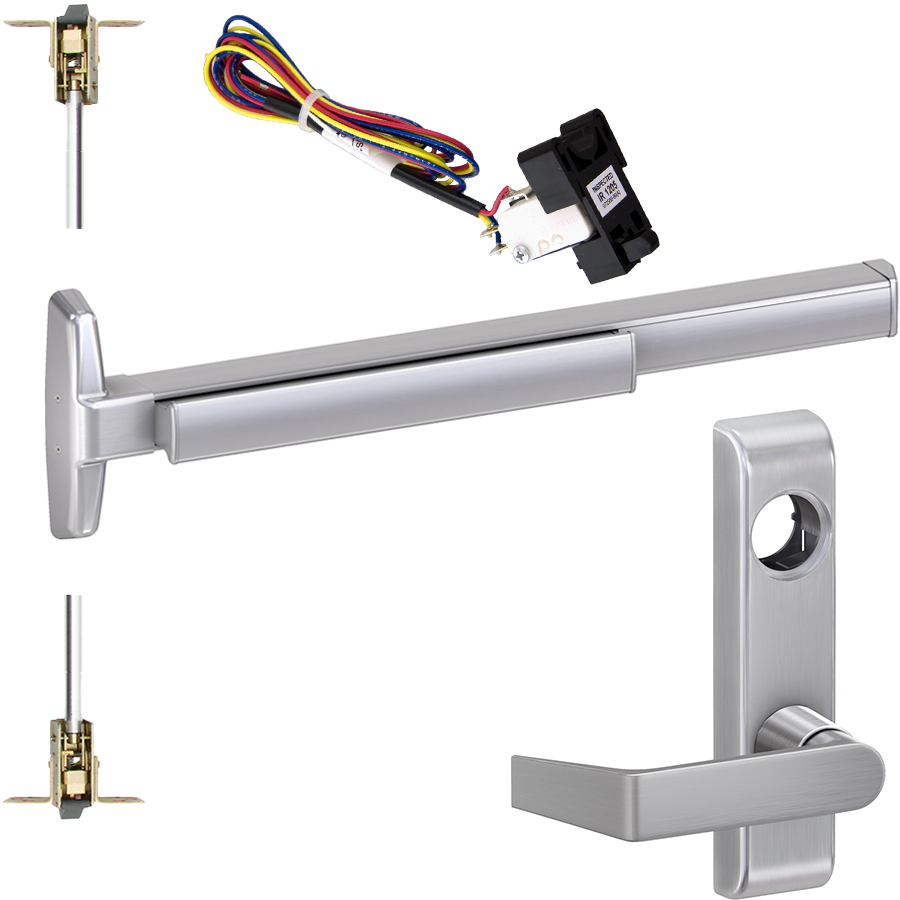

Von Duprin RX-7547L-F-626-36-LHR-06 75 Series Fire-Rated CVR Exit Device with RX Switch 360L-06 Lever Trim

Von Duprin RX-7547L-F-626-36-LHR-06 KIT is a robust narrow stile fire-rated exit device designed to enhance security and safety in commercial buildings. Featuring a concealed vertical rod mechanism, this device is ANSI/BHMA A156.3 certified and UL listed for fire exit hardware, ensuring reliability in emergencies. The RX-7547L's left-hand reversible handing allows for versatile installation, while its sleek satin chrome finish offers a modern aesthetic that complements various architectural styles. With a device length suitable for doors ranging from 2' 6" to 4', this exit device is ideal for both standard and wide door applications. The deadlocking latch bolt provides added security with a 5/8" throw, while the device's centerline height of 39-13/16" from the finished floor ensures compliance with accessibility standards. The RX model includes a request to exit (RX) switch for enhanced convenience and safety. Designed without mechanical dogging, the RX-7547L is equipped with a pushbar that projects 3-13/16" when neutral and 3-1/16" when depressed, facilitating quick and easy egress. This exit device is perfect for buildings requiring stringent safety measures, making it a trusted choice for building professionals and informed homeowners alike.

KIT - 75 Series Narrow Stile Fire-Rated, CVR (Concealed Vertical Rod) Exit Device, RX (Request to Exit Switch), 360L-06 Lever Trim (Requires 1-1/4in Mortise Cylinder), LHR Left Hand Reverse/Reversible Handing (Snap Ring Tool Required), 36in x Up to 96in, No Dogging, Grade 1, 626/US26D Satin Chrome

The 7547-F fire exit concealed vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Center Case: 9" x 1-5/8" x 2-3/8" (229mm x 41mm x 60mm)
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Latch Bolt: Deadlocking, 5/8" (15.875mm) throw
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Pushbar Length: 3': 18" (457mm), 4': 24" (610mm)
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Quiet electric latch retraction
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• Dogging Options: No mechanical dogging
• Strikes:
• 388: Top—Unfinished
• 385A: Bottom—unfinished

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, rigid - dummy trim
• Pull when dogged (not recommended for fire device)
• LBE: Lever - blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Dark brown, anodized
• 711 - Matte black
