Von Duprin RX-7827L-626-48-LHR-06 KIT 78 Series SVR Exit Device, RX Switch, 780L-06 Lever Trim, Satin Chrome

Von Duprin RX-7827L-626-48-LHR-06 KIT is a high-performance exit device designed for both single and double doors, ensuring safety and accessibility. This 78 Series Wide Stile Surface Vertical Rod (SVR) device is UL listed for panic exit hardware and meets the rigorous ANSI/BHMA A156.3 2014 Grade 1 certification. Built for durability, it accommodates stock hollow metal doors with 86 or 161 cutouts, making it a versatile choice for various applications. The RX-7827 features a robust deadlocking latch bolt with a 5/8" throw, providing reliable security. Field-selectable device functions enable customization to suit specific needs. With adjustable lengths of 3' and 4', it can be sized accordingly for both single and double door setups. The included hex key dogging feature allows for easy operation, while optional electric and mechanical features enhance functionality with choices for request to exit switches and alarm exit kits. Finished in a sleek satin chrome, this device not only offers aesthetic appeal but also includes a variety of trim options and accessories. Designed to withstand heavy use, the RX-7827 is an excellent investment for building professionals and knowledgeable homeowners seeking high-quality security solutions.

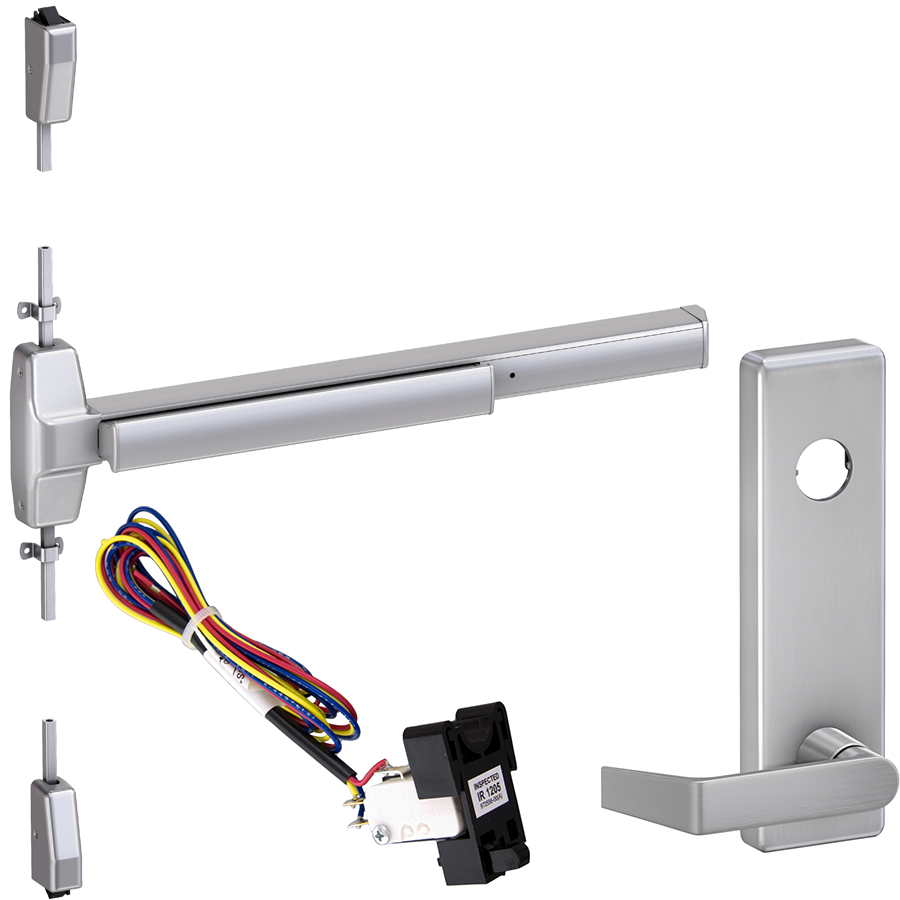

KIT - 78 Series Wide Stile SVR (Surface Vertical Rods) Exit Device, RX (Request to Exit Switch), 780L-06 Lever Trim (Requires 1-1/4in Mortise Cylinder), LHR Left Hand Reverse/Reversible Handing (Snap Ring Tool Required), 48in x 84in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

The 7827 surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

Features:

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs, and finishes
• Available in 3' and 4' lengths that are field sizeable for single and double door applications

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Device lengths:
• 3' - 2' 6" to 3' (762mm to 914mm) door size
• 4' - 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Center Case: 7-7/8" x 2-3/4" x 2-3/8" (200mm x 70mm x 60mm)
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Latch bolt: Deadlocking, 5/8" (15.875mm) throw
• Pushbar length:
• 3' - 18" (457mm)
• 4' - 24" (610mm)
• Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Alarm exit kit
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes:
• 299: Top—dull black
• 248L4/304L: Bottom—unfinished

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, dummy trim
• Pull when dogged (not recommended for fire device)
• LNL: Lever, night latch
• Key retracts latch bolt
• 1-1/4" mortise cylinder
• Handed, reversible lever
• LBE: Lever, blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Anodized aluminum
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Duranodic dark bronze
