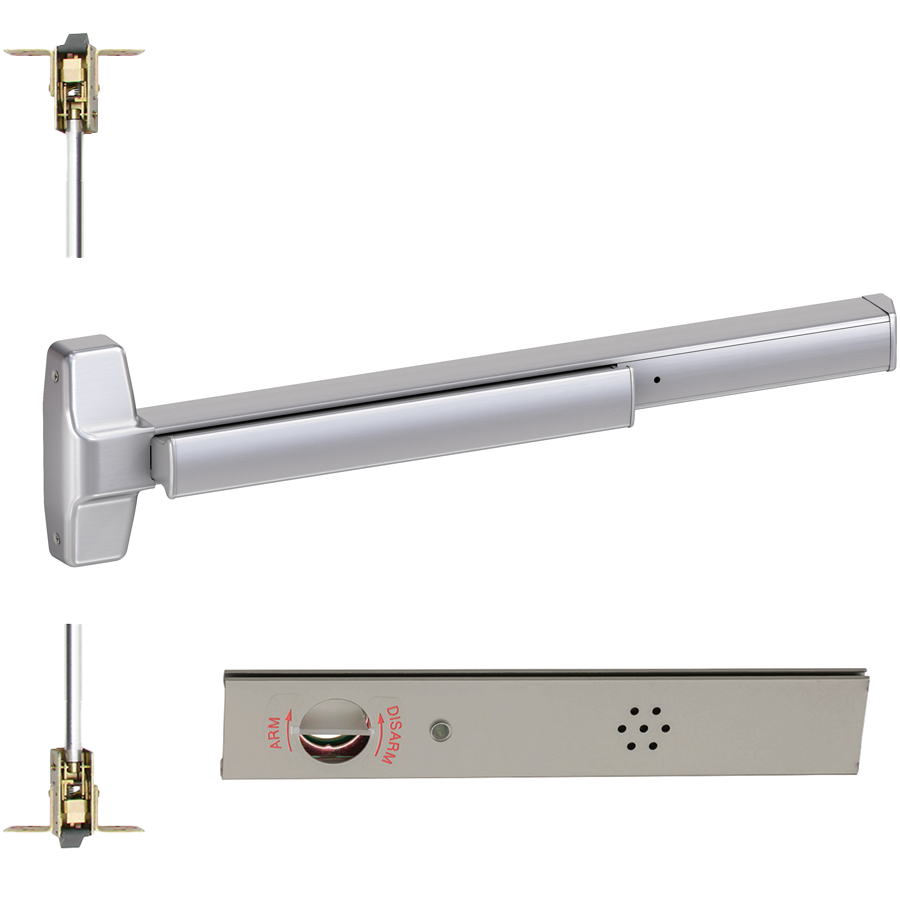

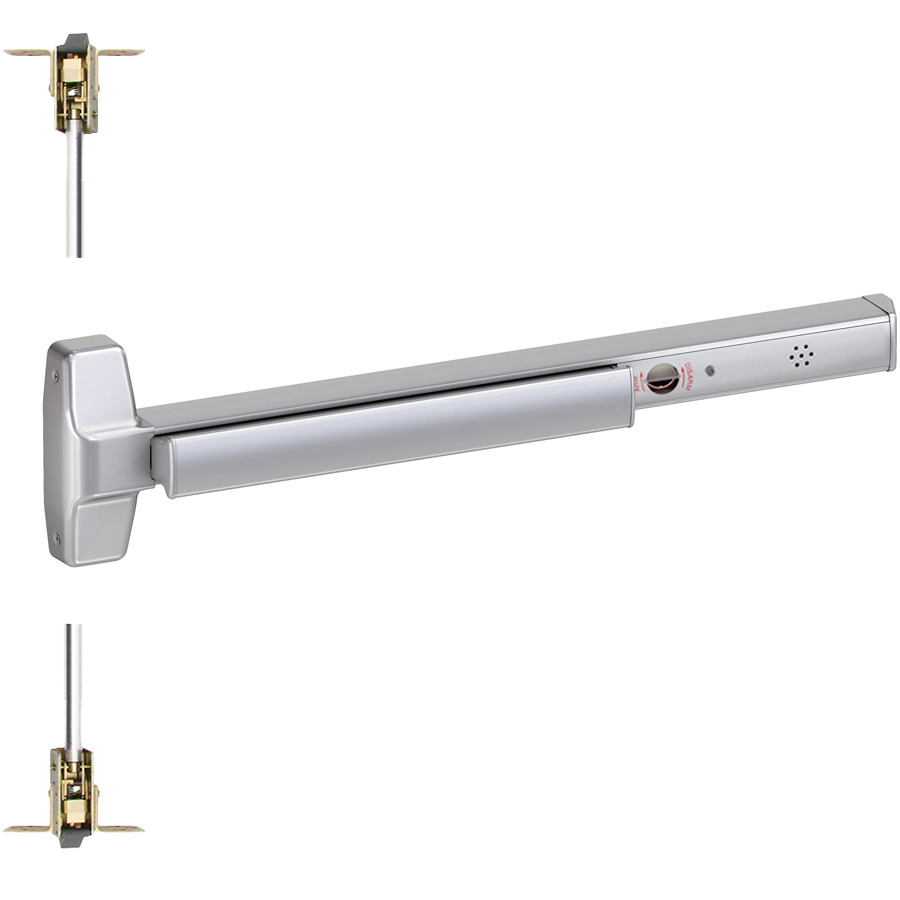

Von Duprin RX-7847EO-626-36-ALK Alarmed Exit Device Kit, CVR, RX Switch, No Trim, 36-96in, Grade 1, Satin Chrome

Von Duprin RX-7847EO-626-36-ALK KIT is an advanced alarmed exit device designed for seamless integration into single or double metal doors. This concealed vertical rod exit device features a robust construction certified to ANSI/BHMA A156.3, Grade 1, ensuring durability and reliability in high-traffic environments. With dimensions suited for doors from 36 inches up to 96 inches in height, the RX-7847EO is ideal for various commercial applications. It includes a request-to-exit switch and is designed to operate without any outside trim, providing a clean, unobtrusive look. Its deadlocking latch bolt offers a 5/8-inch throw, enhancing security upon exit. The device's design allows for field-selectable functions, making it versatile for multiple installation scenarios. It is equipped with a hex key dogging standard feature, and optional electric locking and unlocking trim can be added for further convenience. Constructed with a satin chrome finish (626), this model not only performs exceptionally but also complements modern architectural aesthetics. Backed by Allegion services and support, the Von Duprin RX-7847EO-626-36-ALK KIT is the perfect choice for those seeking a reliable and stylish exit solution that prioritizes safety and functionality.

KIT - Alarmed (Requires 1-1/4in Mortise Cylinder), CVR (Concealed Vertical Rods) Exit Device, RX (Request to Exit Switch), No Trim, 36in x Up to 96in, No Dogging, Grade 1, 626/US26D Satin Chrome

The 7847 concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. These are certified to ANSI/BHMA A156.3 2014, grade 1.

Features:

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs, and finishes
• Available in 3' and 4' lengths that are field sizeable for single and double door applications

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Center Case: 7-7/8" x 2-3/4" x 2-3/8" (200mm x 70mm x 60mm)
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Latch bolt: Deadlocking, 5/8" (15.875mm) throw
• Pushbar length:
• 3': 18" (457mm)
• 4': 24" (610mm)
• Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Alarm exit kit
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes:
• 338: Top—Unfinished
• 385A: Bottom—Unfinished

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, dummy trim
• Pull when dogged (not recommended for fire device)
• LNL: Lever, night latch
• Key retracts latch bolt
• 1-1/4" mortise cylinder
• Handed, reversible lever
• LBE: Lever, blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Anodized aluminum
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Duranodic dark bronze
