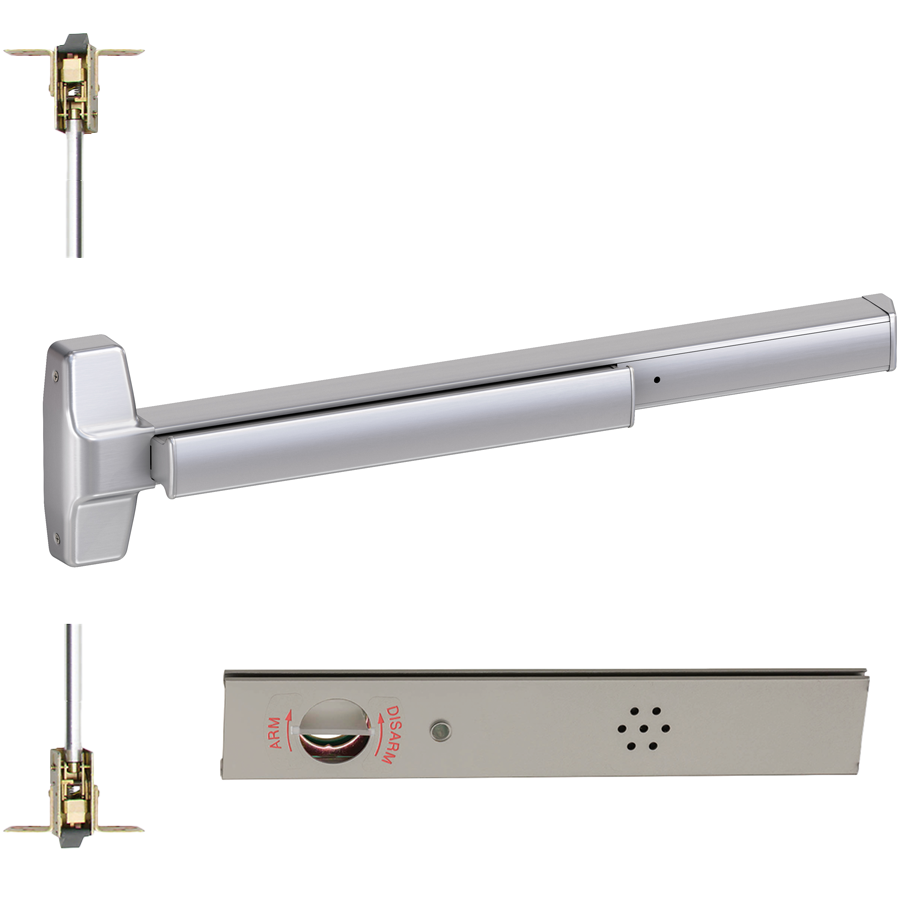

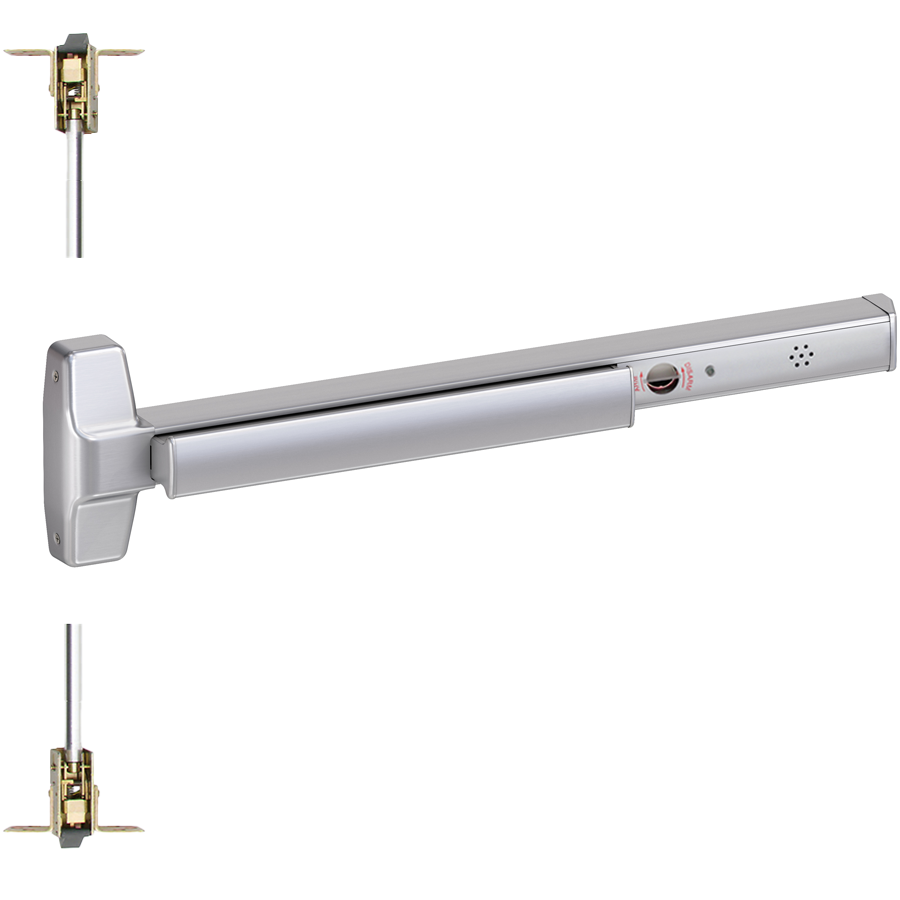

Von Duprin RX-7847EO-626-48-ALK Alarmed Exit Device Kit, CVR, RX Switch, No Trim, 48in-96in, Grade 1, Satin Chrome

Von Duprin RX-7847EO-626-48-ALK KIT is a sophisticated alarmed exit device designed for enhanced security on single or double metal doors. This concealed vertical rod device is UL listed for panic exit hardware and is certified to ANSI/BHMA A156.3 2014, Grade 1, ensuring durability and reliability in high-traffic environments. With a sleek satin chrome finish, the RX-7847EO features a field-selectable function that includes the Request to Exit (RX) switch, providing both safety and convenience. The exit device measures 48 inches in length and can accommodate door sizes ranging from 3 to 4 feet, making it versatile for various installations. Its deadlocking latch bolt with a 5/8-inch throw enhances security, while the optional alarm exit kit offers an additional layer of protection. Installation is straightforward, with included fasteners suitable for 1-3/4 inch and 2-1/4 inch thick metal or wood doors. The device is designed for use in hollow metal frames and is ideal for applications requiring panic devices and exit alarms. For building professionals and knowledgeable homeowners, the Von Duprin RX-7847EO-626-48-ALK KIT stands out as a top choice for reliable exit security solutions.

KIT - Alarmed (Requires 1-1/4in Mortise Cylinder), CVR (Concealed Vertical Rods) Exit Device, RX (Request to Exit Switch), No Trim, 48in x Up to 96in, No Dogging, Grade 1, 626/US26D Satin Chrome

The 7847 concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. These are certified to ANSI/BHMA A156.3 2014, grade 1.

Features:

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs, and finishes
• Available in 3' and 4' lengths that are field sizeable for single and double door applications

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Device lengths:
• 3': 2' 6" to 3' (762mm to 914mm) door size
• 4': 3' to 4' (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16" (1011mm)
• 39-11/16" (1008mm) with mullion
• Center Case: 7-7/8" x 2-3/4" x 2-3/8" (200mm x 70mm x 60mm)
• Mechanism Case: 2-5/16" x 2-1/8" (59mm x 54mm)
• Projection:
• Pushbar neutral - 3-13/16" (97mm)
• Pushbar depressed - 3-1/16" (78mm)
• Latch bolt: Deadlocking, 5/8" (15.875mm) throw
• Pushbar length:
• 3': 18" (457mm)
• 4': 24" (610mm)
• Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Alarm exit kit
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes:
• 338: Top—Unfinished
• 385A: Bottom—Unfinished

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, dummy trim
• Pull when dogged (not recommended for fire device)
• LNL: Lever, night latch
• Key retracts latch bolt
• 1-1/4" mortise cylinder
• Handed, reversible lever
• LBE: Lever, blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever - blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 626 - Satin chrome
• 628 - Anodized aluminum
• 630 - Satin stainless steel
• 643e - Aged bronze
• 710 - Duranodic dark bronze
