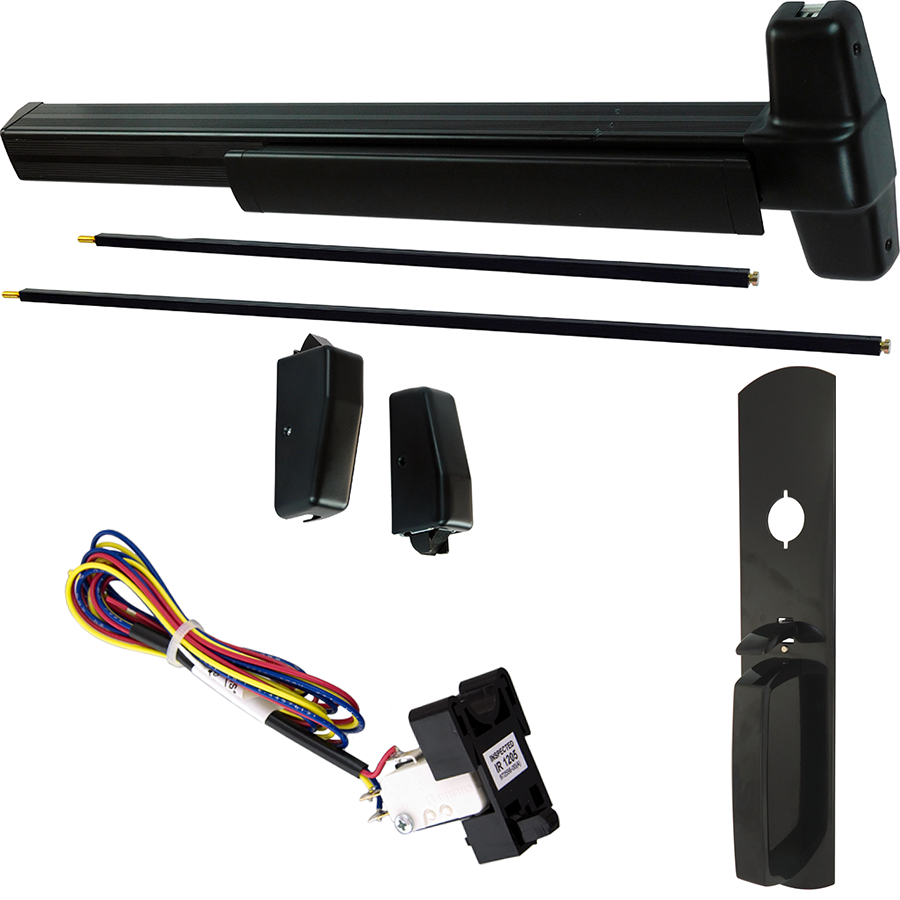

Von Duprin RX-9927TP-711-48 KIT - RX Request to Exit Switch, SVR Grooved Exit Device, 990TP Trim, Flat Black

Von Duprin RX-9927TP-711-48 KIT is a robust and versatile solution designed for both single and double doors, providing a secure exit option while meeting the highest industry standards. This electrified panic device features a Request to Exit (RX) switch and a Surface Vertical Rod (SVR) mechanism, certified to ANSI/BHMA A156.3, Grade 1, ensuring exceptional durability and reliability. With a 48-inch width and a flat black finish, the RX-9927 is aesthetically pleasing while offering functional excellence. Its smooth mechanism case and grooved exit device accommodate standard hollow metal doors with 86 or 161 cutouts. The device provides flexible operation with field-selectable functionalities, including thumbpiece trim and various mechanical and electrified options tailored to your needs. The deadlocking anti-friction latch bolt, with a 5/8" throw, enhances security, while the option for extension rods makes it compatible with taller doors. Additionally, the hex key dogging feature allows easy operation for high-traffic areas. This exit device not only ensures safety but also enhances accessibility, making it an ideal choice for commercial spaces and public buildings. Equip your doors with the Von Duprin RX-9927TP-711-48 KIT for reliable performance and peace of mind in emergency situations.

KIT - RX (Request to Exit Switch), SVR (Surface Vertical Rod) Grooved Exit Device, 990TP Thumb Piece Trim, 48in x 84in, Grade 1, 711/US19 Flat Black

9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case. The surface vertical rod device is non-handed except when the following device options are used: SD (special dogging), SS (signal switch) or WS (tornado/hurricane). Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2’ - 2’ (610 mm) Door size.
• 3’ - 2’ 4" to 3’ (711mm to 914mm) Door size.
• 4’ - 2’ 10" to 4’ (864mm to 1219mm) Door size.
• Device Centerline from Finished Floor: 39-5⁄8" (1006 mm).
• Center Case: 8" x 2-3⁄4" x 2-3⁄8" (203mm x 70mm x 60mm).
• Mechanism Case: 2-1⁄4" x 2-1⁄4" (57mm x 57mm).
• Projection:
• Push bar neutral – 3-13⁄16" (97mm).
• Push bar depressed – 3-1⁄16" (78mm).
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16mm) throw.
• Door Undercut: 1⁄4" (7mm) recommended.
• Top and Bottom Latch Case: 4-1⁄2" x 2-1⁄8" x 1-1⁄2" (114mm x 54mm x 38mm).
• Vertical Rods:
• 1⁄2" square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16" (887mm).
• Bottom rod length: 31-1⁄2" (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
• Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4" (44mm) to 2-1⁄4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX :Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• WS: Tornado and hurricane tested
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• LD: Less dogging
• DI: Dogging indicator
• CI: Cylinder dogging indicator
• Strikes:
• Top – 299 – Dull black
• Bottom – 248L4 and 304L – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 625 - Bright chrome
• 626/626AM - Satin chrome (antimicrobial)
• 628 - Aluminum, anodized
• 710 - Dark brown, anodized
• 711 - Flat black
• 643E - Aged bronze
