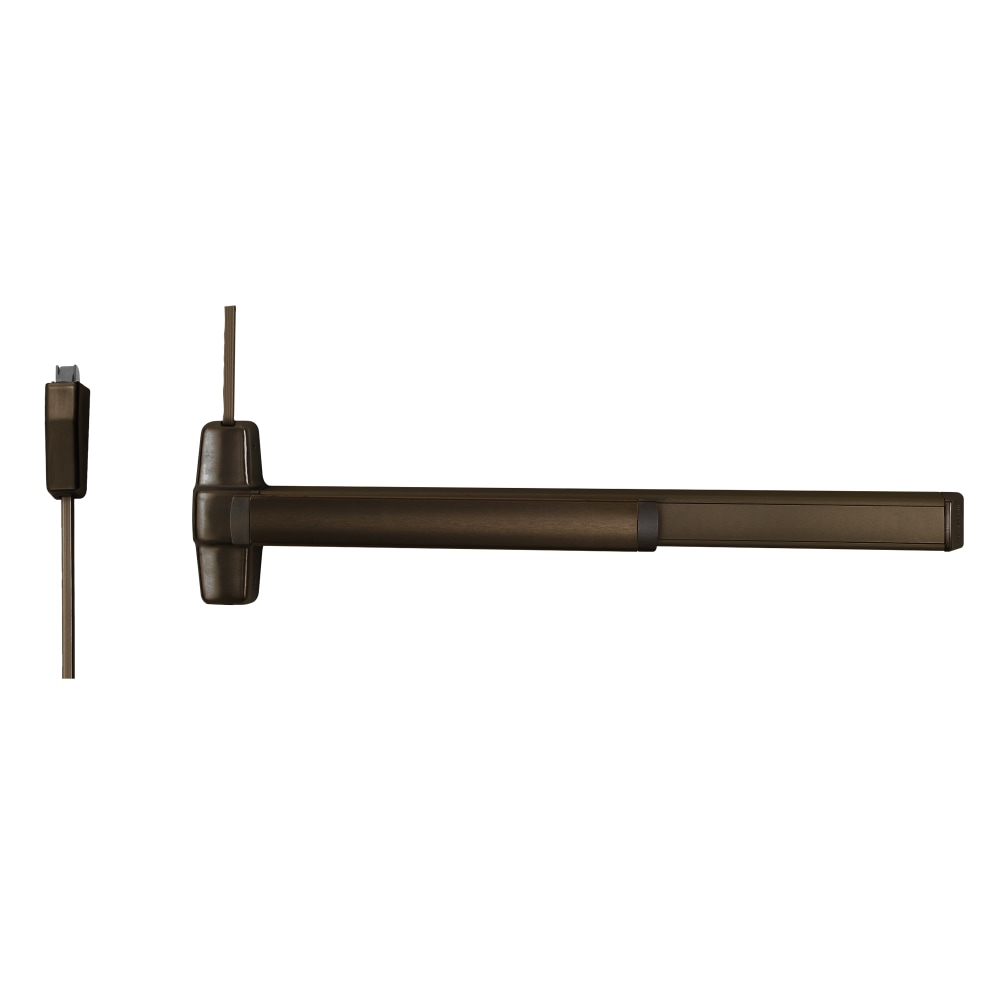

Von Duprin RX9827EO-F 3 313 LBR Grade 1 SVR Exit Device 710 offers a reliable solution for emergency egress in commercial settings. This Grade 1 surface vertical rod exit device is designed for both single and double doors, featuring a robust wide stile pushpad that ensures ease of use. With a fire-rated device length of 36 inches and compatibility with 84-inch doors, it provides secure exit options while meeting stringent UL and ANSI/BHMA A156.3 standards, making it an ideal choice for high-traffic areas. Engineered with versatility in mind, the RX9827EO-F is field reversible and accommodates doors with a minimum stile size of 3-11/16 inches. The device includes a deadlocking anti-friction latch bolt with a 5/8-inch throw, ensuring maximum security when engaged. Notably, it features a request to exit switch and ships less trim and bottom rod, allowing for customized installation. The dark bronze anodized aluminum finish adds an appealing aesthetic while enhancing durability. With a limited three-year warranty, this exit device promises reliability and peace of mind. Ideal for various door materials and thicknesses, the Von Duprin RX9827EO-F is an essential component for ensuring safety and compliance in commercial environments.
Grade 1 SVR Exit Device 710
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Fire-rated Device, 84" Door Height, Exit Only, Less trim, Less Bottom Rod, Request to Exit Switch, Less Dogging, Dark Bronze Anodized Aluminum Finish, Field Reversible
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Covers stock hollow metal doors with 86 or 161 cutouts.
9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
Ansi: A156.3 2014, Grade 1
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36"
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84"
Door Material: All Types
Door Thickness: 1-3/4"
Door Width: 28" - 36"
Finish: 313
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Mechanical Options: Less Bottom Rod
Minimum Stile Size: 3-11/16"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Restrictions: None
Reversible: Yes
Series: 9827 Series Surface Vertical Rod Exit Device
Ship Weight: 16 lbs.
Subtype: Surface Vertical Rod Exit Devices
Switch Type: Request to Exit
Top Strike: 499F
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
