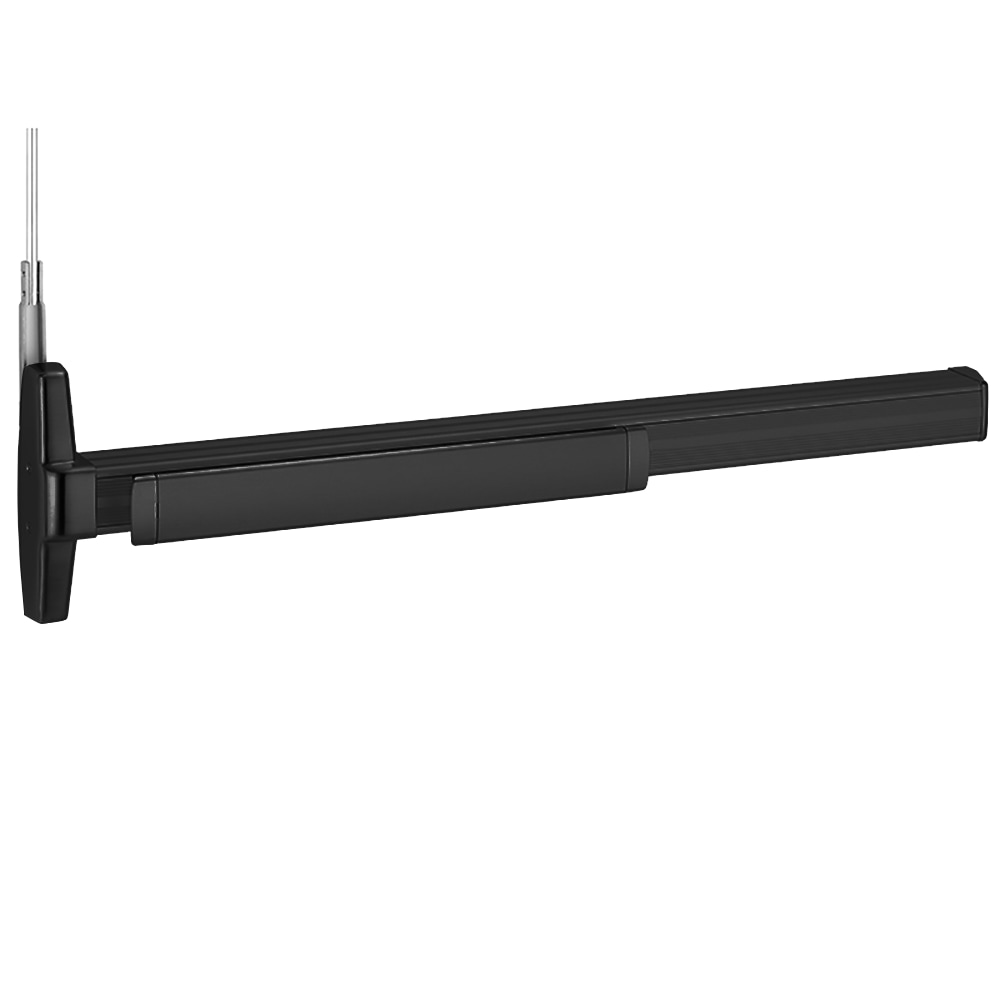

Von Duprin RXEL3347AEO-F 3 315 LBR Grade 1 Narrow CVR Exit Device 711

Von Duprin RXEL3347AEO-F 3 315 LBR Grade 1 Narrow CVR Exit 711 is a top-tier exit device designed for both commercial and residential applications, offering exceptional performance and security. This Grade 1 concealed vertical rod exit device features a narrow stile pushpad and is exit only, ensuring streamlined access in high-traffic areas. The electric latch retraction and request to exit functionality enhance safety and convenience. With a sleek black anodized aluminum finish, this model fits door stiles as narrow as 2-1/8 inches (44 mm) and is suitable for wood doors with stiles as narrow as 4 inches (102 mm). It is UL listed for panic exit hardware and complies with ANSI A156.3 – 2001 Grade 1 standards, ensuring reliability in emergency situations. The device includes adjustable vertical rods and has a deadlocking anti-friction latch bolt with a 5/8-inch (16 mm) throw, providing robust security. Designed for doors ranging from 28 inches to 36 inches wide, the RXEL3347AEO-F is non-handed and versatile, making it an excellent choice for any setup. With a 3-year limited warranty, you can trust in its durability and performance. Enhance your building’s safety with this essential exit device from Von Duprin.

Grade 1 Narrow CVR Exit 711

Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, Exit Only, Less Trim, 36", Less Dogging, Electric Latch Retraction, Request to Exit, Less Bottom Rod, Black Anodized Aluminum Finish, Non-Handed

3347A and 3547A for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2001 Grade 1. The 3547A has a smooth mechanism case and the 3347A has grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used. See opposite page for available outside trim and device functions.

3347A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm).

3347A is for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2001 Grade 1 and the 3347A has a grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used.

Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size

Device centerline from finished floor: 39 13/16" (1006mm)

Center case dimensions: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)

Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)

Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)

Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8" (16mm) throw

Door undercut: 1 /4" (7mm)

Top & bottom latch: 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm)

Vertical rods: Round 2 piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm) Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm) Extension rod kits available for doors over 8'4" (2533mm)

Fasteners & sex bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
