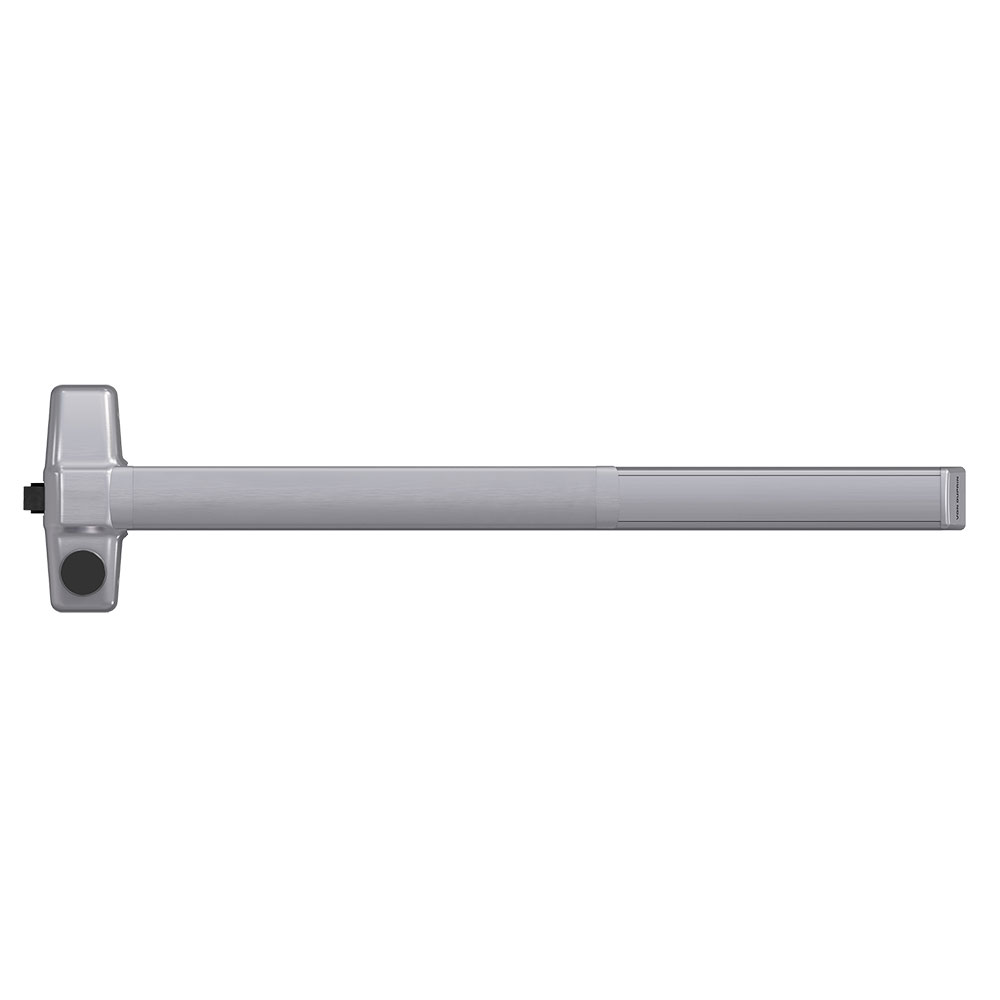

Von Duprin SDEL98EO 3 26D LHR Grade 1 Rim Exit Device 626 offers a robust solution for secure and efficient exits in commercial settings. This Grade 1 rim exit device, measuring 36 inches in length, is designed for exit-only applications with special dogging features and electric latch retraction, ensuring reliable performance in high-traffic areas. Finished in a sleek satin chrome (626) and configured for left-hand reverse installations, it complements various door materials, including wood and metal. Built to meet the rigorous ANSI A156.3 Grade 1 standards, the SDEL98EO is UL listed for panic exit hardware, making it an ideal choice for environments such as schools, hospitals, and government buildings. Its heavy-duty construction and wide stile pushpad enhance user experience while ensuring longevity. Additional specifications include a deadlocking latch bolt with a 3/4-inch throw, compatibility with doors ranging from 28 to 36 inches wide, and a centerline height of 39 13/16 inches from the finished floor. The device is designed for doors with a thickness of 1-3/4 to 2-1/4 inches, offering flexibility for various installations. Trust in Von Duprin's expertise for your exit hardware needs, providing safety and functionality in one reliable device.
Grade 1 Rim Exit Device 626
Grade 1 Rim Exit Device, 36" Length, Exit Only, Special Dogging, Electric Latch Retraction, Satin Chrome Finish, Left-Hand Reverse
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin's 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Specifications:
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36"
Device Type: Rim
Dogging Options: Special Dogging
Door Material: Wood or Metal
Door Thickness: 1-3/4" to 2-1/4"
Door Width: 28" to 36"
Electric Options: Electric Latch Retraction
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Left-Hand Reverse
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only
Minimum Stile Size: 4-1/2"
Origin: USA
Pack Height: 10.5"
Pack Height 2: 11.75"
Pack Length: 37"
Pack Length 2: 41"
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5"
Pack Width 2: 16"
Physical Appearance: Wide Stile Pushpad
Product Height: 8"
Product Length: 33"
Product Width: 3.75"
Reversible: No
Series: 98 Series Rim Exit Device
Ship Weight: 14 lbs.
Strike Standard: 299
Subtype: Rim Exit Devices
Trim Design: Blank Plate
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
