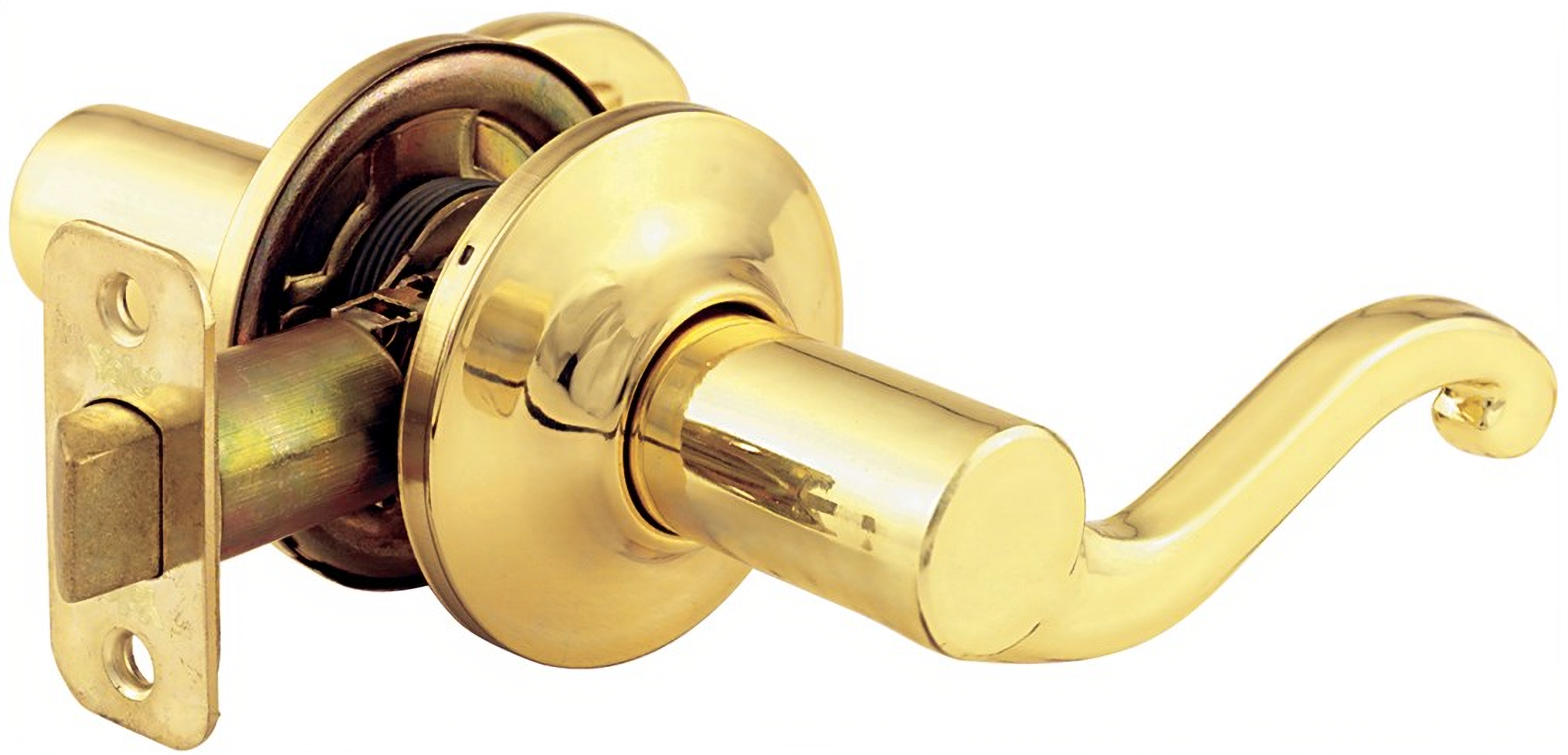

Yale 101 SL 605-ISO Savannah Passage Lever, RC Adjustable Backset 2-3/8in - 2-3/4in, Grade 3, Brass

Yale Residential 101 SL 605-ISO Passage Lever – Savannah, RC Adjustable Backset 2-3/8in - 2-3/4in, Grade 3, Polished Brass 605/US3 combines elegance with robust functionality. Crafted within the New Traditions line, this passage lever showcases a refined design that features natural curves, ensuring comfort and ease of use. Built on a sturdy steel ANSI/BHMA Grade 3 chassis, it guarantees durability and long-lasting performance. This lever is designed for effortless installation, thanks to its Quick-Install system, which incorporates a square spindle and pre-installed mounting screws. The concealed screws provide a sleek, modern appearance, while the solid brass cylinder assembly enhances security. The 101 SL lever is compatible with a range of door thicknesses between 1-3/8" and 1-3/4" and supports an adjustable backset of either 2-3/8" or 2-3/4". With a heavy-duty shroud that adds anti-pry security and a four-wound spring chassis that eliminates lever sag, this product is both reliable and aesthetically pleasing. The Savannah style lever is available in a polished brass finish, making it a timeless addition to any residential setting. Backed by a 3-year mechanical warranty, the Yale 101 SL Passage Lever is a smart choice for those seeking quality and style in their door hardware.

Passage Lever - Savannah, RC Adjustable Backset 2-3/8in - 2-3/4in, Grade 3, Polished Brass 605/US3

New traditions from Yale outstanding strength, durability and simple, elegant designs highlighted by natural curves for comfort and ease of turning. All new traditions products are built on a steel ANSI/BHMA grade 3 chassis and feature concealed holding screws and solid brass cylinder assemblies. In addition, all new traditions products feature Quick-Install, a unique chassis design, which drastically reduces installation time.

Features:

• ANSI/BHMA Certified grade 2
• Available in 9 distinctive finishes
• Easy install mounting system – square spindle simplifies installation - knobs, levers
• Pre-installed mounting screws
• Concealed mounting screws – clean upgraded look
• Available KW-1, SC-1 keyway
• E1R (Para) keyway available for deadbolts and levers only
• Push button locking – panic-free egress
• Solid brass key cylinder and housing
• Removable lever/knob and rosettes – allows for easy scratch-free installation
• Front removable deadbolt cylinder – premier series
• Heavy-duty shroud – added anti-pry security
• Four-wound spring chassis – heavy-duty feel, eliminates lever sag
• Warranty - 3-year mechanical and 1-year finish when used in commercial, institutional or industrial applications

Specifications:

• Door Specs:
• 2-1/8" Face bore
• 1" Edge bore
• 2 3/8"or 2 3/4" Backset
• Latch: 2 3/8" to 2 3/4" RC (round corner)
• Door Thickness: 1-3/8" to 1-3/4"
• Cylinder: 5-Pin cylinder, KW-1 compatible, SC-1, PARA optional
• Keying: KD (keyed different), KA3 (keyed alike
• Faceplate: 1" W x 2 1/4" H, RC (round corner)
• Strike: 2-1/4" Full Lip, RC (round corner)
• Certified: A156.2 Series 4000, grade 3

Lever Selection:

• ML: Mesa
• NL: Niagara
• PL: Prairie
• SL: Savannah
• WL: Woodland
• VI: Vidalia

Lever Functions:

• 81: Dummy
• 101: Passage
• 161: One sided w/plate
• 201: Privacy
• 221: Bath - Privacy with US26 interior finish
• 701: Entry Knob/Lever
• 771: Entry Lever/Lever
• 74LC: Entry SFIC

Finishes:

• 605/US3 - Bright brass
• 609/US5 - Satin brass, blackened, satin relieved, clear coated
• 613e/US10BP - Dark oxidized satin bronze, permanent
• 619/US15 - Satin nickel plated, clear coated
• 620/US15A - Satin nickel plated, blackened, satin relieved, clear coated
• 625/US26 - Bright chrome plated
• 626/US26D - Satin chrome plated

Resources

• Cut Sheet
