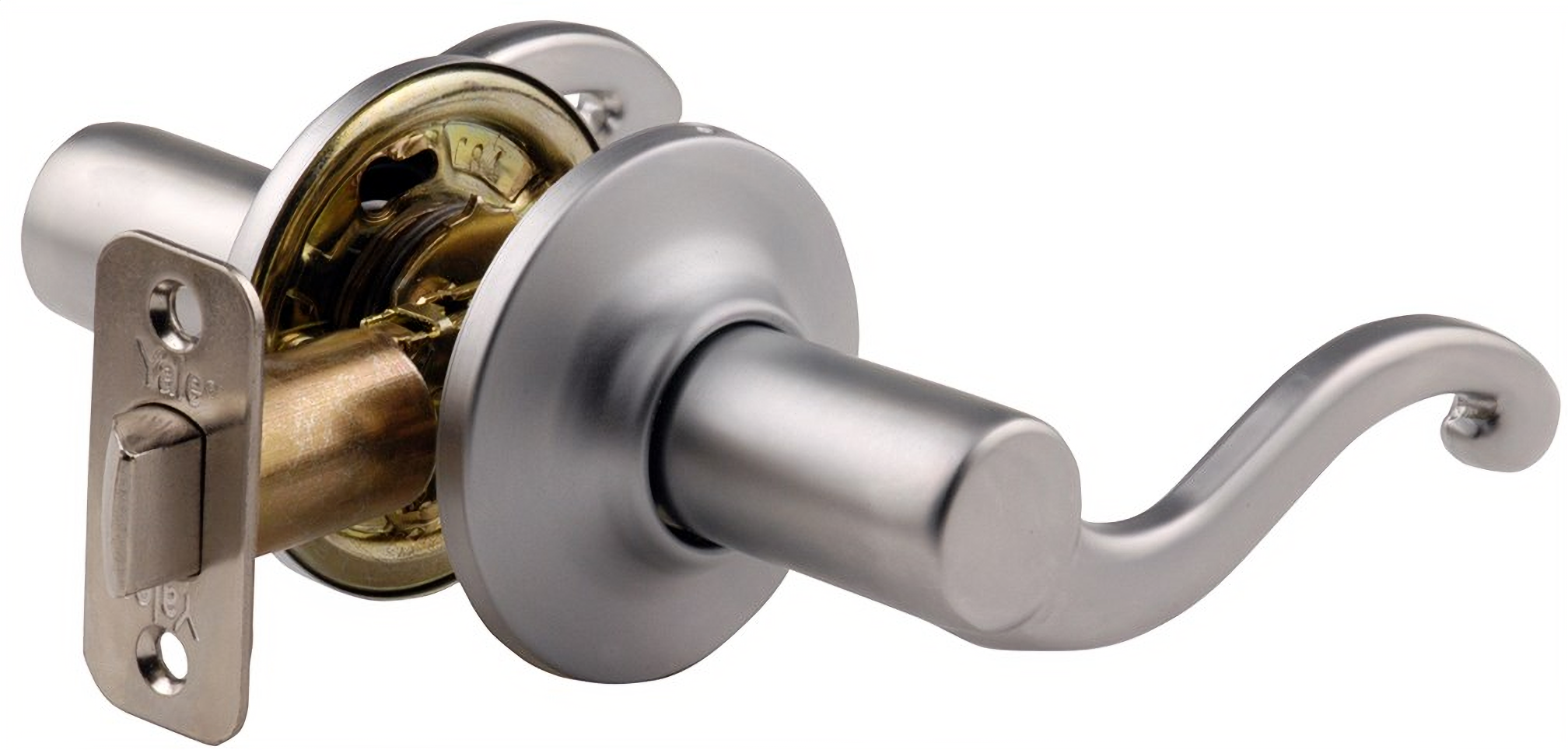

Yale 101 SL 619-ISO Savannah Passage Lever, RC Adjustable Backset 2-3/8in - 2-3/4in, Satin Nickel

Yale Residential 101 SL 619-ISO Passage Lever – Savannah combines functionality with elegant design, making it an ideal choice for residential applications. Crafted with a robust steel ANSI/BHMA grade 3 chassis, this lever is not only aesthetically pleasing but also built to withstand everyday use. The satin nickel finish adds a touch of sophistication while ensuring durability. Featuring a Quick-Install design, the Yale 101 SL lever allows for easy mounting with pre-installed screws and a square spindle system that simplifies the installation process. It accommodates standard door thicknesses of 1-3/8 inches to 1-3/4 inches and supports adjustable backsets of either 2-3/8 inches or 2-3/4 inches. The concealed holding screws provide a clean, modern look, while the solid brass key cylinder offers reliable security. This passage lever is perfect for interior doors where privacy is not a concern, allowing for seamless movement between rooms. With a heavy-duty spring chassis that eliminates lever sag, you can expect a smooth operation every time. The 101 SL lever is backed by a 3-year mechanical warranty and a 1-year finish warranty when used in commercial, institutional, or industrial settings, ensuring peace of mind with your purchase. Upgrade your doors with Yale Residential's trusted craftsmanship and style.

Passage Lever - Savannah, RC Adjustable Backset 2-3/8in - 2-3/4in, Grade 3, Satin Nickel 619/US15

New traditions from Yale outstanding strength, durability and simple, elegant designs highlighted by natural curves for comfort and ease of turning. All new traditions products are built on a steel ANSI/BHMA grade 3 chassis and feature concealed holding screws and solid brass cylinder assemblies. In addition, all new traditions products feature Quick-Install, a unique chassis design, which drastically reduces installation time.

Features:

• ANSI/BHMA Certified grade 2
• Available in 9 distinctive finishes
• Easy install mounting system – square spindle simplifies installation - knobs, levers
• Pre-installed mounting screws
• Concealed mounting screws – clean upgraded look
• Available KW-1, SC-1 keyway
• E1R (Para) keyway available for deadbolts and levers only
• Push button locking – panic-free egress
• Solid brass key cylinder and housing
• Removable lever/knob and rosettes – allows for easy scratch-free installation
• Front removable deadbolt cylinder – premier series
• Heavy-duty shroud – added anti-pry security
• Four-wound spring chassis – heavy-duty feel, eliminates lever sag
• Warranty - 3-year mechanical and 1-year finish when used in commercial, institutional or industrial applications

Specifications:

• Door Specs:
• 2-1/8" Face bore
• 1" Edge bore
• 2 3/8"or 2 3/4" Backset
• Latch: 2 3/8" to 2 3/4" RC (round corner)
• Door Thickness: 1-3/8" to 1-3/4"
• Cylinder: 5-Pin cylinder, KW-1 compatible, SC-1, PARA optional
• Keying: KD (keyed different), KA3 (keyed alike
• Faceplate: 1" W x 2 1/4" H, RC (round corner)
• Strike: 2-1/4" Full Lip, RC (round corner)
• Certified: A156.2 Series 4000, grade 3

Lever Selection:

• ML: Mesa
• NL: Niagara
• PL: Prairie
• SL: Savannah
• WL: Woodland
• VI: Vidalia

Lever Functions:

• 81: Dummy
• 101: Passage
• 161: One sided w/plate
• 201: Privacy
• 221: Bath - Privacy with US26 interior finish
• 701: Entry Knob/Lever
• 771: Entry Lever/Lever
• 74LC: Entry SFIC

Finishes:

• 605/US3 - Bright brass
• 609/US5 - Satin brass, blackened, satin relieved, clear coated
• 613e/US10BP - Dark oxidized satin bronze, permanent
• 619/US15 - Satin nickel plated, clear coated
• 620/US15A - Satin nickel plated, blackened, satin relieved, clear coated
• 625/US26 - Bright chrome plated
• 626/US26D - Satin chrome plated

Resources

• Cut Sheet
