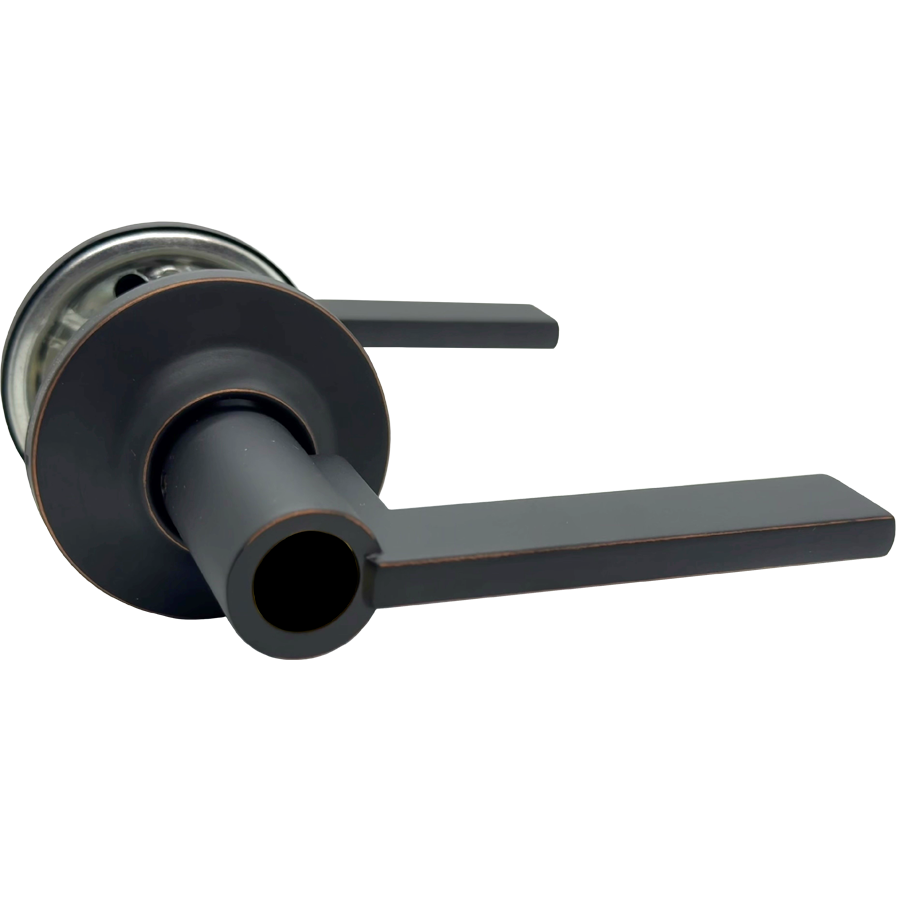

Yale 201 VI 10BP-ISO Vidalia Privacy Lever, RC Adjustable Backset 2-3/8in - 2-3/4in, Oil Rubbed Bronze

Yale Residential 201 VI 10BP-ISO Privacy Lever - Vidalia offers an exquisite blend of style and functionality, making it a perfect choice for any residential space. This lever lock features an adjustable backset of 2-3/8 inches to 2-3/4 inches, ensuring compatibility with a variety of door thicknesses ranging from 1-3/8 inches to 1-3/4 inches. Crafted with a Grade 3 ANSI/BHMA certified chassis, this lock guarantees strength and durability. The elegant Vidalia design, finished in Oil Rubbed Bronze (613/US10BP), adds a touch of sophistication while providing a clean look with concealed mounting screws. Its Quick-Install feature simplifies the installation process, saving valuable time. The solid brass key cylinder and housing enhance security, while the heavy-duty shroud offers additional anti-pry protection. With a push button locking mechanism, users can enjoy panic-free egress, making it ideal for bathrooms and other privacy areas. This lever also boasts a four-wound spring chassis, ensuring a reliable and sag-free operation. The Yale Residential 201 VI 10BP-ISO lever is backed by a three-year mechanical warranty, assuring long-lasting performance, making it a smart investment for discerning homeowners and building professionals alike.

Privacy Lever - Vidalia, RC Adjustable Backset 2-3/8in - 2-3/4in, Grade 3, Oil Rubbed Bronze 613/US10BP

New Traditions from Yale outstanding strength, durability and simple, elegant designs highlighted by natural curves for comfort and ease of turning. All new traditions products are built on a steel ANSI/BHMA grade 3 chassis and feature concealed holding screws and solid brass cylinder assemblies. In addition, all new traditions products feature Quick-Install, a unique chassis design, which drastically reduces installation time.

Features:

• ANSI/BHMA Certified grade 2
• Available in 9 distinctive finishes
• Easy install mounting system – square spindle simplifies installation - knobs, levers
• Pre-installed mounting screws
• Concealed mounting screws – clean upgraded look
• Available KW-1, SC-1 keyway
• E1R (Para) keyway available for deadbolts and levers only
• Push button locking – panic-free egress
• Solid brass key cylinder and housing
• Removable lever/knob and rosettes – allows for easy scratch-free installation
• Front removable deadbolt cylinder – premier series
• Heavy-duty shroud – added anti-pry security
• Four-wound spring chassis – heavy-duty feel, eliminates lever sag
• Warranty - 3-year mechanical and 1-year finish when used in commercial, institutional or industrial applications

Specifications:

• Door Specs:
• 2-1/8" Face bore
• 1" Edge bore
• 2 3/8" or 2 3/4" Backset
• Latch: Adjustable 2 3/8" to 2 3/4" RC (round corner)
• Door Thickness: 1-3/8" to 1-3/4"
• Cylinder: 5-Pin cylinder, KW-1 compatible, SC-1, Para optional
• Keying: KD (keyed different), KA3 (keyed alike
• Faceplate: 1" W x 2 1/4" H, RC (round corner)
• Strike: 2-1/4" Full Lip, RC (round corner)
• Certified: A156.2 Series 4000, grade 3

Lever Designs:

• ML: Mesa
• NL: Niagara
• PL: Prairie
• SL: Savannah
• WL: Woodland
• VI: Vidalia

Functions:

• 81 Dummy
• 101 Passage
• 161 One sided w/plate
• 201 Privacy
• 221 Bath - Privacy with US26 interior finish
• 701 Entry knob/lever
• 771 Entry lever/lever
• 74LC Entry SFIC

Finishes:

• 605/US3 - Bright brass
• 609/US5 - Satin brass, blackened, satin relieved, clear coated
• 613e/US10BP - Dark oxidized Satin Bronze, permanent
• 619/US15 - Satin nickel plated, clear coated
• 620/US15A - Satin nickel plated, blackened, satin relieved, clear coated
• 625/US26 - Bright chrome plated
• 626/US26D - Satin chrome plated

Resources

• Cut Sheet
