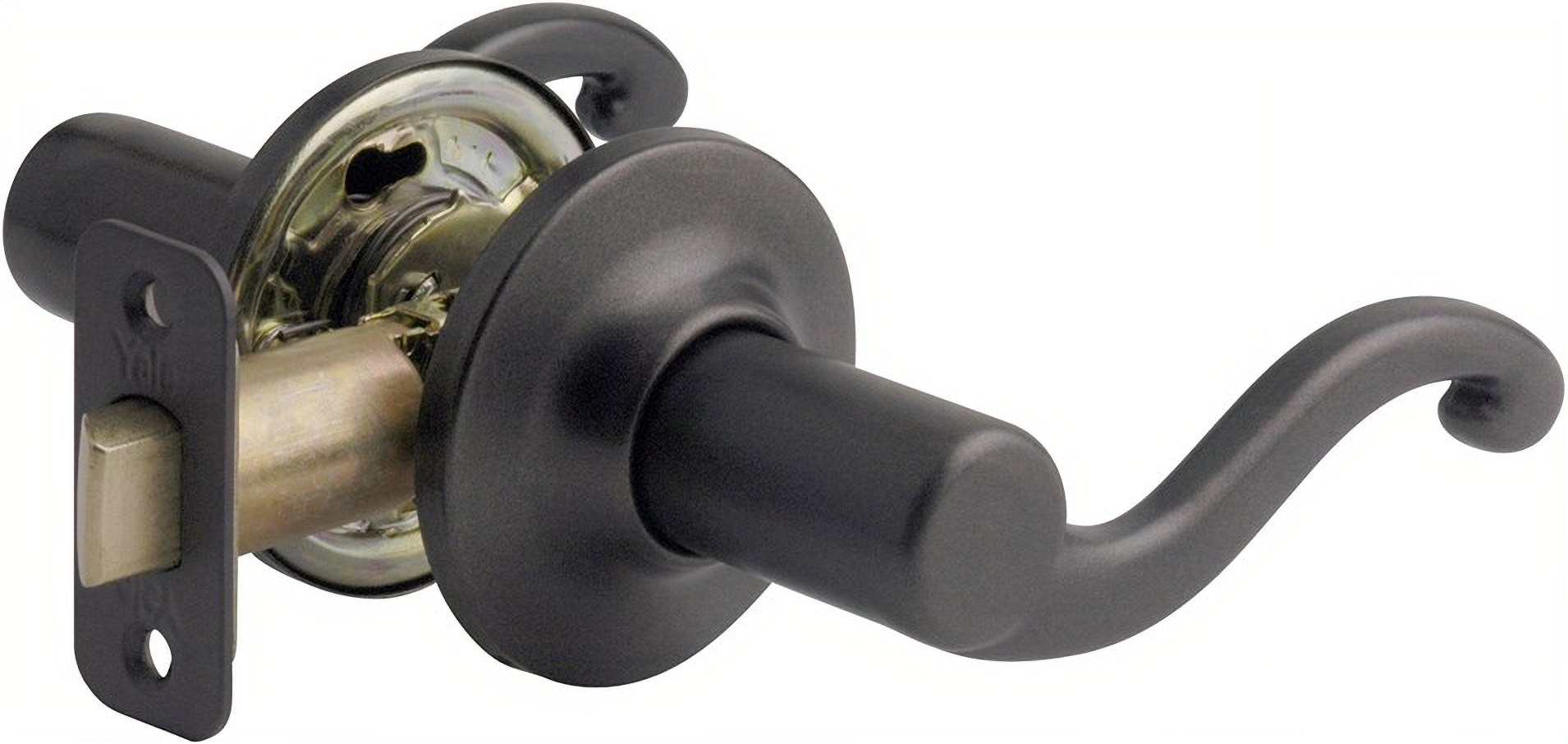

Yale 620 SL 10BP LH-ISO Savannah Interior Trim Lever, Left-Handed Deadbolt, Oil Rubbed Bronze, Grade 3

Yale Residential 620 SL 10BP LH-ISO Interior Trim Lever – Savannah offers a blend of style and security for your home. Designed for left-handed doors, this single cylinder deadbolt features an adjustable backset ranging from 2-3/8 inches to 2-3/4 inches, making it versatile for various door installations. Its oil-rubbed bronze finish (613/US10BP) adds a touch of elegance while ensuring durability. Built on a robust steel ANSI/BHMA grade 3 chassis, this lever lock meets high standards of strength and reliability. The concealed mounting screws not only enhance security but also provide a clean aesthetic appearance. The Quick-Install design significantly reduces installation time, with pre-installed screws simplifying the process. The Savannah lever offers a comfortable grip, making it easy to operate, while the solid brass key cylinder ensures longevity. Additional features include a heavy-duty shroud for anti-pry security, a removable lever for scratch-free installation, and a four-wound spring chassis that eliminates lever sag for consistent performance. This interior trim lever is designed to fit doors with a thickness of 1-3/8 inches to 1-3/4 inches, and it comes with a 3-year mechanical and 1-year finish warranty when used in commercial applications. Trust Yale for security solutions that combine functionality with sophisticated design.

Interior Trim Lever - Savannah, Single Cylinder Deadbolt, Left-Handed, RC Adjustable Backset 2-3/8in - 2-3/4in, Grade 3, Oil Rubbed Bronze 613/US10BP

New traditions from Yale outstanding strength, durability and simple, elegant designs highlighted by natural curves for comfort and ease of turning. All new traditions products are built on a steel ANSI/BHMA grade 3 chassis and feature concealed holding screws and solid brass cylinder assemblies. In addition, all new traditions products feature Quick-Install, a unique chassis design, which drastically reduces installation time.

Features:

• ANSI/BHMA Certified grade 2
• Available in 9 distinctive finishes
• Easy install mounting system – square spindle simplifies installation - knobs, levers
• Pre-installed mounting screws
• Concealed mounting screws – clean upgraded look
• Available KW-1, SC-1 keyway
• E1R (Para) keyway available for deadbolts and levers only
• Push button locking – panic-free egress
• Solid brass key cylinder and housing
• Removable lever/knob and rosettes – allows for easy scratch-free installation
• Front removable deadbolt cylinder – premier series
• Heavy-duty shroud – added anti-pry security
• Four-wound spring chassis – heavy-duty feel, eliminates lever sag
• Warranty - 3-year mechanical and 1-year finish when used in commercial, institutional or industrial applications

Specifications:

• Door Specs:
• 2-1/8" Face bore
• 1" Edge bore
• 2 3/8"or 2 3/4" Backset
• Latch: 2 3/8" to 2 3/4" RC (round corner)
• Door Thickness: 1-3/8" to 1-3/4"
• Cylinder: 5-Pin cylinder, KW-1 compatible, SC-1, PARA optional
• Keying: KD (keyed different), KA3 (keyed alike
• Faceplate: 1" W x 2 1/4" H, RC (round corner)
• Strike: 2-1/4" Full Lip, RC (round corner)
• Certified: A156.2 Series 4000, grade 3

Lever Designs:

• ML: Mesa
• NL: Niagara
• PL: Prairie
• SL: Savannah
• WL: Woodland
• VI: Vidalia

Finishes:

• 605/US3 - Bright brass
• 609/US5 - Satin brass, blackened, satin relieved, clear coated
• 613e/US10BP - Dark oxidized satin bronze, permanent
• 619/US15 - Satin nickel plated, clear coated
• 620/US15A - Satin nickel plated, blackened, satin relieved, clear coated
• 625/US26 - Bright chrome plated
• 626/US26D - Satin chrome plated

Resources

• Cut Sheet
