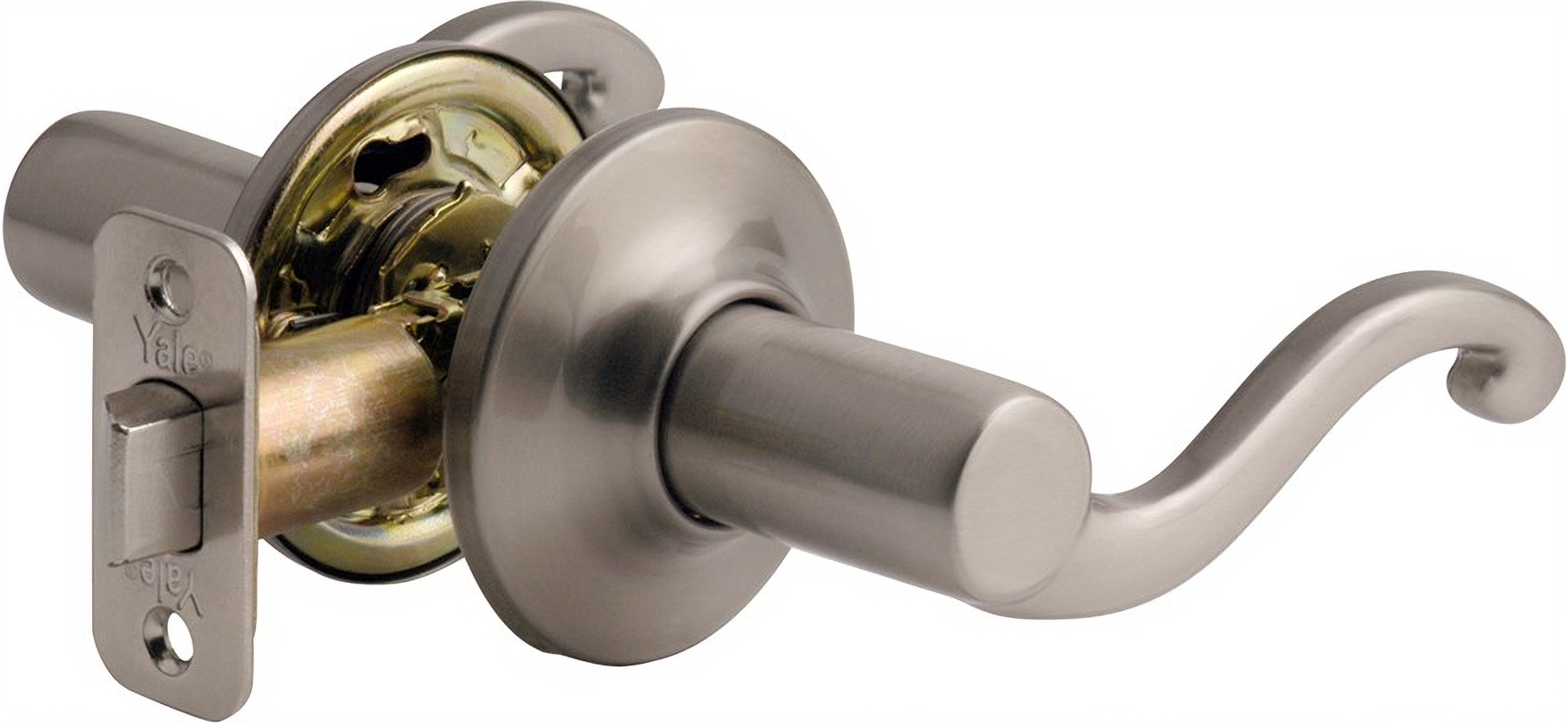

Yale 620 SL 619 RH-ISO Savannah Interior Trim Lever, Single Cylinder Deadbolt, Right-Handed, Satin Nickel

Yale Residential 620 SL 619 RH-ISO Interior Trim Lever combines exceptional strength, durability, and a sophisticated design that is both elegant and functional. This right-handed trim lever, part of the New Traditions series, features a satin nickel finish that complements any interior décor while providing reliable security. Crafted on a robust steel ANSI/BHMA Grade 3 chassis, this lever is designed for easy installation with its Quick-Install mounting system, which includes pre-installed screws and a square spindle for simplified setup. The 2-3/8 inch to 2-3/4 inch adjustable backset and compatibility with standard door thicknesses of 1-3/8 inches to 1-3/4 inches make it versatile for various applications. The solid brass key cylinder and housing ensure longevity, while the concealed mounting screws offer a clean, upgraded look. For added security, the lever includes a heavy-duty shroud to prevent prying and features a removable lever for scratch-free installation. With a 3-year mechanical and 1-year finish warranty, this trim lever guarantees reliability in commercial, institutional, or industrial applications. Yale Residential 620 SL 619 RH-ISO is not just a lock; it’s a blend of style and security, perfect for discerning homeowners and professionals seeking quality hardware solutions.

Interior Trim Lever - Savannah, Single Cylinder Deadbolt, Right-Handed, RC Adjustable Backset 2-3/8in - 2-3/4in, Grade 3, Satin Nickel 619

New traditions from Yale outstanding strength, durability and simple, elegant designs highlighted by natural curves for comfort and ease of turning. All new traditions products are built on a steel ANSI/BHMA grade 3 chassis and feature concealed holding screws and solid brass cylinder assemblies. In addition, all new traditions products feature Quick-Install, a unique chassis design, which drastically reduces installation time.

Features:

• ANSI/BHMA Certified grade 2
• Available in 9 distinctive finishes
• Easy install mounting system – square spindle simplifies installation - knobs, levers
• Pre-installed mounting screws
• Concealed mounting screws – clean upgraded look
• Available KW-1, SC-1 keyway
• E1R (Para) keyway available for deadbolts and levers only
• Push button locking – panic-free egress
• Solid brass key cylinder and housing
• Removable lever/knob and rosettes – allows for easy scratch-free installation
• Front removable deadbolt cylinder – premier series
• Heavy-duty shroud – added anti-pry security
• Four-wound spring chassis – heavy-duty feel, eliminates lever sag
• Warranty - 3-year mechanical and 1-year finish when used in commercial, institutional or industrial applications

Specifications:

• Door Specs:
• 2-1/8" Face bore
• 1" Edge bore
• 2 3/8"or 2 3/4" Backset
• Latch: 2 3/8" to 2 3/4" RC (round corner)
• Door Thickness: 1-3/8" to 1-3/4"
• Cylinder: 5-Pin cylinder, KW-1 compatible, SC-1, PARA optional
• Keying: KD (keyed different), KA3 (keyed alike
• Faceplate: 1" W x 2 1/4" H, RC (round corner)
• Strike: 2-1/4" Full Lip, RC (round corner)
• Certified: A156.2 Series 4000, grade 3

Lever Designs:

• ML: Mesa
• NL: Niagara
• PL: Prairie
• SL: Savannah
• WL: Woodland
• VI: Vidalia

Finishes:

• 605/US3 - Bright brass
• 609/US5 - Satin brass, blackened, satin relieved, clear coated
• 613e/US10BP - Dark oxidized satin bronze, permanent
• 619/US15 - Satin nickel plated, clear coated
• 620/US15A - Satin nickel plated, blackened, satin relieved, clear coated
• 625/US26 - Bright chrome plated
• 626/US26D - Satin chrome plated

Resources

• Cut Sheet
