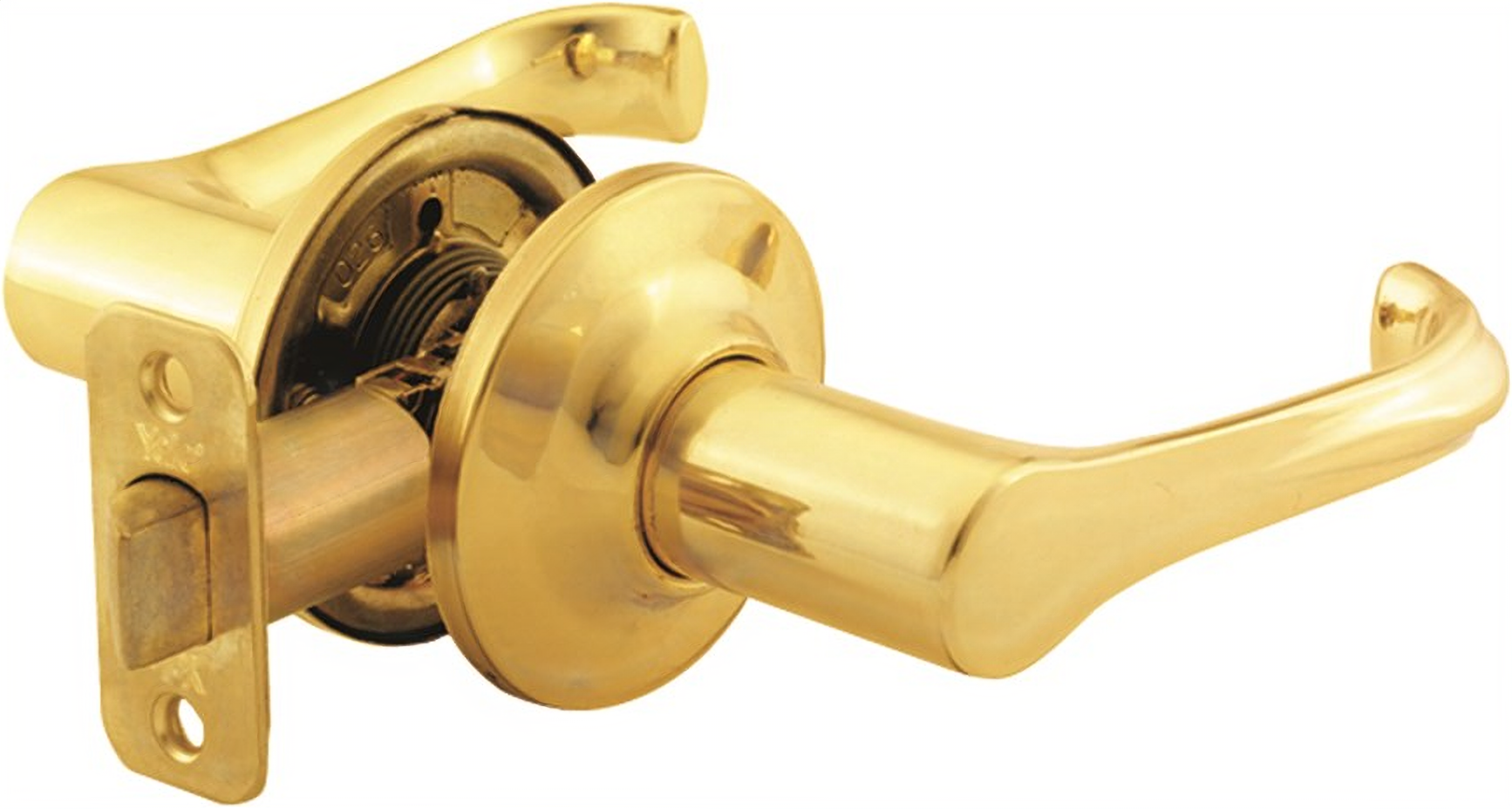

Yale 620 WL 605-ISO Woodland Interior Trim Lever, Single Cylinder Deadbolt, Polished Brass 605

Yale Residential 620 WL 605-ISO Interior Trim Lever is expertly designed to enhance both functionality and aesthetics in your home. This Woodland-style lever is paired with a single cylinder deadbolt, featuring an adjustable backset of 2-3/8 inches to 2-3/4 inches, ensuring compatibility with various door types. Constructed on a robust steel ANSI/BHMA grade 3 chassis, it provides reliable strength and durability for everyday use. The lever’s polished brass finish (605/US3) adds a timeless elegance to any interior, making it a perfect choice for discerning homeowners. The quick-install design simplifies installation with pre-installed mounting screws and a square spindle, allowing for a hassle-free setup. Additionally, the concealed screws contribute to a clean and sophisticated look. Designed for convenience, the Yale 620 WL offers push-button locking for panic-free egress, ensuring you can exit quickly when needed. Its solid brass key cylinder and housing bolster security, while the heavy-duty shroud adds an extra layer of anti-pry protection. Compatible with KW-1 and SC-1 keyways, this interior trim lever is both versatile and secure. With a 3-year mechanical warranty and a 1-year finish warranty in commercial applications, it’s a reliable choice for any residential space.

Interior Trim Lever - Woodland, Single Cylinder Deadbolt, RC Adjustable Backset 2-3/8in - 2-3/4in, Grade 3, Polished Brass 605/US3

New traditions from Yale outstanding strength, durability and simple, elegant designs highlighted by natural curves for comfort and ease of turning. All new traditions products are built on a steel ANSI/BHMA grade 3 chassis and feature concealed holding screws and solid brass cylinder assemblies. In addition, all new traditions products feature Quick-Install, a unique chassis design, which drastically reduces installation time.

Features:

• ANSI/BHMA Certified grade 2
• Available in 9 distinctive finishes
• Easy install mounting system – square spindle simplifies installation - knobs, levers
• Pre-installed mounting screws
• Concealed mounting screws – clean upgraded look
• Available KW-1, SC-1 keyway
• E1R (Para) keyway available for deadbolts and levers only
• Push button locking – panic-free egress
• Solid brass key cylinder and housing
• Removable lever/knob and rosettes – allows for easy scratch-free installation
• Front removable deadbolt cylinder – premier series
• Heavy-duty shroud – added anti-pry security
• Four-wound spring chassis – heavy-duty feel, eliminates lever sag
• Warranty - 3-year mechanical and 1-year finish when used in commercial, institutional or industrial applications

Specifications:

• Door Specs:
• 2-1/8" Face bore
• 1" Edge bore
• 2 3/8"or 2 3/4" Backset
• Latch: 2 3/8" to 2 3/4" RC (round corner)
• Door Thickness: 1-3/8" to 1-3/4"
• Cylinder: 5-Pin cylinder, KW-1 compatible, SC-1, PARA optional
• Keying: KD (keyed different), KA3 (keyed alike
• Faceplate: 1" W x 2 1/4" H, RC (round corner)
• Strike: 2-1/4" Full Lip, RC (round corner)
• Certified: A156.2 Series 4000, grade 3

Lever Designs:

• ML: Mesa
• NL: Niagara
• PL: Prairie
• SL: Savannah
• WL: Woodland
• VI: Vidalia

Finishes:

• 605/US3 - Bright brass
• 609/US5 - Satin brass, blackened, satin relieved, clear coated
• 613e/US10BP - Dark oxidized satin bronze, permanent
• 619/US15 - Satin nickel plated, clear coated
• 620/US15A - Satin nickel plated, blackened, satin relieved, clear coated
• 625/US26 - Bright chrome plated
• 626/US26D - Satin chrome plated

Resources

• Cut Sheet
