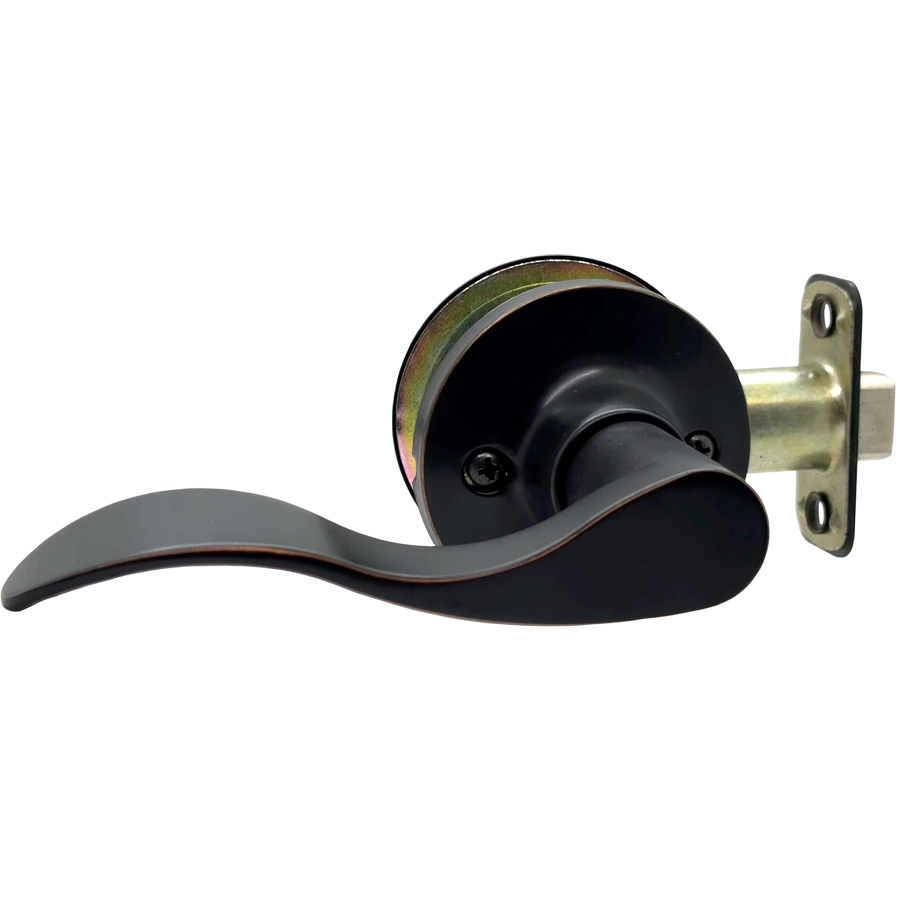

Yale 720YE KW 10BP LH-ISO Keowee Interior Trim Lever, Left-Handed, Single Cylinder Deadbolt, Oil Rubbed Bronze

Yale Residential 720YE KW 10BP LH-ISO Interior Trim Lever - Keowee combines elegance with robust security, making it an ideal choice for modern homes. This left-handed lever is designed for use with a single cylinder deadbolt, featuring an adjustable backset of 2-3/8 inches to 2-3/4 inches. Constructed to meet Grade 3 standards, it provides reliable security without compromising on aesthetics. The 720YE lever allows for easy re-keying thanks to its removable cylinder, eliminating the need for special tools. Its non-handed design simplifies installation and reduces inventory requirements, making it a smart choice for builders and contractors. With a beautiful oil-rubbed bronze finish, this lever enhances the allure of any entryway. Built for doors with a thickness of 1 3/8 inches to 1 3/4 inches, this lever features a 2 1/8-inch face bore and a 1-inch edge bore. The latch prep is designed with a round corner, ensuring a seamless fit. Additionally, it comes with a 1-year finish warranty and a 5-year mechanical warranty, providing peace of mind. Yale’s Edge Series offers contemporary designs tailored for today’s housing market, making the 720YE KW 10BP LH-ISO an essential addition to any residential project.

Interior Trim Lever - Keowee, Single Cylinder Deadbolt, Left-Handed, RC Adjustable Backset 2-3/8in - 2-3/4in, Grade 3, Oil Rubbed Bronze 613/US10BP

Edge series offers attractive designs and finishes to meet the needs of today’s housing market. All Yale edge series product is constructed to meet grade 3 standards. Designed to fulfill the needs of the hardware market in attractive styles and current popular finishes. Whether your project includes townhomes, condos, garden homes, or a single family home, look no further than Yale edge series to fulfill your door hardware needs with the Yale brand.

Features:

• Designed to meet grade 3 standards for value and security
• Removable cylinder for ease of re-keying without special tools
• Non-handed levers lowers inventory needs, minimizes mistakes
• Warranty: 1 year finish / 5 year mechanical
• ADA: Selection of lever styles available with push button to meet ADA requirements

Specifications:

• Door Specs:
• 2 1/8in Face Bore
• 1in Edge Bore
• 2 3/8in or 2 3/4in Backset
• Latch Prep: 1in x 2 1/4in RC (round corner)
• Latch: RC Adjustable only for 2 3/8" or 2 3/4" backset
• Door Thickness: 1 3/8" to 1 3/4" (includes handleset)
• Cylinder: 5 Pin cylinder (KW-1 compatible)
• Keying: KA5
• Faceplate: 1" W x 2 1/4" H RC (round corner)
• Strike: Knob/lever 2 1/4" full lip RC (round corner) deadbolt 1 x 2 1/4" RC (round corner)

Lever Designs:

• AL: Alpharetta/lever
• KW: Keowee/lever
• AT: Athens/knob
• SN: Sinclair/knob

Knob/Lever Functions:

• 80/81: Dummy
• 10/11: Passage
• 20/21: Privacy
• 70/71: Entry
• 23: Privacy ADA
• 73: Entry ADA

Finishes:

• 605/US3 - Bright brass
• 613e/US10BP - Dark oxidized satin bronze, permanent
• 619/US15 - Satin nickel plated, clear coated
• 630/US32D - Satin stainless steel

Resources

• Cut Sheet
