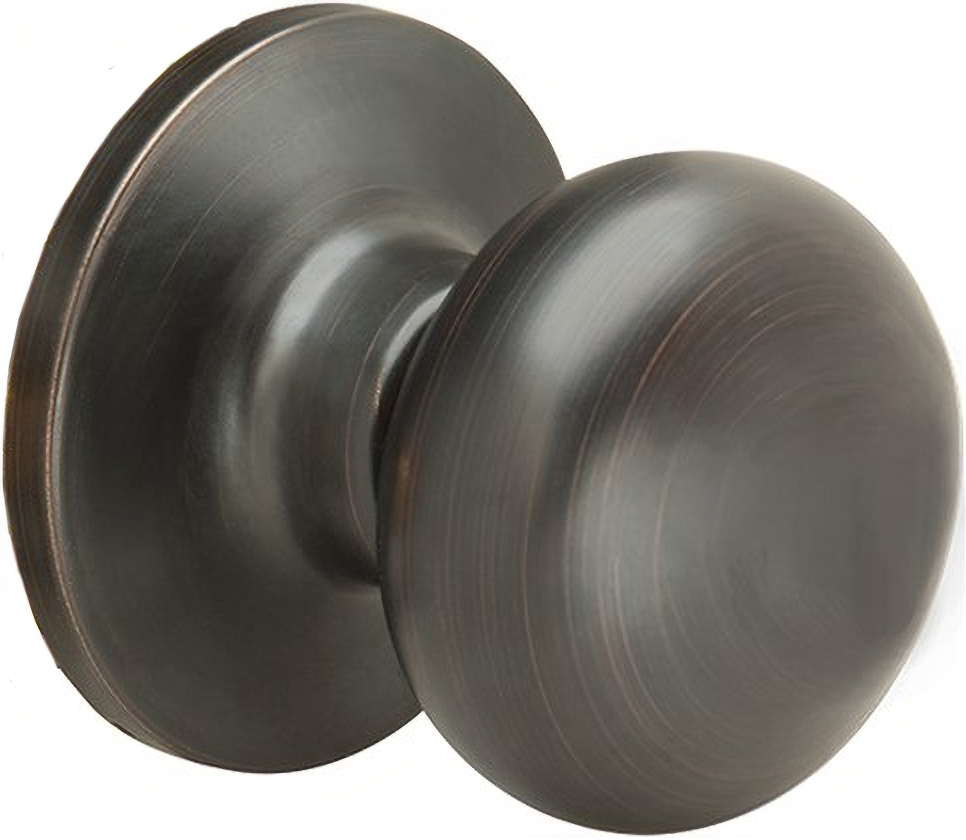

Yale 720YE SN 10BP-ISO Sinclair Interior Trim Knob, Single Cylinder Deadbolt, Grade 3, Oil Rubbed Bronze

Yale Residential 720YE SN 10BP-ISO Interior Trim Knob - Sinclair is an exemplary choice for homeowners seeking both security and style. With its Grade 3 rating, this product offers reliable protection without compromising on aesthetics. The Sinclair knob design adds a touch of elegance, making it suitable for a variety of settings, including townhomes, condos, and single-family residences. This deadbolt features an adjustable backset that accommodates both 2-3/8 inch and 2-3/4 inch installations, allowing for versatile application across different door types. Its non-handed lever design simplifies installation, reducing the likelihood of mistakes, which is a boon for building professionals and DIY enthusiasts alike. Additionally, the removable cylinder facilitates easy re-keying without the need for special tools. Constructed with a 2-1/8 inch face bore and compatible with standard door thicknesses ranging from 1-3/8 inches to 1-3/4 inches, the Yale 720YE SN 10BP-ISO provides a seamless fit for most residential doors. The oil-rubbed bronze finish not only enhances durability but also complements modern and traditional décor alike. With a one-year finish warranty and a five-year mechanical warranty, you can trust this product for long-lasting performance. Upgrade your home's security with the reliable and stylish Yale Residential 720YE SN 10BP-ISO.

Interior Trim Knob - Sinclair, Single Cylinder Deadbolt, RC Adjustable Backset 2-3/8in - 2-3/4in, Grade 3, Oil Rubbed Bronze 613/US10BP

Edge series offers attractive designs and finishes to meet the needs of today’s housing market. All Yale edge series product is constructed to meet grade 3 standards. Designed to fulfill the needs of the hardware market in attractive styles and current popular finishes. Whether your project includes townhomes, condos, garden homes, or a single family home, look no further than Yale edge series to fulfill your door hardware needs with the Yale brand.

Features:

• Designed to meet grade 3 standards for value and security
• Removable cylinder for ease of re-keying without special tools
• Non-handed levers lowers inventory needs, minimizes mistakes
• Warranty: 1 year finish / 5 year mechanical
• ADA: Selection of lever styles available with push button to meet ADA requirements

Specifications:

• Door Specs:
• 2 1/8in Face Bore
• 1in Edge Bore
• 2 3/8in or 2 3/4in Backset
• Latch Prep: 1in x 2 1/4in RC (round corner)
• Latch: RC Adjustable only for 2 3/8" or 2 3/4" backset
• Door Thickness: 1 3/8" to 1 3/4" (includes handleset)
• Cylinder: 5 Pin cylinder (KW-1 compatible)
• Keying: KA5
• Faceplate: 1" W x 2 1/4" H RC (round corner)
• Strike: Knob/lever 2 1/4" full lip RC (round corner) deadbolt 1 x 2 1/4" RC (round corner)

Lever Designs:

• AL: Alpharetta/lever
• KW: Keowee/lever
• AT: Athens/knob
• SN: Sinclair/knob

Knob/Lever Functions:

• 80/81: Dummy
• 10/11: Passage
• 20/21: Privacy
• 70/71: Entry
• 23: Privacy ADA
• 73: Entry ADA

Finishes:

• 605/US3 - Bright brass
• 613e/US10BP - Dark oxidized satin bronze, permanent
• 619/US15 - Satin nickel plated, clear coated
• 630/US32D - Satin stainless steel

Resources

• Cut Sheet
